2008 Suzuki AN400 Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

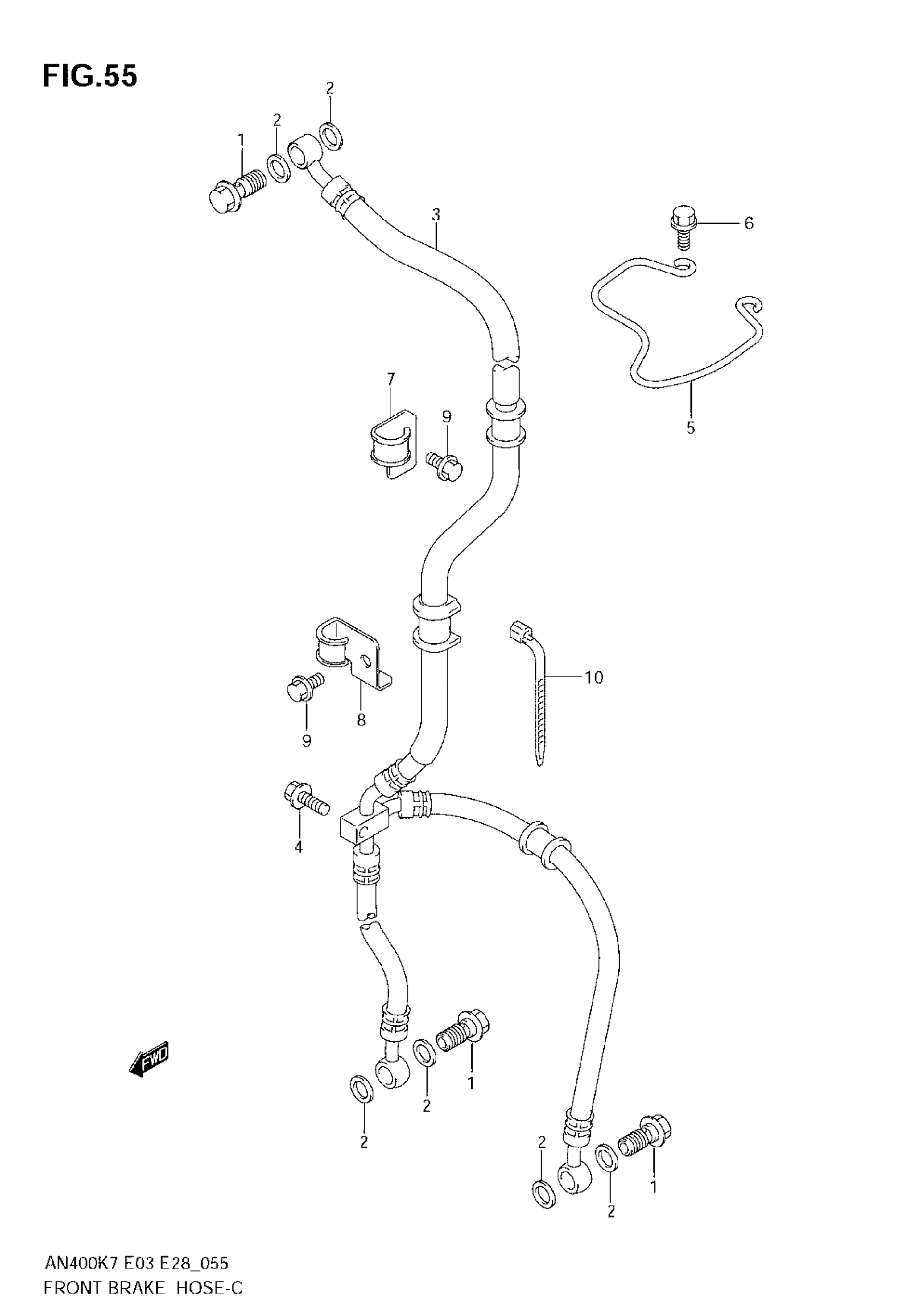

2008 Suzuki AN400 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNION This part replaces 09360-10040-A08.

09360-10062

3
Out of stock

2

WASHER (10X15X1.5)

09161-10009

6
Out of stock

3

HOSE | %F.NO.JS1CK44A072100013 This part replaces 59480-05H00.

59480-05H21

1
Out of stock

3

HOSE | F.NO.JS1CK44A072100014% This part replaces 59480-05H10.

59480-05H21

1
Out of stock

3

HOSE | MODEL K8 This part replaces 59480-05H20.

59480-05H21

1
Out of stock

4

BOLT, FRONT BRAKE HOSE

01547-0625A

1
Out of stock

5

GUIDE, BRAKE HOSE

59251-05H00

1
Out of stock

6

BOLT, FRONT BRAKE HOSE GUIDE

01550-0612A

2
Out of stock

7

CLAMP, FRONT BRAKE HOSE NO.1 | %F.NO.JS1CK44A072100013

59261-05H00

—
Out of stock

7

CLAMP, FRONT BRAKE HOSE NO.1 | F.NO.JS1CK44A072100014%

59261-05H10

1
Out of stock

8

CLAMP, FRONT BRAKE HOSE NO.2

59266-35F10

1
Out of stock

9

BOLT, FRONT BRAKE HOSE

01547-0612A

2
Out of stock

10

CLAMP, FRONT BRAKE HOSE

09403-16412

1
Out of stock
