2008 Suzuki AN400 Brake Lock Lever Diagram

← All diagrams

Find the part on the Brake Lock Lever diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

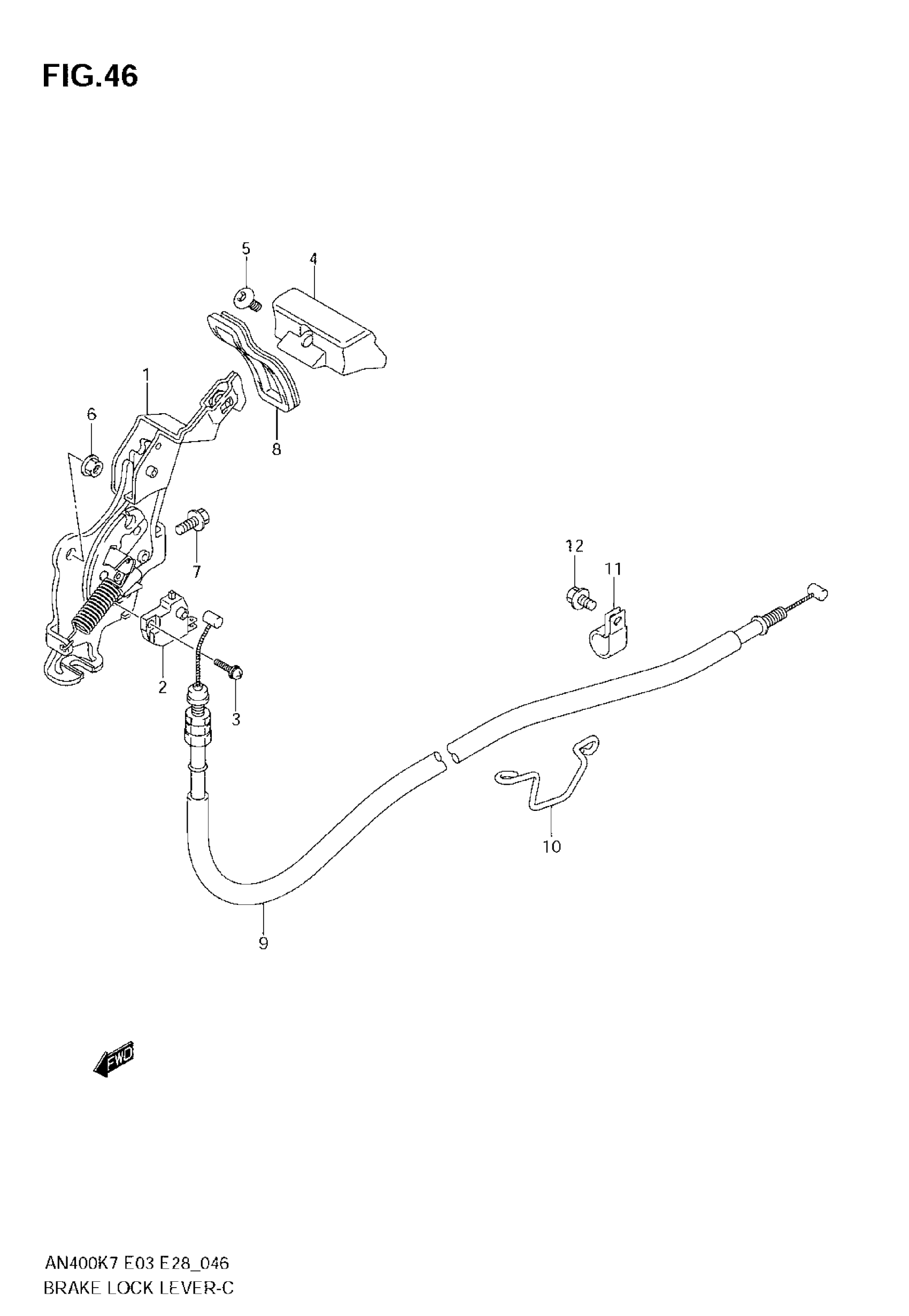

2008 Suzuki AN400 Brake Lock Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER,BRAKE LOCK

57810-05H00

1
Out of stock

2

SWITCH ASSY,BRAKE LOCK This part replaces 57860-05H00.

57860-05H01

1
Out of stock

3

SCREW, SWITCH

57852-10G00

1
Out of stock

4

KNOB,BRAKE LOCK This part replaces 57820-05H01.

57820-05H02

1
Out of stock

5

SCREW, KNOB

09139-05086

1
Out of stock

6

NUT

08316-1006B

1
Out of stock

7

BOLT

01550-0616B

1
Out of stock

8

GROMMET,LEVER SEAL

57951-05H00

1
Out of stock

9

CABLE, BRAKE LOCK

58810-05H00

1
Out of stock

10

GUIDE, CABLE

58621-05H00

1
Out of stock

11

CLAMP

09403-19407

2
Out of stock

12

BOLT

01550-0620A

2
Out of stock
