1971 Suzuki AC50 OIL Pump Diagram

← All diagrams

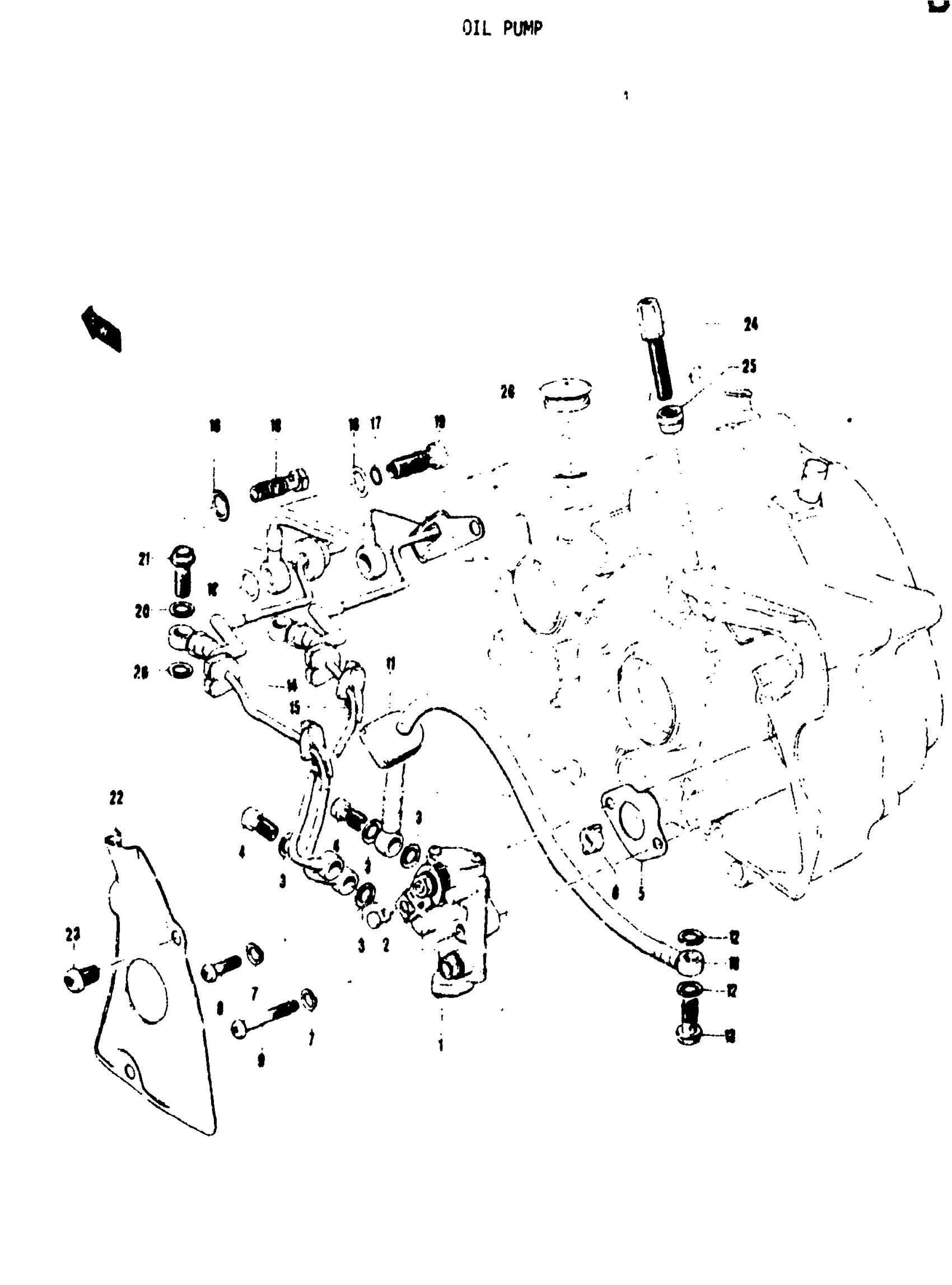

Find the part on the OIL Pump diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki AC50 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASS'Y | Includes Item(s) 2 - 4

16001-05826

—
Out of stock

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

1
Out of stock

3

GASKET | 5 This part replaces 09168-06002.

09168-06004

4
Out of stock

4

UNION BOLT

09360-06005

2
Out of stock

5

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

1
Out of stock

6

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

1
Out of stock

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

8

SCREW This part replaces 02111-05168.

02112-05167

1
Out of stock

9

CROSS HEAD SCREW

02111-05308

—
Out of stock

10

OIL PUMP INLET HOSE

16810-12630

—
Out of stock

11

GROMMET This part replaces 09309-08002.

09309-08015

1
Out of stock

12

GASKET | 5 This part replaces 09168-06002.

09168-06004

2
Out of stock

13

UNION BOLT | 5

09360-06003

1
Out of stock

13

UNION BOLT | 3.5

09360-06005

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 16820-05034.

16820-05035

1
Out of stock

15

NO DESCRIPTION AVAILABLE | 0321 This part replaces 16820-05033.

16820-05040

1
Out of stock

16

GASKET | 5 This part replaces 09168-06002.

09168-06004

2
Out of stock

16

UNION BOLT GASKET | 40321

09168-10005

2
Out of stock

17

CHECK VALVE O RING | .:1.3

09280-08003

1
Out of stock

18

UNION BOLT

09360-06003

1
Out of stock

19

INLET CHECK VALVE | 321

16710-11011

—
Out of stock

20

GASKET This part replaces 09168-06002.

09168-06004

2
Out of stock

21

UNION BOLT | 6

09360-06003

1
Out of stock

21

UNION BOLT | 3.5

09360-06005

1
Out of stock

22

OIL PUMP COVER

11385-26000

1
Out of stock

22

OIL PUMP COVER | 0321

11385-05002

—
Out of stock

23

CROSS HEAD SCREW

02111-06108

—
Out of stock

24

CABLE ADJUSTER

09119-08014

1
Out of stock

25

1

$1.93

In stock
