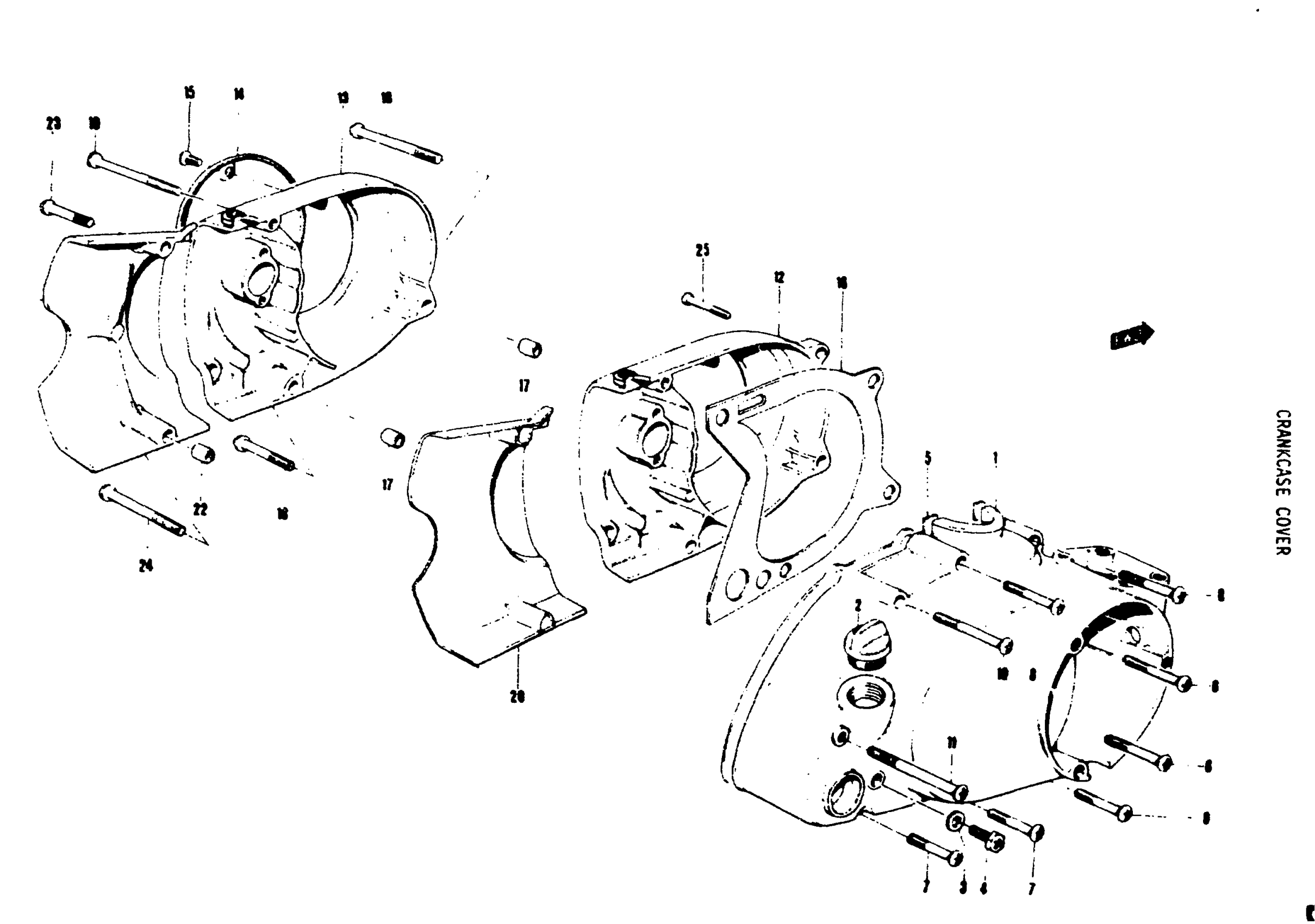

1971 Suzuki AC50 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki AC50 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE RH COVER

11341-05101

—
Out of stock

1

CRANKCASE RH COVER | 321

11341-05100

—
Out of stock

2

PLUG SET This part replaces 09259-20003.

09200-20811

1
Out of stock

3

OIL LEVEL SCREW GASKET

09168-06001

1
Out of stock

4

OIL LEVEL SCREW

09247-06001

—
Out of stock

5

GASKET,CLUTCH C This part replaces 11482-05000.

11482-05010

1
Out of stock

6

SCREW This part replaces 02112-05408.

02112-05407

2
Out of stock

7

SCREW This part replaces 02112-06358.

02112-06357

2
Out of stock

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

3
Out of stock

9

SCREW (6X45) This part replaces 02112-06458.

02112-06457

1
Out of stock

10

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

1
Out of stock

11

SCREW This part replaces 02112-06708.

02112-06707

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 11351-22200.

11351-22201

1
Out of stock

13

CRANKCASE LH COVER | 0321

11351-05100

—
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 11381-05001.

11381-05002

1
Out of stock

15

CROSS HEAD SCREW

02131-05128

—
Out of stock

16

CRANKCASE LH COVER GASKET

11483-26000

1
Out of stock

17

DOWEL PIN

04211-09129

2
Out of stock

18

CROSS HEAD SCREW

02111-06408

—
Out of stock

19

CROSS HEAD SCREW

02111-06558

—
Out of stock

20

ENGINE SPROCKET COVER

11361-22200

—
Out of stock

21

ENGINE SPROCKET COVER | 0321

11361-05000

1
Out of stock

22

DOWEL PIN

04211-09129

1
Out of stock

23

CROSS HEAD SCREW

02111-06308

—
Out of stock

24

CROSS HEAD SCREW

02111-06458

—
Out of stock
