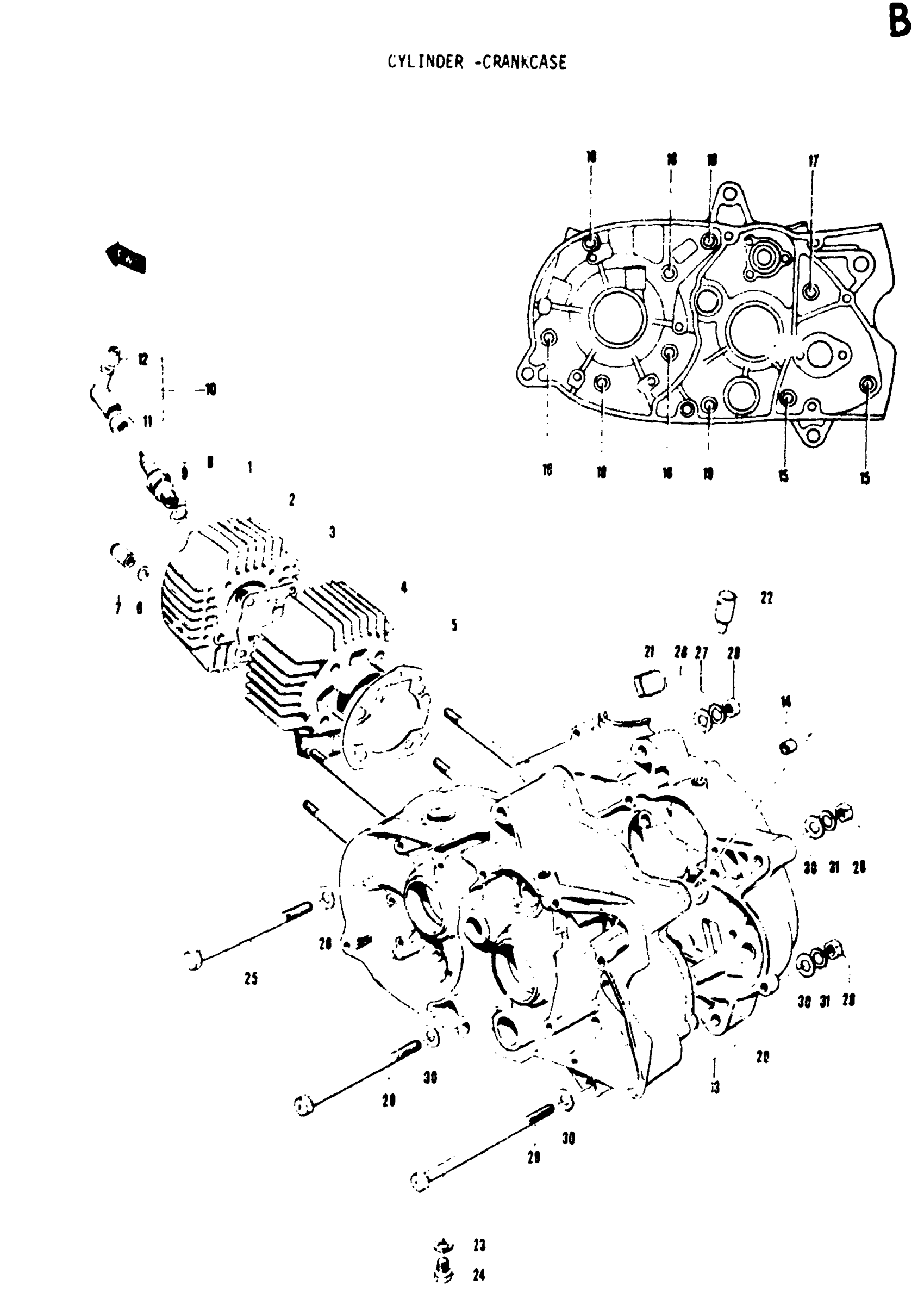

Suzuki AC50 (1971) CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CYLINDER HEAD

11111-05101

Unavailable

2

GASKET, CYLINDER HEAD This part replaces 11141-06101.

11141-06110

$4.75

3

CYLINDER

11211-26000

Unavailable

4

CYLINDER GASKET This part replaces 11241-05001.

11241-19310

Unavailable

5

CYLINDER STUD BOLT

09108-06026

$3.80

5

CYLINDER STUD BOLT | NO.56496 L:112

09108-06012

Unavailable

6

WASHER This part replaces 08322-21068.

08322-01067

$1.86

7

.NUT This part replaces 08311-11068.

08310-00067

$1.83

7

NO DESCRIPTION AVAILABLE | NO.56496 This part replaces 09159-06002.

09159-06002-XC0

Unavailable

8

SPARK PLUG | HC This part replaces 09482-00003.

09482-00082

$2.80

8

SPARK PLUG | S OPT This part replaces 09482-00050.

09482-00082

$2.80

8

SPARK PLUG ASS'Y | , OPT

09482-00016

Unavailable

9

SPARK PLUG GASKET

09168-14002

$2.83

10

PLUG CAP ASS'Y | Includes Item(s) 11 - 12

33501-10801

Unavailable

11

PLUG CAP SEAL

33541-11000

Unavailable

12

HIGH TENSION CORD SEAL

33542-51000

Unavailable

13

CRANKCASE ASS'Y | Includes Item(s) 14 - 20

11300-26801

Unavailable

14

DOWEL PIN

04211-09129

$1.64

15

SCREW This part replaces 02112-06308.

02112-06307

$1.99

16

SCREW This part replaces 02112-06358.

02112-06357

$1.77

17

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.80

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

19

SCREW This part replaces 02112-06658.

02112-06657

$2.64

20

GASKET,CRANKCAS This part replaces 11481-05000.

11481-05010

Unavailable

21

AIR VENT HOSE GROMMET

09250-12002

Unavailable

22

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$10.25

23

DRAIN PLUG GASKET

09168-10002

$1.96

24

DRAIN PLUG

09247-10001

$2.06

25

BOLT | :105 This part replaces 09100-08024.

09100-08228

$7.62

26

WASHER This part replaces 08322-11088.

08322-01087

$1.86

27

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

28

NUT This part replaces 08312-11088.

08310-00087

$1.83

29

ENGINE MOUNTING LOWER BOLT | :110

09100-08026

Unavailable

30

WASHER This part replaces 08322-21088.

08322-01087

$1.86
