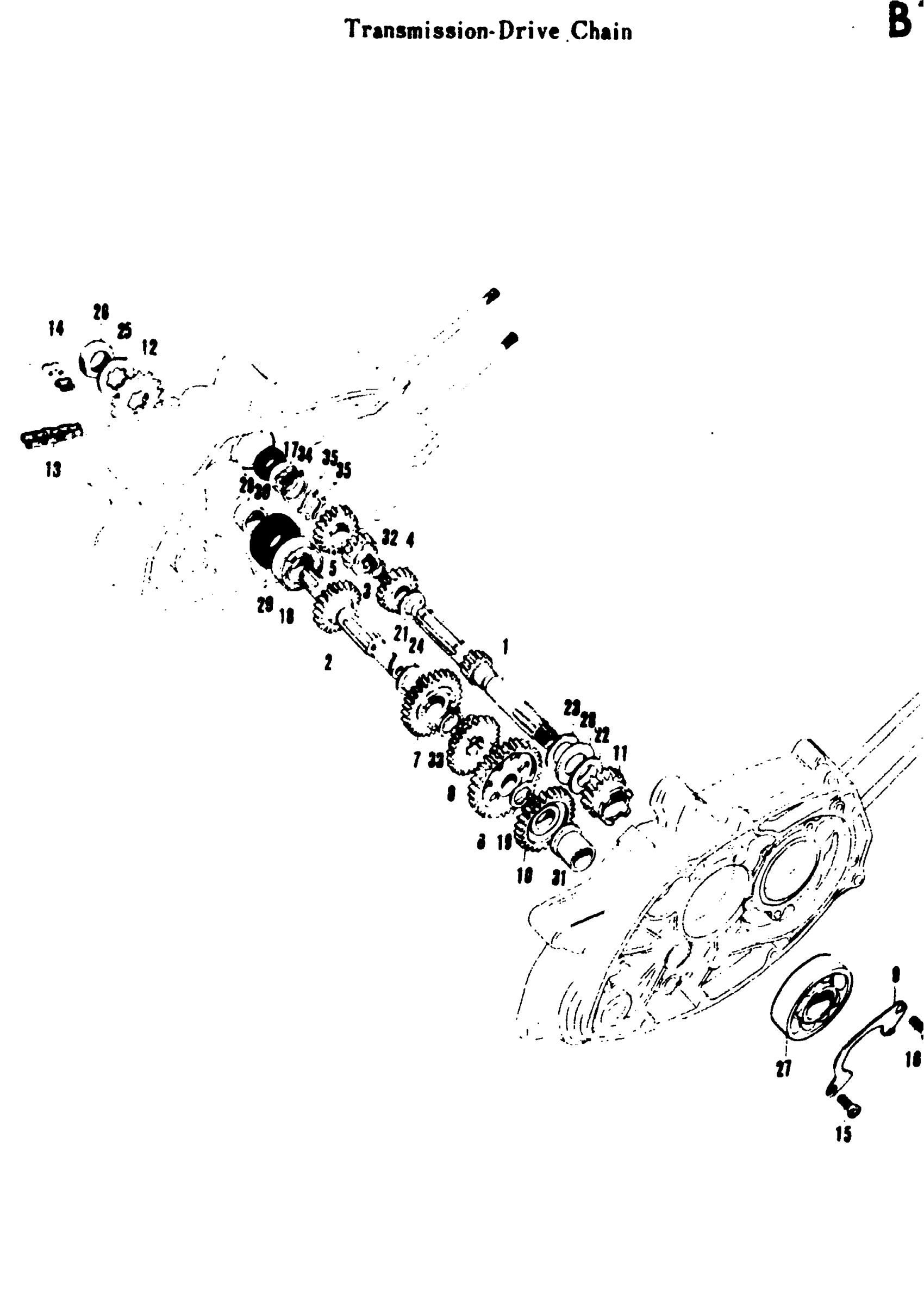

Suzuki A100 (1969) TRANSMISSON-DRIVE CHAIN Diagram

#

Description
Price

1

COUNTER SHAFT | 00; NT=11

24121-12000

Unavailable

2

DRIVE SHAFT | 00; NT=22

24131-07000

Unavailable

3

NO DESCRIPTION AVAILABLE | 00; NT=13 This part replaces 24221-07000.

24221-23001

Unavailable

4

NO DESCRIPTION AVAILABLE | 00; NT=18 This part replaces 24231-07000.

24231-23011

Unavailable

5

NO DESCRIPTION AVAILABLE | 00; NT=20 This part replaces 24241-07000.

24241-07003

Unavailable

6

NO DESCRIPTION AVAILABLE | 00; NT=32 This part replaces 24310-07600.

24310-12021

Unavailable

7

SECOND DRIVEN GEAR | 00; NT=28

24321-07000

Unavailable

8

THIRD DRIVEN GEAR | 100; NT=23

24331-07000

Unavailable

9

COUNTERSHAFT HEARING PLATE | 00

24741-12000

Unavailable

10

KIRK STATER IDLE GEAR | 00; NT=36

26260-12000

Unavailable

11

NO DESCRIPTION AVAILABLE | 00; NT=17 This part replaces 26280-03002.

26280-03003

Unavailable

12

ENGINE SPROCKET | 00; NT=13

27511-08710

Unavailable

13

DRIVE CHAIN ASSY | 28x102L

27600-07610

Unavailable

14

CHAIN JOINT ASS'Y | 28

27620-08011

Unavailable

15

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

16

CROSS HEAD SCREW

02121-06128

Unavailable

17

BEARING (12X28X8) This part replaces 08113-60010.

09262-12001

$18.47

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

20

ENGINE SPROCKET NUT | 00

09140-20001

$3.37

21

THRUST WASHER | 00 ID=17(0.66) OD=23(0.90) This part replaces 09160-17002.

08211-17241

$2.54

22

KICK STARTER DRIVEN GEAR THRU | 00 ID=20(0.78) OD=30(1.18)3)

09160-20005

Unavailable

23

THRUST HEARING SPACER | 00 ID=20(0.78) OD=34.5(1.30.03)

09160-20007

Unavailable

24

SECOND DRIVEN GEAR THRUST WAS | 00 ID=20(0.78) OD=27(1.06)

09160-20009

Unavailable

25

LOCK WASHER | 00 ID=13(0.51) OD=33(1.25) This part replaces 09167-20006.

09167-20009

$2.03

26

ENGINE SPROCKET SPACER | 00 ID=20(0.78) OD=25(1.18)61)

09180-20016

Unavailable

27

BEARING | 00 ID=30(1.18) OD=62(2.44) This part replaces 09262-30002.

09262-30003

Unavailable

28

KICK STARTER DRIVEN GEAR THRU | 00 ID=20(0.78) OD=35(1.38)1)

09263-20002

Unavailable

29

DRIVE SHAFT OIL SEAL | 00 ID=25(0.98) OD=40(1.57)

09283-25003

$6.94

30

SEAL OIL(5.5X16 | 00 ID=5.5(0.21) OD=16(0.621) This part replaces 09285-05004.

09285-05007

$4.47

31

DRIVE SHAFT RUSHING | 00

09319-15002

Unavailable

32

THIRD DRIVE GEAR CIRCLIP | 00

09380-17001

$1.98

33

CIRCLIP | 00 This part replaces 09380-20003.

09380-20007

$2.43

34

TOP DRIVE GEAR CIRELIP | 00

09380-26001

Unavailable
