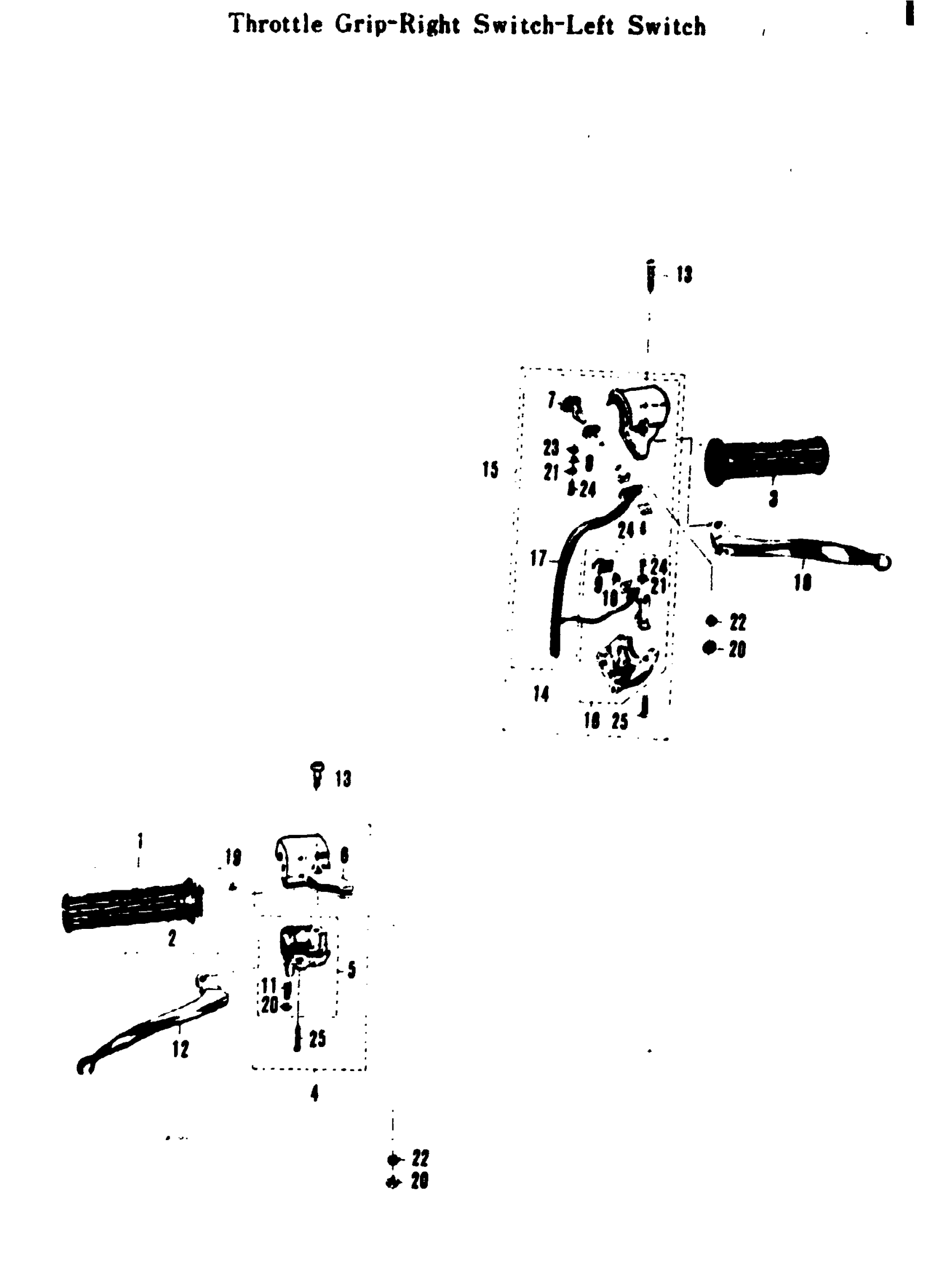

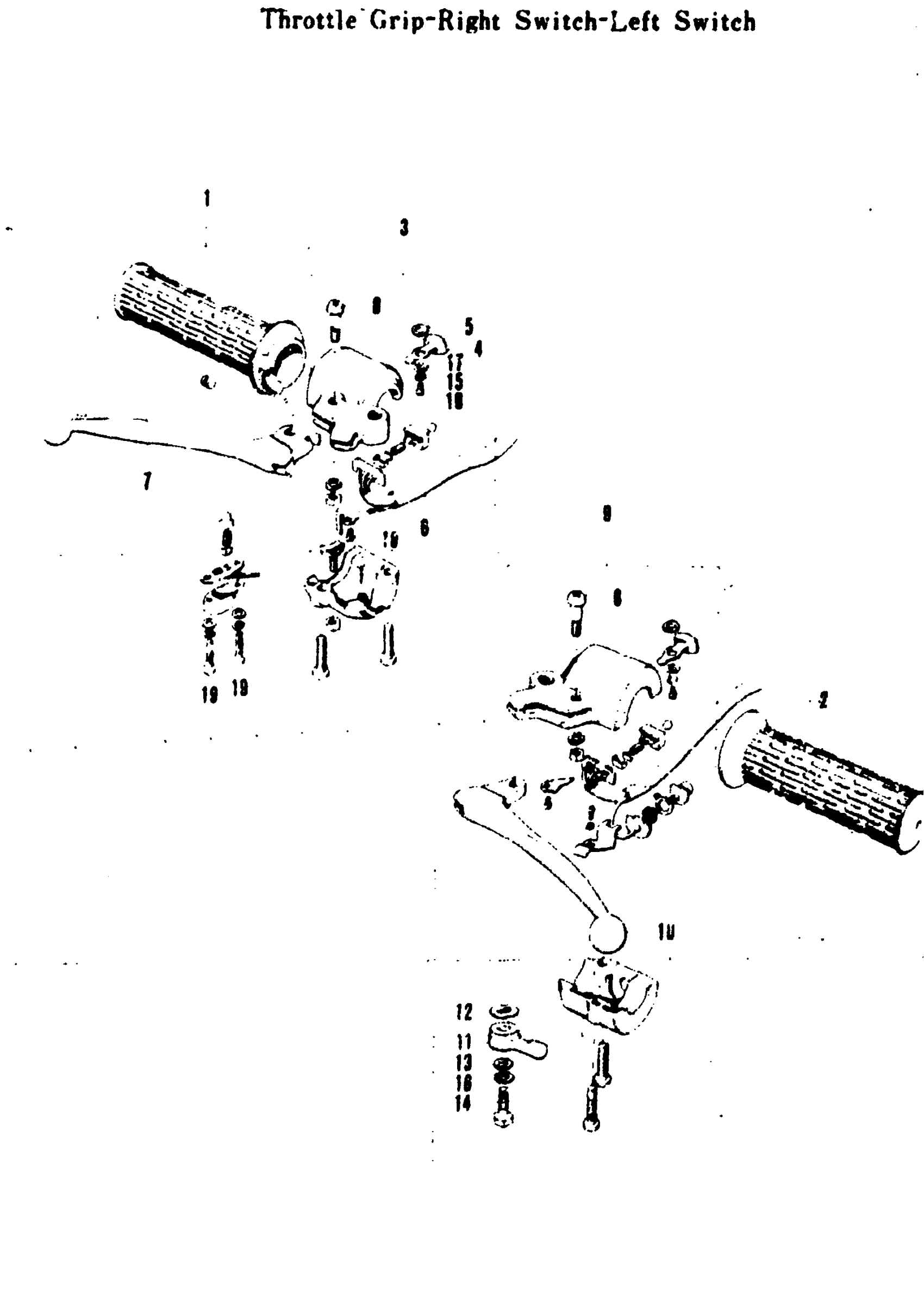

Suzuki A100 (1969) THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-05010.

57110-20601

$19.93

2

THROTTLE GRIP RUBBER

57111-05010

Unavailable

3

LEFT GRIP

57211-05010

Unavailable

4

RIGHT SWITCH ASS'Y

57301-07824

Unavailable

5

RIGHT SWITCH LOWER COVER ASS'

57302-07011

Unavailable

6

RIGHT SWITCH UPPER COVER

57311-07601

Unavailable

7

DIMMER SWITCH KNOB | 100

57320-01011

Unavailable

8

DIMMER SWITCH KNOB SPRING WAS | 100100

57334-01010

Unavailable

9

SWITCH PUSH BUTTON | 100

57370-01311

Unavailable

10

SWITCH PUSH BUTTON SPRING | 100

57382-01311

Unavailable

11

THROTTLE GRIP ADJUSTER | 100; ISO

57390-07011

Unavailable

11

THROTTLE GRIP ADJUSTER | O

57390-07010

Unavailable

12

BRAKE LEVER

57421-05010

Unavailable

13

LEVER PIVOT BOLT | O

57431-07601

Unavailable

13

LEVER PIVOT BOLT

57431-07600

Unavailable

14

LEFT SWITCH COPPER COVER ASS'

57501-03700

Unavailable

15

LEFT SWITCH ASS'Y

57501-07827

Unavailable

16

LEFT SWITCH LOWER COVER ASS'Y

57502-01602

Unavailable

17

LEFT SWITCH WIRING HARNESS | 100

57540-03710

Unavailable

18

CLUTCH LEVER

57621-05010

Unavailable

19

THROTTLE CABLE END PIECE | 100

58631-07010

$3.56

20

NUT This part replaces 08311-11058.

08310-00057

$1.84

20

HEXAGON NUT

08311-11051

Unavailable

21

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER This part replaces 08322-21038.

08322-01037

$1.93

24

3.5 CROSS HEAD SCREW | 100; ISO

09125-03103

Unavailable

24

3.5 CROSS HEAD SCREW

09125-03003

Unavailable

25

SCREW,5X22 | 00; ISO This part replaces 09125-05105.

09125-05105-XC0

$4.10
