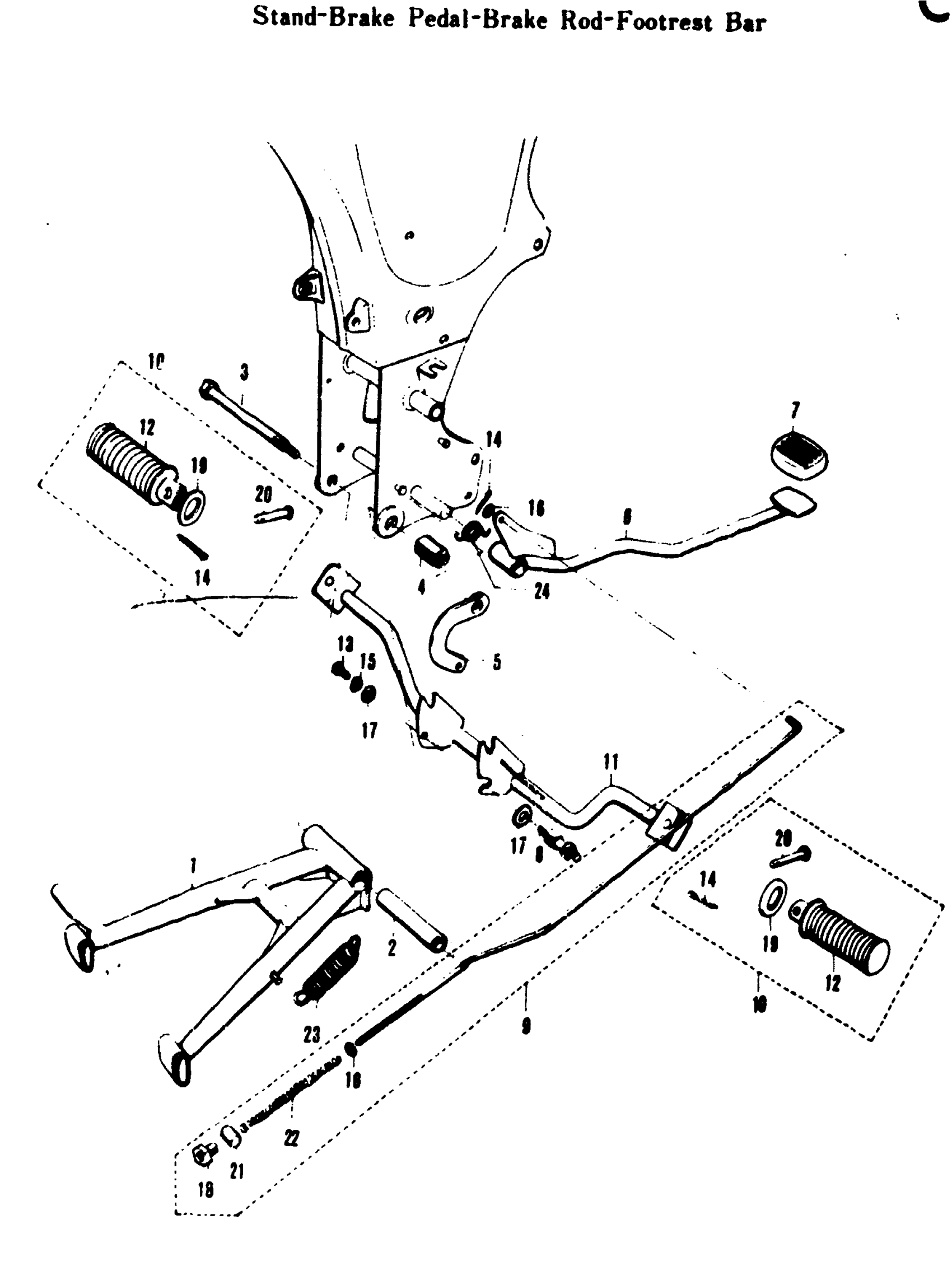

Suzuki A100 (1969) STAND-BRAKE PEDAL-BRAKE ROD-FOOTREST BAR Diagram

#

Description
Price

1

CENTER STAND

42100-05000

Unavailable

2

CENTER STAND SPACER | 00; ID=10.4(0.41) OD=16(04(3.36)

42211-03001

Unavailable

3

NO DESCRIPTION AVAILABLE | 9) This part replaces 42221-03000.

42221-03001

Unavailable

4

CENTER STAND NUT

42231-09000

Unavailable

5

CENTER STAND SPRING HOOK | 00

42250-03001

Unavailable

6

BRAKE PEDAL

43110-12001

Unavailable

7

BRAKE PEDAL RUBBER | 00

43151-01000

Unavailable

8

BRAKE PEDAL STOPPER

43221-03001

Unavailable

9

BRAKE ROD ASS'Y | 00

43300-01003

Unavailable

10

FOLDIN FOOTREST RUBBER ASS'Y | 00

43500-03841

Unavailable

11

FOOTREST BAR

43510-12600

Unavailable

12

FOLDING FOOTREST RUBBER | 00

43550-03600

Unavailable

13

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

14

COTTER PIN

04111-20188

Unavailable

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER This part replaces 08322-21058.

08322-01057

$2.13

17

WASHER This part replaces 08322-21088.

08322-01087

$2.13

18

BRAKE ROD ADJUSTER NUT | 00; ISO

09150-05101

$3.04

18

BRAKE ROD ADJUSTER NUT

09150-05001

Unavailable

19

WASHER | .89) OD=36(1.42) T=2.3( This part replaces 09160-22002.

09160-22033

$3.89

20

FOLDING FOOTREST RUBBER PIN | ) L=35(1.38)

09200-08002

$2.05

21

BRAKE CAM LEVER PIN | 00

09209-10001

$1.49

22

BRAKE ROD ADJUSTER SPRING | 00

09440-09004

$2.20

23

SPRING This part replaces 09443-16002.

09443-16007

Unavailable
