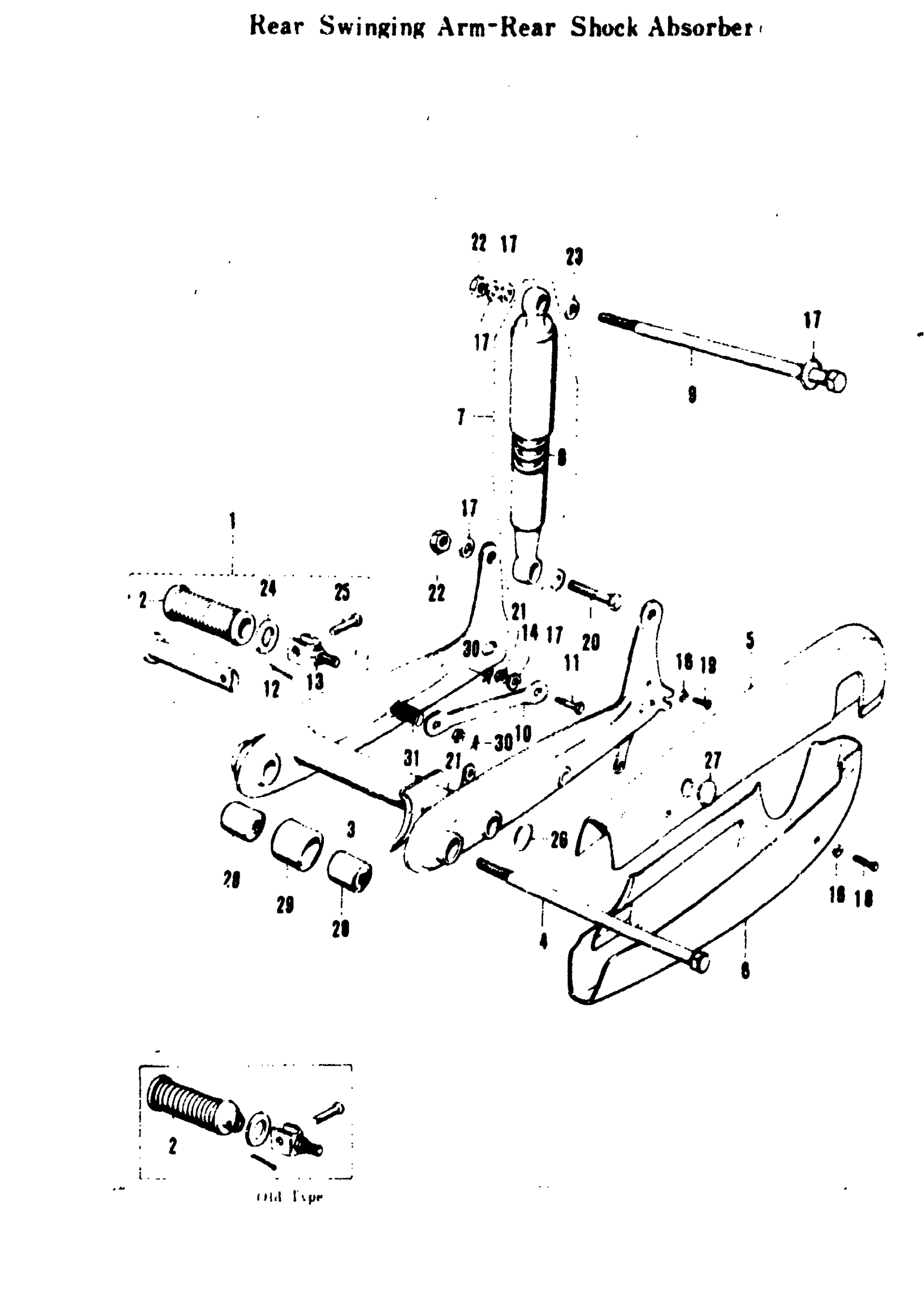

Suzuki A100 (1969) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

FOOTREST ASSY,P | 00 This part replaces 43600-03001.

43600-09D00

$27.30

2

FOLDING FOOTREST RUBBER | 00

43612-03001

$5.15

2

FOLDING FOOTREST RUBBER | 00

43610-03000

Unavailable

3

REAR SWINGING ARM | IMARY-PAINTED

61102-03815

Unavailable

4

REAR SWINGING ARM PIVOT SHAFT | 00; ID=10(0.39) L=244(9.61

61211-20000

Unavailable

5

CHAIN CASE UPPER HALF | IMARY PAINTED

61310-05001

Unavailable

6

CHAIN CASE LOWER HALF | IMARY PAINTED

61320-05001

Unavailable

7

REAR SHOCK ABSORBER ASS'Y | ATED

62100-05601

Unavailable

8

REAR SHOCK ABSORBER SPRING | =21(0.83) OD=31(1.22) L=17

62211-01701

Unavailable

9

REAR SHOCK ABSORBER UPPER SHA | =10(0.39) L=186(7.32)

62311-03001

Unavailable

10

REAR TORQUE LINK | 00

64310-01000

Unavailable

11

REAR TORQUE LINK | 00

64331-01000

Unavailable

12

COTTER PIN

04111-20188

Unavailable

13

NUT This part replaces 08312-31108.

08310-00107

$2.19

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

CHAIN CASE BOLT (S) | 00; 6SCREW L=6(0.24)

09100-06005

Unavailable

19

BOLT | 00; 6SCREW L=15(0.59) This part replaces 09100-06007.

09100-06067

Unavailable

20

REAR SHOCK ABSORBER LOWER BOL | 00; OD=10(0.39) L=40(1.57)

09100-10019

Unavailable

21

REAR TORQUE LINK NUT | 00

09140-08008

$1.49

22

REAR SHOCK ABSORBER NUT | 00

09140-10001

Unavailable

23

REAR SHOCK ABSORBER UPPER WAS | =10.5(0.41) OD=20(0.79) T=

09160-10005

$1.87

24

WASHER | =19.5(0.77 OD=32(1.26) T=2 This part replaces 09160-19006.

09160-19024

$2.65

25

FRONTREST RUBBER PIN | 00; OD=6(0.24) L=31(1.22)

09200-06010

$1.72

26

SWINGING ARM JOINT CAP | 00

09250-22002

$1.99

27

CAP(OD:40) This part replaces 09250-30001.

09250-30024

$1.78

28

REAR SWINGING ARM WASHING | 00

09319-10009

$7.62

29

REAR PIVOT SHAFT HOUSING BUFF | 0000

09320-22001

Unavailable

30

REAR TORQUE CLIP | 00

09384-06001

$1.49
