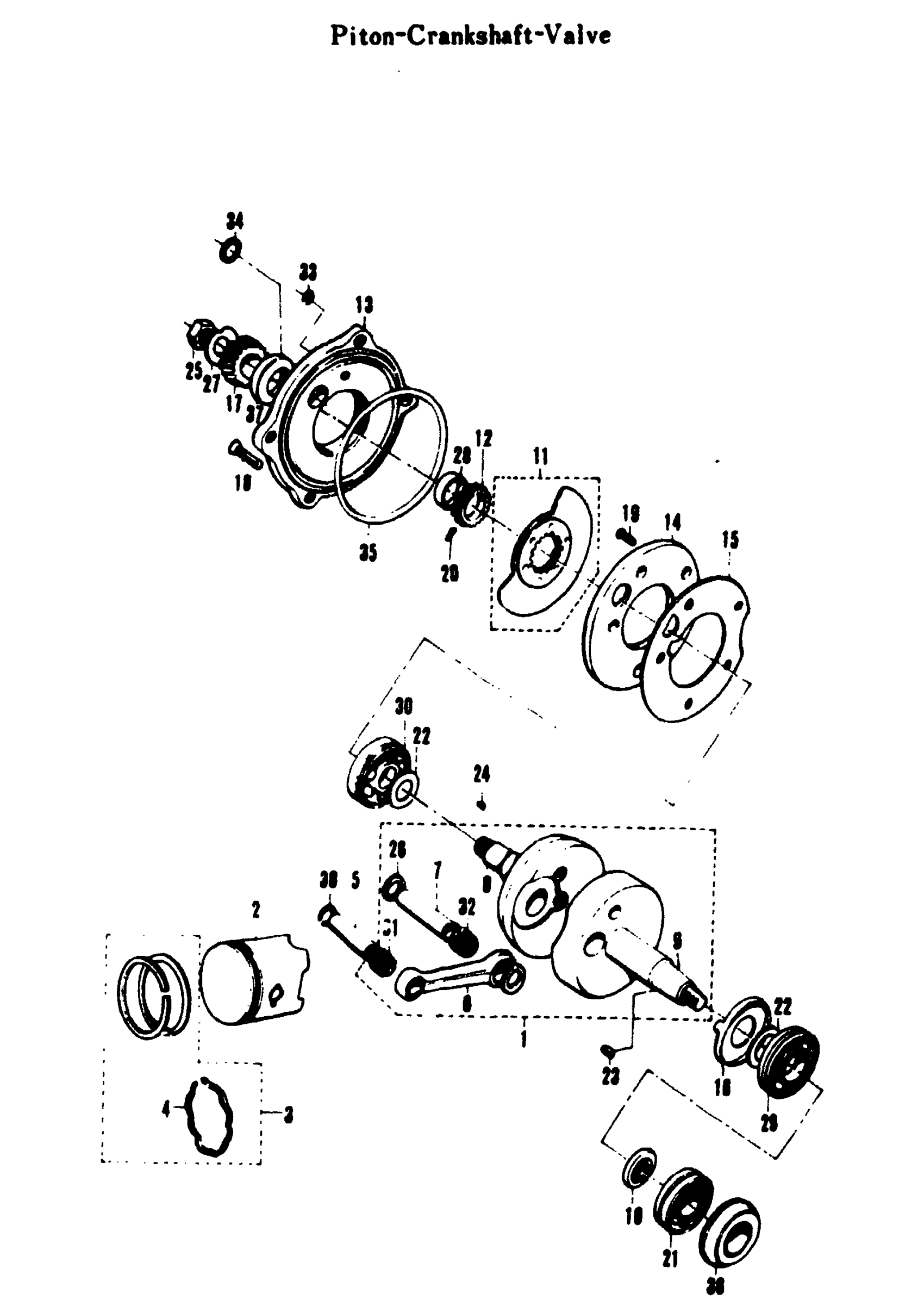

Suzuki A100 (1969) PISTON-CRANKSHAFT-VALVE Diagram

#

Description
Price

1

CRANKSHAFT ASS'Y | 00

12000-12801

Unavailable

2

PISTON STD | 00 This part replaces 12110-12000.

12110-12003

Unavailable

2

PISTON/RING KIT | 00; OS=0.5(0.02) This part replaces 12110-12700.

12100-12000-050

Unavailable

2

PISTON | 00; OS=1.0(0.04)

12110-12710

Unavailable

3

PISTON RING SET | 00 This part replaces 12140-12818.

12140-12012

Unavailable

3

RING SET, PISTON | 00; OS=0.5(0.02) This part replaces 12140-12819.

12140-28630-050

$40.98

3

NO DESCRIPTION AVAILABLE | 00; OS=1.0(0.04) This part replaces 12140-12820.

12140-12012-100

Unavailable

4

PISTON EXPANDER RING | 00

12149-12010

Unavailable

5

PIN,PISTON | 00; ID=10.5(0.41) OD=1=38.5(1.51) This part replaces 12151-12000.

12151-23400-0A0

$8.67

6

CONNECTING ROD | 00 This part replaces 12161-12000.

12161-39300

$69.47

7

CRANK PIN | 00

12211-03300

Unavailable

8

RIGHT CRANKSHAFT | 00

12220-12000

Unavailable

9

LEFT CRANKSHAFT | 00

12260-12000

Unavailable

10

LEFT CRANKSHAFT SPACER | 00 ID=21(0.82) OD=47(1..28)

12353-12001

Unavailable

11

VALVE PLATE COMP | 00

12410-12000

Unavailable

12

VALVE GUIDE | 00

12421-05001

Unavailable

13

NO DESCRIPTION AVAILABLE | 00 This part replaces 12450-12000.

12450-12001

Unavailable

14

NO DESCRIPTION AVAILABLE | 00 This part replaces 12460-12000.

12461-12001

Unavailable

15

INNER VALVE SEAT GASKET | 00

12471-12000

Unavailable

16

OIL GUIDE PLATE | 00

12511-03100

Unavailable

17

PRIMARY DRIVE GEAR | 00; N.T.=16

21111-07000

Unavailable

18

CROSS HEAD SCREW

02121-06208

Unavailable

19

CROSS HEAD SCREW

02121-06208

Unavailable

20

ROLLER

04221-03059

$1.72

21

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

22

SHIM (20X28X0.5) | 8) OD=28(1.10) T=0.5(0. This part replaces 08221-20285.

09181-20158

$3.03

23

KEY

08341-31039

$1.89

24

KEY This part replaces 08341-31049.

09420-04008

$3.42

25

PRIMARY DRIVE GEAR NUT | 00

09140-14002

$3.40

26

CONNECTING THRUST WASHER | 00; ID=19(0.74) OD=32(1

09160-19001

$3.27

27

PRIMARY DRIVE GEAR WASHER | 00

09166-14004

Unavailable

28

PRIMARY DRIVE GEAR SPACER | 00 ID=20(0.78) OD=25(0.0.39)

09180-20006

Unavailable

29

LEFT CRANKSHAFT INNER HEARING | 00 ID=20(0.79) OD=52(2.0.59)

09262-20003

Unavailable

30

BEARING | 00 ID=20(0.79) OD=52(2.0.59)

09262-20015

$34.92

31

ROLLR BRG,14X18 | 00 ID=14(0.55) OD=18(0.0.79) This part replaces 09263-14001.

09263-14022

$11.97

32

BEARING | 00 ID=19(0.74) OD=25(0.0.62) This part replaces 09263-19001.

09263-19009

$16.75

33

O RING (D:1.5,ID:10) | 00; ID=10(0.39) D=1.5( This part replaces 09280-10002.

09280-10012

$2.28

34

VALVE SEAT OUTER "O" RING | 00; ID=22.5(0.87) D=1.

09280-22002

$1.65

35

O RING(D:2,ID:9 | 00; ID=99(3.89) D=2(0. This part replaces 09280-99001.

09280-99004

$19.48

36

OIL SEAL, RH | 00; ID=25(0.98) OD=377(0.28) This part replaces 09283-20011.

09283-20034

$5.18

37

SEAL,OIL,25X44X | 00; ID=25(0.98) OD=447(0.28) This part replaces 09283-25009.

09283-25107

$6.02
