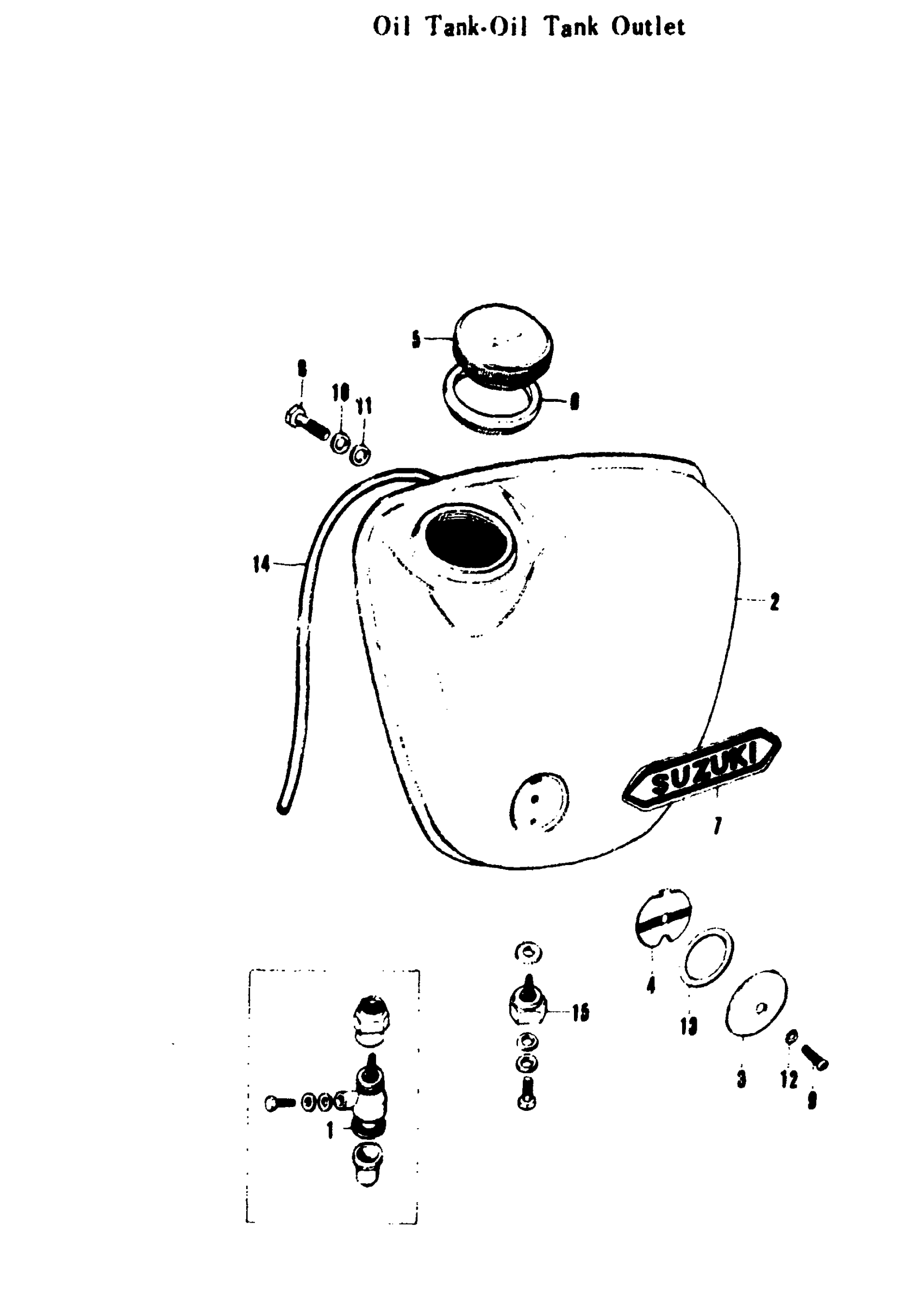

Suzuki A100 (1969) OIL TANK-OIL TANK OUTLET Diagram

#

Description
Price

1

FILTER CAP GASKET | 00; ID=13.5(0.53) OD=191.5(0.06) UP TO E.NO.3

44346-02030

Unavailable

2

OIL TANK COMP | IMARY PAINTED

44610-05601

Unavailable

3

OIL LEVEL INSPECTION LENS | 00

44641-11000

Unavailable

4

LENS SET, OIL INSPECTION | 00 This part replaces 44642-11000.

44640-11843

Unavailable

5

OIL TANK CAP | 00

44651-11040

$15.05

6

GASKET,OIL TANK | 00; ID 35(1.38) OD=46(.5(0.14) This part replaces 44661-11000.

44661-11001

$3.66

7

OIL TANK EMBLEM | 00; SUZUKI

68141-12600

Unavailable

8

HEXAGON BOLT

01111-06108

Unavailable

9

SCREW This part replaces 02111-05168.

02112-05167

$1.97

9

CROSS HEAD SCREW

02111-05161

Unavailable

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

OIL TANK CUSHION WASHER | 00; ID=8(0.32) OD=22(0..12)

09161-08002

Unavailable

12

OIL LEVEL INSPECTION LENS GAS | 00; ID =5(0.20) OD=9.5((0.04)

09168-05001

$1.98

13

OIL LEVEL INSPECTION LENS "O" | 00; ID=23(0.91) D=3(0.1

09280-23001

Unavailable

14

HOSE (5X8X2000) | 00 This part replaces 09344-05005.

09351-50803-00B

$9.10
