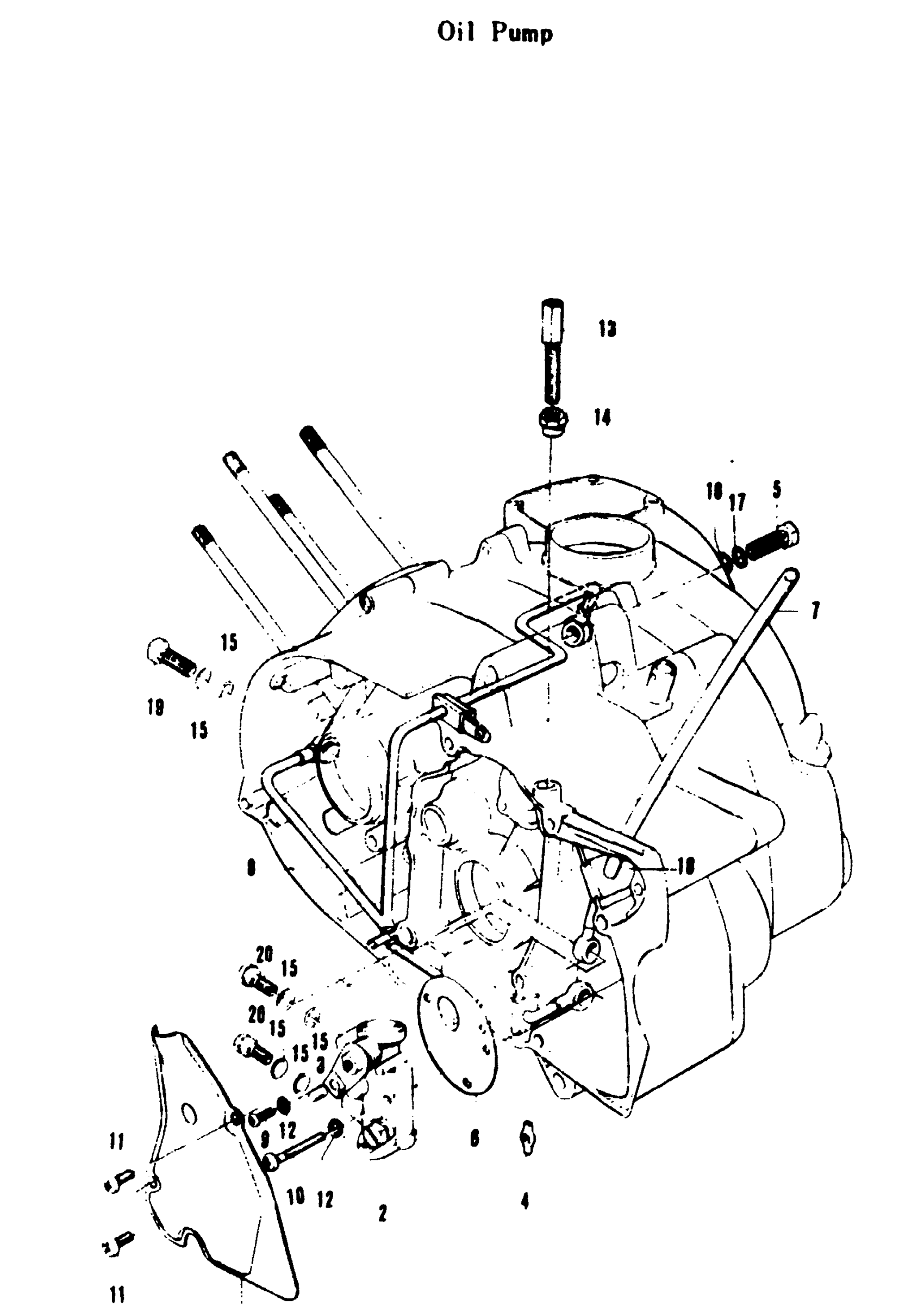

Suzuki A100 (1969) OIL PUMP Diagram

#

Description
Price

1

OD PUMP COVER | 00

11385-12000

Unavailable

2

OD PUMP ASS'Y | 00

16003-12810

Unavailable

3

TERMINAL, CABLE | 00 This part replaces 16292-03110.

16292-03112

$5.05

4

PIECE, DRIVE | 00 This part replaces 16391-05030.

16391-05031

$3.65

5

INLET CHECK VALVE | 00

16710-11011

Unavailable

6

GASKET, OIL PUMP | 00 This part replaces 16731-03100.

16731-03101

$2.81

7

OD PUMP INTEL HOSE | 00

16810-12630

Unavailable

8

OD PUMP OUTLET HOSE | 00

16820-12031

Unavailable

9

SCREW This part replaces 02111-05168.

02112-05167

$1.97

9

CROSS HEAD SCREW

02111-05161

Unavailable

10

CROSS HEAD SCREW

02111-05308

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 02111-05301.

02111-05302

Unavailable

11

CROSS HEAD SCREW

02111-06108

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

THRATTLE CABLE ADJUSTER | 00

09119-08003

Unavailable

14

THROTTLE CABLE ADJUSTER LOCK | 00

09159-08003

Unavailable

15

GASKET | 00; ID=6.2(0.24) OD=12(.5(0.06) This part replaces 09168-06002.

09168-06004

$1.49

16

CHECK VALVE GASKET | 00; ID=10(0.39) OD=16(0..12)

09168-10005

$2.06

17

INLET CHECK VALVE "O" RING | 00; ID=7.6(0.30) D=1.32

09280-08003

$1.49

18

GROMMET | 00 This part replaces 09309-08002.

09309-08015

$2.38

19

UNTON BELT | 00

09360-06003

$3.76
