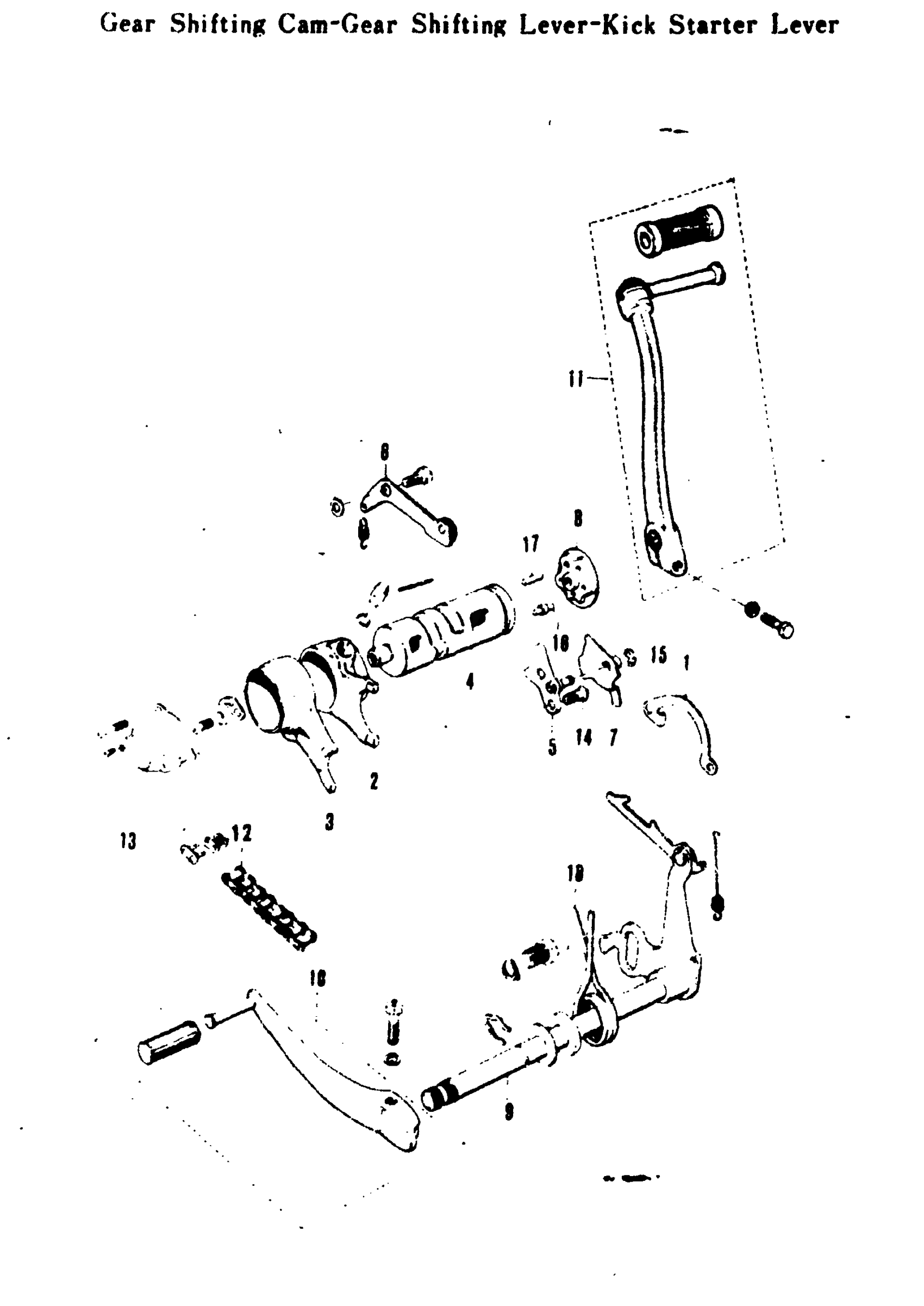

Suzuki A100 (1969) GEAR SHIFTING CAM-GEAR SHIFTING LEVER-KICK STARTER LEVER Diagram

#

Description

Price

1

PLATE, COUNTERSHOFT BEARING This part replaces 24741-12100.

24741-25000

Unavailable

2

GEAR SHIFTING FORK (A)

25211-12100

Unavailable

3

GEAR SHIFTING FORK (B)

25221-12100

Unavailable

4

GEAR SHIFTING COM

25311-12102

Unavailable

5

GEAR SHIFTING CAM GUIDE

25340-12101

Unavailable

6

GEAR SHIFTING CAM STOPPER

25350-12101

Unavailable

7

PAWL, CAM STOPPER This part replaces 25370-12100.

25370-12101

Unavailable

8

GEAR SHIFTING CAM STOPPER PLA

25380-12100

Unavailable

9

SHAFT,GEAR SHIF This part replaces 25510-12100.

25510-12102

Unavailable

10

GEAR SHIFTING LEVER ASSY

25600-05101

Unavailable

11

KICK STARTER LEVER ASSY

26300-12100

Unavailable

12

DRIVE CHAIN ASSY

27600-12010

Unavailable

13

DRIVE CHAIN JOINT ASS'Y

27620-08011

Unavailable

14

SCREW This part replaces 02121-06168.

02122-06167

$1.49

15

E RING This part replaces 08332-11059.

08332-1105A

$1.78

16

GEAR SHIFTING CAM PIN (A) | 7)

09209-04006

Unavailable

17

GEAR SHIFTING CAM PIN (B) | ) l=20(0.79)

09261-04003

Unavailable

18

GEAR SHIFTING SHAFT RETURN SP

09444-26005

Unavailable
