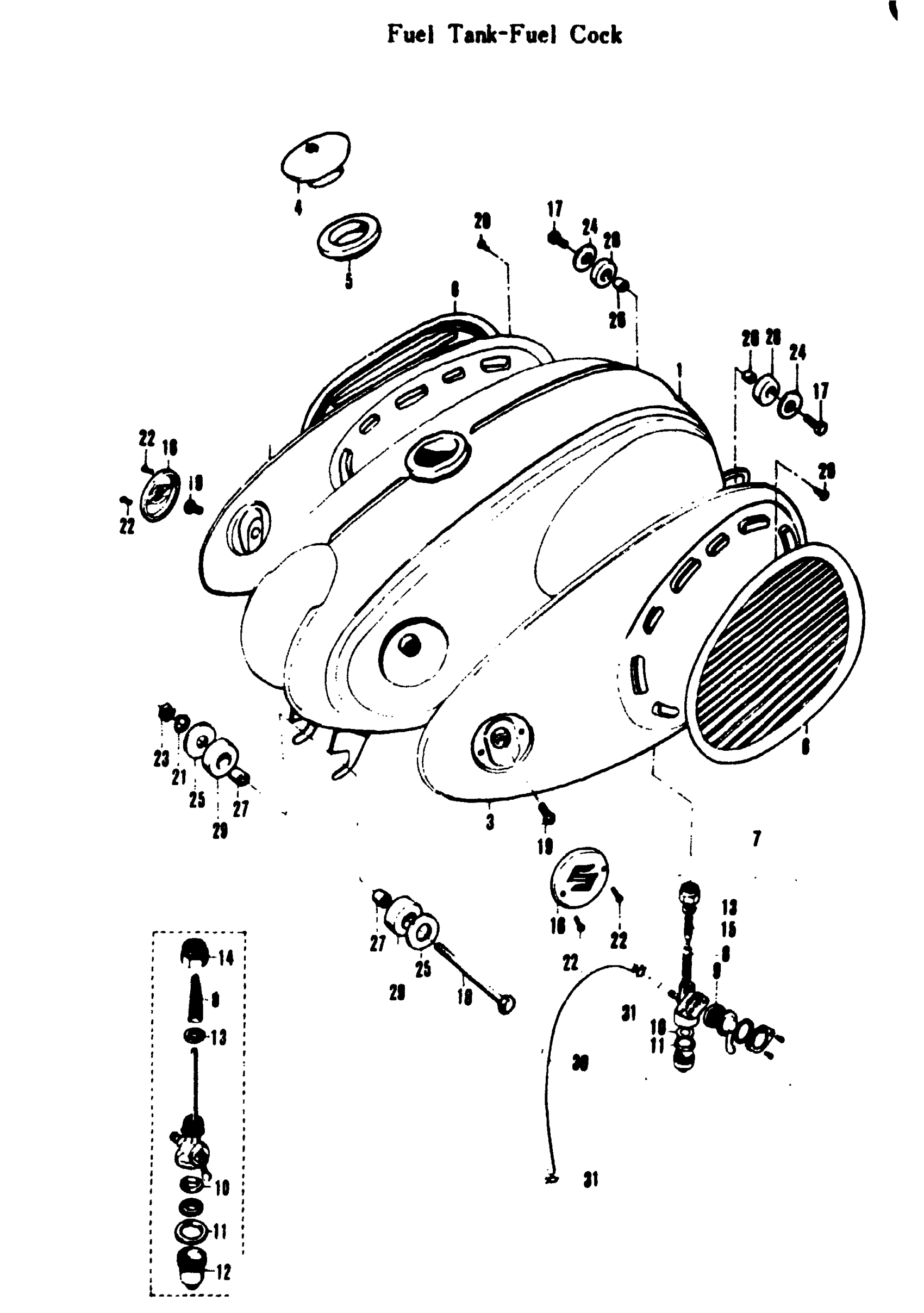

Suzuki A100 (1969) FUEL TANK-FUEL COCK Diagram

#

Description
Price

1

FUEL TANK | IMARY-PAINTED

44110-12001

Unavailable

2

FUEL TANK RIGHT SIDE COVER

44170-12001

Unavailable

3

FUEL TANK LEFT SIDE COVER

44180-12001

Unavailable

4

CAP FUEL TANK | 00 This part replaces 44210-12000.

44200-23810

$49.39

5

FUEL TANK CAP GASKET | 00

44248-12000

Unavailable

6

KNEE GRIP

44251-05000

Unavailable

7

COCK ASSY FUEL | 00 This part replaces 44300-05110.

44300-05115

Unavailable

8

INTEL PIPE FILTER NET | 00

44330-01011

Unavailable

9

FUEL COCK LEVER GASHET | 00

44341-05110

Unavailable

10

FILTER NET | 00; ID=7(0.28) OD=16(0.

44344-05110

Unavailable

11

FILTER CAP GASKET | 00; ID=15(0.59) OD=19(00.08)

44346-05110

Unavailable

11

FILTER CAP GASKET | =14(0.55) OD=19.5(0.77)6)

44346-01020

Unavailable

12

FUEL COCK FILTER CAP | 00

44347-01600

Unavailable

13

FUEL COCK GASKET | 00; ID=8.2(0.32) OD=13.=2.5(0.09)

44348-01010

Unavailable

14

FUEL COCK JOINT NUT | 00

44349-01020

Unavailable

15

FUEL COCK LEAD PIPE NET | 00

44362-05110

Unavailable

16

FUEL TANK EMBLEM | 00

68110-11000

Unavailable

17

HEXAGON BOLT

01111-06168

Unavailable

18

BOLT This part replaces 01221-08857.

01204-08857

Unavailable

19

CROSS HEAD SCREW

02111-06088

Unavailable

20

SCREW This part replaces 02141-05068.

09125-05117

$2.72

20

CROSS HEAD SCREW

02141-05061

Unavailable

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

SCREW | 00; ISO This part replaces 09125-03106.

09125-03104

Unavailable

22

FUEL TANK EMBLEM SCREW

09125-03001

Unavailable

23

FUEL TANK FRONT NUT

09140-08001

Unavailable

24

WASHER, FRONT | 00; ID=6.5(0.26) OD=24(.6(0.06) This part replaces 09160-06004.

09160-06134

$1.91

25

WASHER (8.5X26X1.6) | =8.2(0.32) OD=26(1.02)6) This part replaces 09160-08005.

09160-08134

$2.03

26

SPACER (6.5X10X7) | =7(0.28) OD=10(0.39) W= This part replaces 09180-06002.

09180-06283

$1.91

27

SPACER (8.5X12X11) | =8.8(0.35) OD=12(0.47)) This part replaces 09180-08001.

09180-08189

$2.58

28

FUEL TANK REAR CUSHION | 00; ID=9.5(0.38) OD=12.=8.5(0.34)

09320-09002

$1.98

29

FUEL TANK FRONT CUSHION | =11.5(0.45) OD=26(1.02))

09320-11003

Unavailable

30

HOSE | 135(5.31) This part replaces 09343-05016.

09352-50005-00B

$13.93
