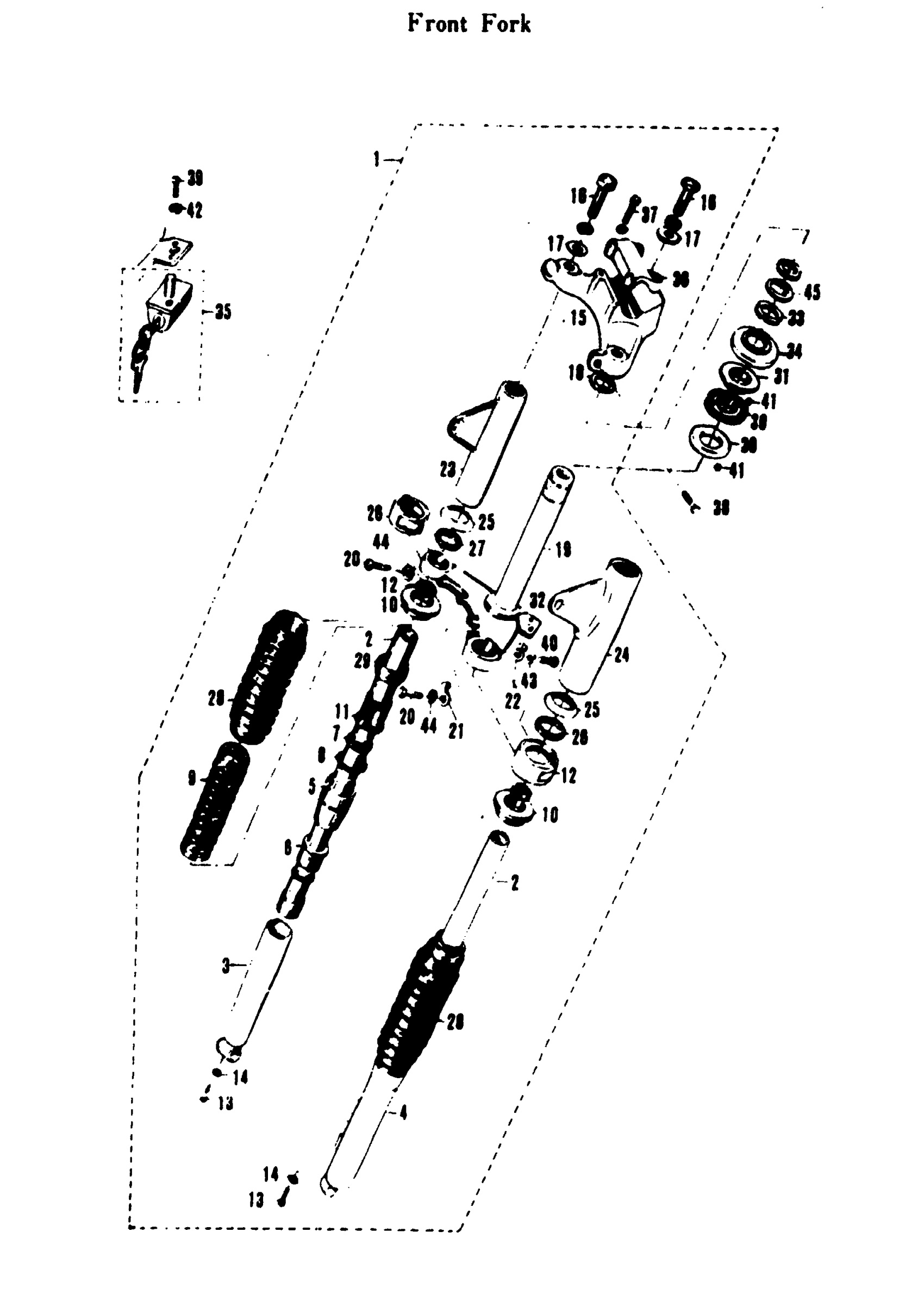

Suzuki A100 (1969) FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS'Y | AINTED

51100-12600

Unavailable

2

FORK INNER TUBE

51110-05010

Unavailable

3

FORK RIGHT OUTER TUBE | AINTED

51130-12601

Unavailable

4

FORK LEFT OUTER TUBE | AINTED

51140-12601

Unavailable

5

FORK INNER TUBE GUIDE HOUSING | 00

51151-12010

Unavailable

6

FORK INNER TUBE GUIDE | 00; ID=17(0.67) L=24(0.94)

51152-03011

Unavailable

7

NO DESCRIPTION AVAILABLE | 00; ID=25.2(0.99) OD=39(1.(0.41) This part replaces 51153-03011.

51153-23010

Unavailable

8

FORK OIL SEAL LOWER "O" RING | 00

51154-12011

Unavailable

9

FORK SPRING | 00; ID=31.2(1.24) OD=38.5(49(5.87)

51171-03620

Unavailable

10

FORK SPRING GUIDE | 00; ID=27(1.06) L=8(0.31)

51172-01212

Unavailable

11

FORK DUST SEAL | 00

51173-01211

Unavailable

12

FORK INNER TUBE CUSHION | 00; ID=10(0.39) OD=20(0.795)

51181-03010

Unavailable

13

FORK DRAIN PLUG | 00; ISO OD=4SCREW

51182-03621

Unavailable

13

FORK DRAIN PLUG

51182-03620

Unavailable

14

FORK DRAIN PLUG GASKET | 00; ID=4(0.16) OD=9(0.35)5)

51183-03010

$2.07

15

STEERING STEM HEAD

51311-12010

Unavailable

16

FORK FITTING BO | 00 This part replaces 51351-07012.

51351-07013

Unavailable

17

STEERING STEM HEAD WASHER | 00; ID=10.5(0.41) OD=26(1.008)

51356-07010

$6.65

18

STEERING STEM UPPER COVER | 00

51361-03110

Unavailable

19

STEERING STEM | 00

51410-12600

Unavailable

20

BOLT | 00; OD=10SCREW L=28(1.10) This part replaces 51451-03010.

01500-1030A

$3.16

21

SPEEDMETER CLIP | 00

51452-08010

Unavailable

22

BRAKE CABLE CLIP

51453-03010

$5.50

23

NO DESCRIPTION AVAILABLE | IMARY PAINTED This part replaces 51530-12010.

51500-12850-126

Unavailable

24

HEAD LAMP LEFT BRACKET | IMARY PAINTED

51540-12010

Unavailable

25

HEAD LAMP BRACKET SEAT | =27.2(1.14) OD=43(1.69) T=3

51551-01211

Unavailable

26

HEAD LAMP BRACKET CHROME BAND | 00

51552-03110

Unavailable

27

HEAD LAMP BRACKET SHOCK DAMPE | 00; ID=28(1.10) OD=34(1.34)

51553-01211

Unavailable

28

FORK SPRING COVER BOOT | 00

51571-03110

Unavailable

29

FORK SPRING GUIDE | 00

51573-03110

Unavailable

30

STEERING INNER RACE | 00

51611-01000

Unavailable

31

RACE, STEERING OUTER UPPER | 00 This part replaces 51621-05000.

51621-25000

$12.40

32

STEERING LOWER OUTER RACE | 00

51622-01000

Unavailable

33

STEERING STEM NUT

51631-05600

Unavailable

34

DUST SEAL | 00 This part replaces 51643-05000.

51643-06001

Unavailable

35

STEERING LOCK ASS'Y | 00

51900-03012

Unavailable

36

HANDLEBAR CLAMP

56211-03010

Unavailable

37

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

38

BOLT, UPPER This part replaces 01221-08127.

01204-08127

$2.38

39

CROSS HEAD SCREW

02111-05128

Unavailable

39

CROSS HEAD SCREW

02111-05121

Unavailable

40

CROSS HEAD SCREW

02111-06108

Unavailable

41

STEEL BALL

06111-06004

Unavailable

42

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

44

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
