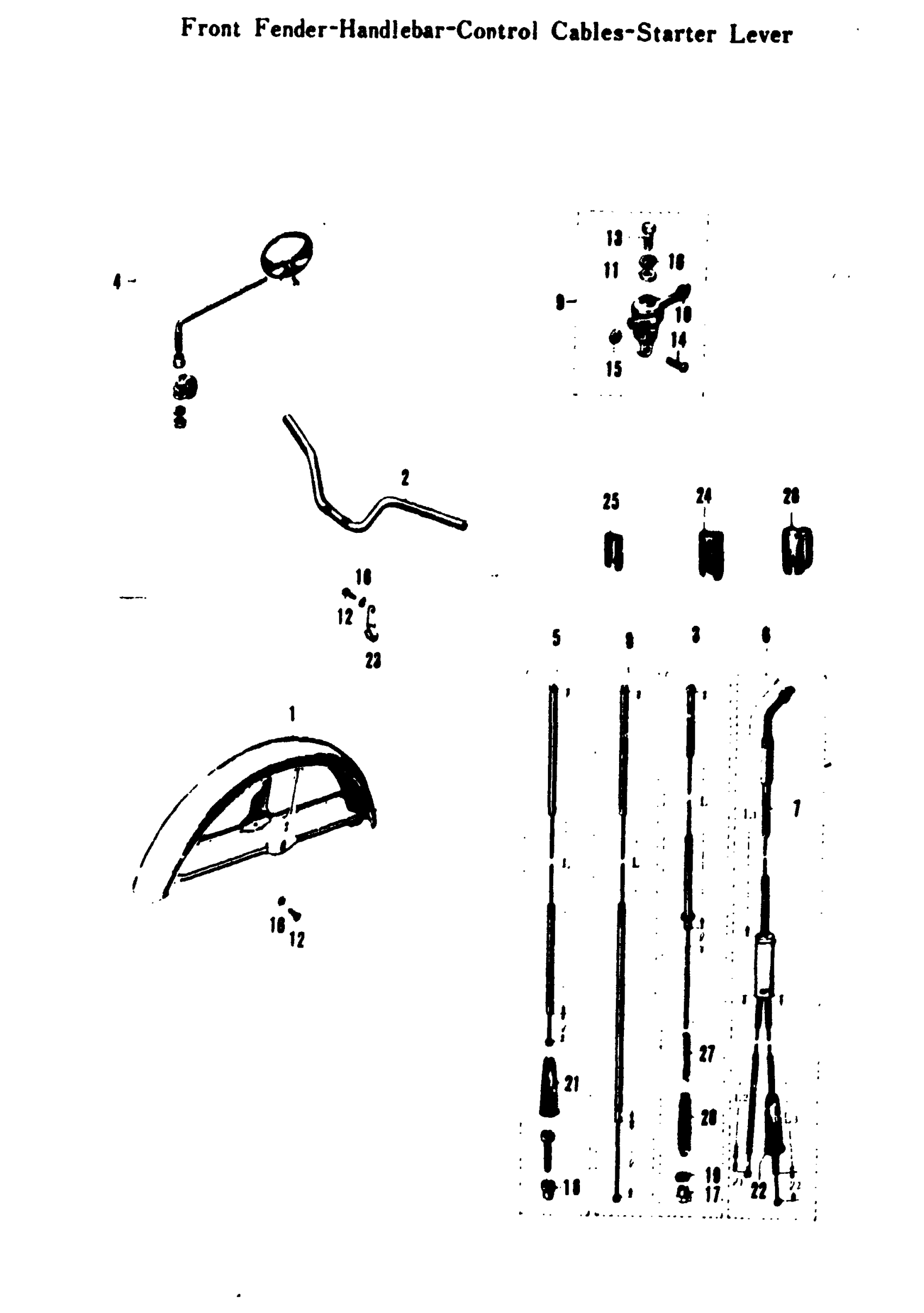

Suzuki A100 (1969) FRONT FENDER-HANDLEBAR-CONTROL CABLES-STARTER LEVER Diagram

#

Description
Price

1

FRONT FENDER | ROME PLATED

53110-03660

Unavailable

2

HANDLEBAR

56111-05000

Unavailable

3

BRAKE CABLE ASS'Y | 1000(39.37) l=40(1.57)

58100-01761

Unavailable

4

REAR VIEW MIRROR ASS'Y | 00

56500-03610

Unavailable

5

CLUTCH CABLE ASS'Y | 940(37.01) l=96(3.78)

58200-05000

Unavailable

6

THROTTLE CABLE ASS'Y | =600(23.62) L2=250(9.84) L18) l1=56(2.20) l2=112(4.4

58300-12000

Unavailable

7

HANDLEBAR SIDE THROTTLE CABLE

58310-12000

Unavailable

8

STARTER CABLE | 840(33.07) l=63(2.48)

58410-05000

Unavailable

9

STARTER LEVER ASS'Y

58700-03010

Unavailable

10

STARTER LEVER

58721-03010

Unavailable

11

.WASHER (6.5X16X1) | 00; ID=6.5(0.26) OD=16(0.604) This part replaces 58723-03010.

09160-06129

$2.30

12

HEXAGON BOLT

01111-06108

Unavailable

13

HEXAGON BOLT

01111-06127

Unavailable

14

SCREW This part replaces 02111-05168.

02112-05167

$1.97

14

CROSS HEAD SCREW

02111-05161

Unavailable

15

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

HEXAGON NUT

08311-11051

Unavailable

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

BRAKE CAM NUT | 00

09150-05101

$3.04

17

BRAKE CAM NUT

09150-05001

Unavailable

18

NUT | 00 This part replaces 09159-08007.

08310-00087

$2.13

19

BRAKE CAM LEVER PIN | 00

09209-10001

$1.49

20

BRAKE CABLE BOLT | 00

09287-07001

$2.00

21

CLUTCH CABLE BOUT | 00

09287-10002

Unavailable

22

THROTTLE CABLE BOUT | 00

09287-10003

Unavailable

23

THROTTLE CABLE CLIP BAND | 00

09403-00019

Unavailable

24

CABLE CLIP A | 00

09408-00001

Unavailable

25

CABLE CLIP B | 00

09408-00002

$2.30

26

CABLE CLIP C | 00

09408-00003

Unavailable
