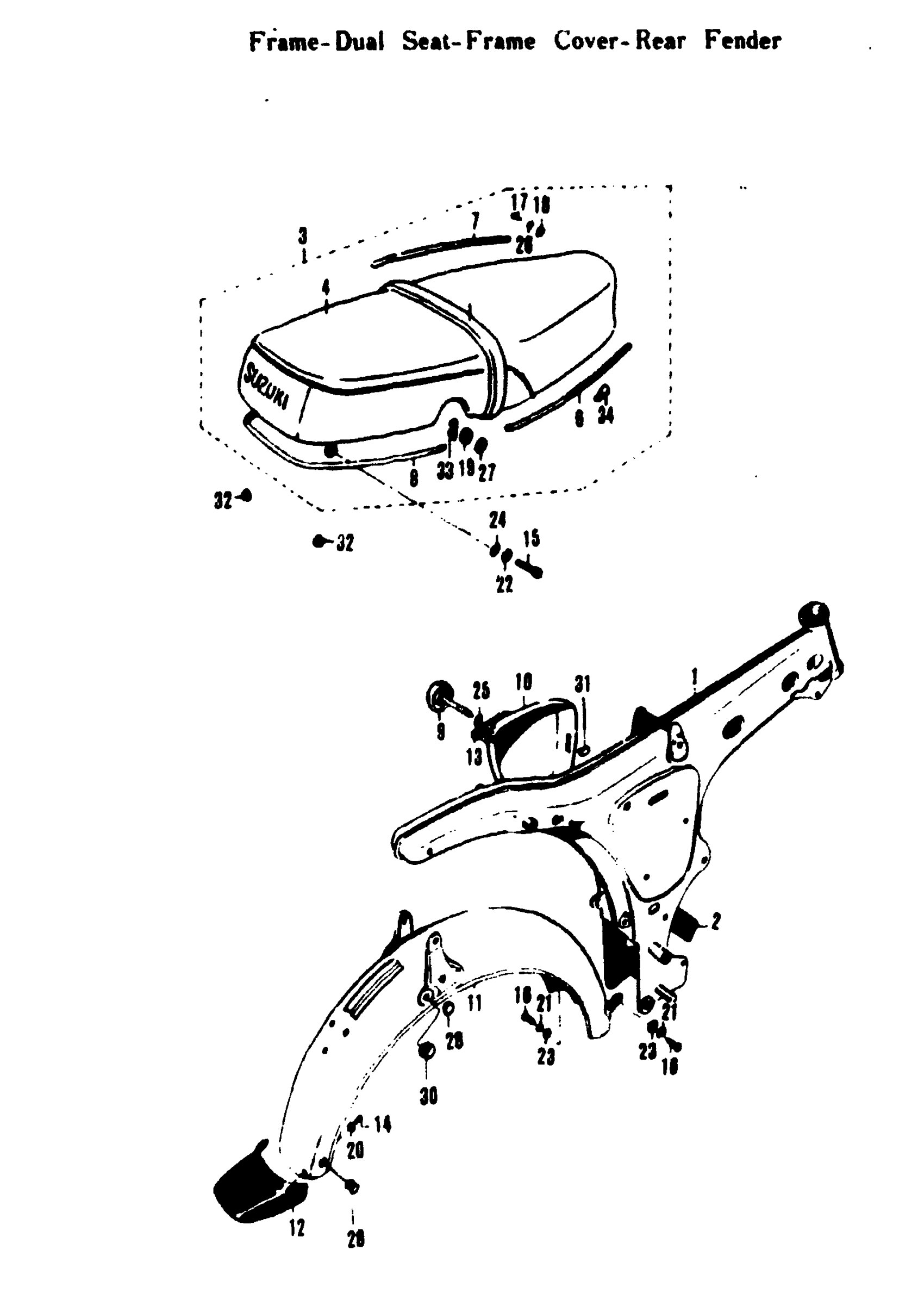

Suzuki A100 (1969) FRAME-DUAL SEAT-FRAME COVER-REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | IMARY-PAINTED This part replaces 41100-05002.

41100-05002-799

Unavailable

2

FRAME DUAL SEAL | 00

41531-05000

Unavailable

3

DUAL SEAT ASS'Y

45100-12600

Unavailable

4

DUAL SEAT LEATHER

45160-12600

Unavailable

5

DUAL SEAT PASSENGER STRAP

45180-12600

Unavailable

6

DUAL SEAT FRONT RIGHT RIM

45191-12600

Unavailable

7

DUAL SEAT FRONT LEFT RIM

45192-12600

Unavailable

8

DUAL SEAT REAR RIM

45193-12600

Unavailable

9

FRAME COVER KNOH

47230-01000

Unavailable

10

FRAME LEFT COVER | IMARY-PAINTED

47210-12700

Unavailable

11

REAR FENDER | ROME-PLATED

63110-12600

Unavailable

12

REAR FENDER EATENSTON

63310-12701

Unavailable

13

FRAME COVER EMBLEM

68141-12600

Unavailable

14

BOLT This part replaces 01111-05108.

01500-0510B

$1.80

14

HEXAMAN BOLT

01111-05101

Unavailable

15

BOLT, REAR This part replaces 01121-08208.

01500-08207

$2.53

16

BOLT This part replaces 01211-06127.

01204-06127

$2.07

17

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

17

CROSS HEAD SCREW

02141-03201

Unavailable

18

NUT This part replaces 08311-11038.

08310-0003B

$2.83

18

HEXAGON NUT

08311-11031

Unavailable

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER This part replaces 08322-21067.

08322-01067

$2.13

24

WASHER This part replaces 08322-21088.

08322-01087

$2.13

25

FRAME COVER KNOB STOPPER | 00

09152-06002

$1.67

26

DEAL SEAT RIM WASHER | =3.6(0.14) OD=14(0.55)3)

09160-03001

Unavailable

27

WASHER | =6.5(0.26) OD=18(0.71)6) This part replaces 09160-06007.

09160-06084

$1.78

28

REAR FENDER PLUG (A)

09250-05001

Unavailable

29

SEAT FITTING HOLE PLUG

09250-08002

Unavailable

30

REAR FENDER PLUG (B)

09250-08004

Unavailable

31

FRAME OVER RUFFER

09321-05002

Unavailable

32

DUAL SEAT BUFFER

09321-10002

$2.22

33

PASSENGER STRAP CLIP

09385-06001

$3.10
