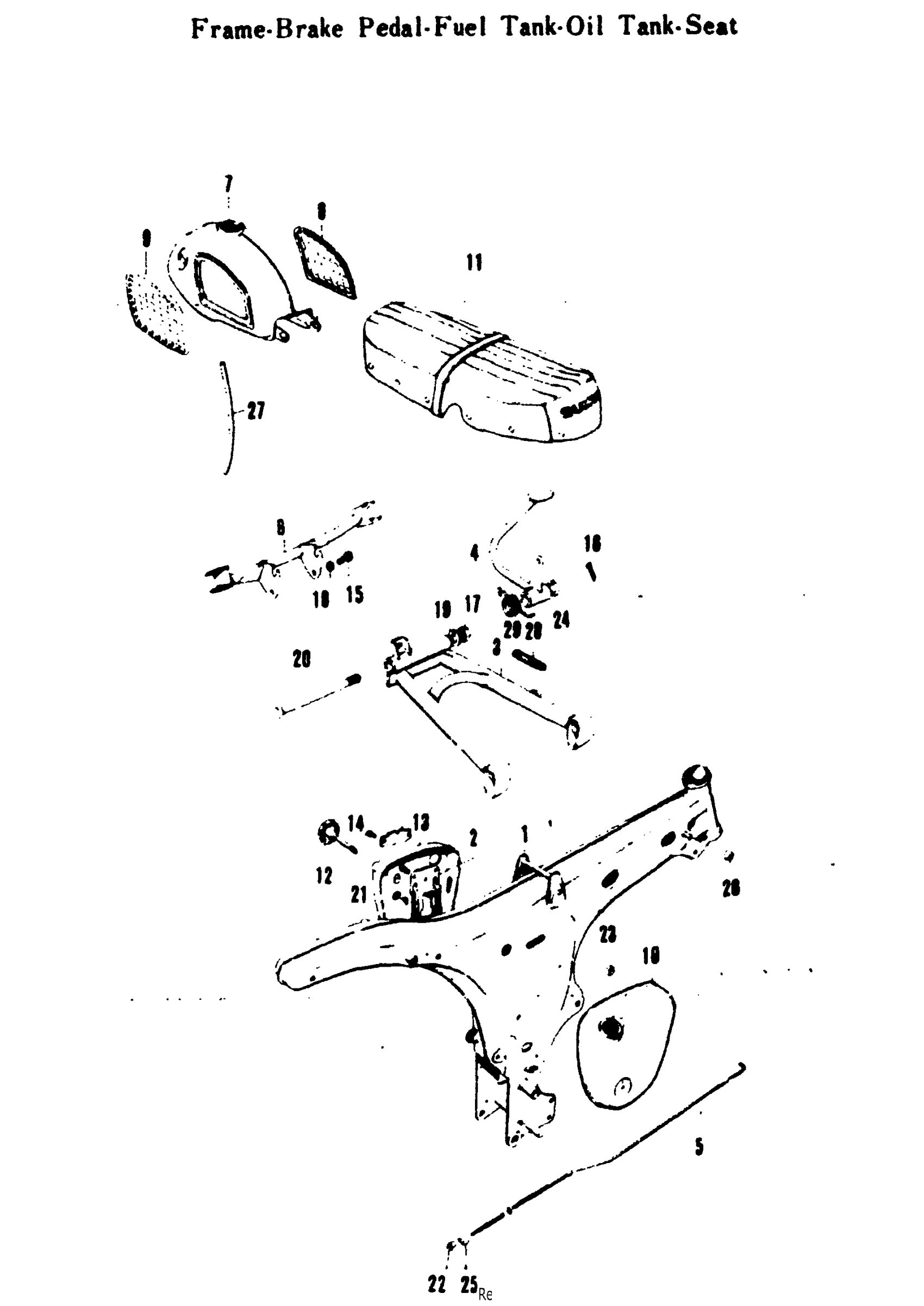

Suzuki A100 (1969) FRAME-BRAKE PEDAL-FUEL TANK-OIL TANK-SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | AINTED This part replaces 41100-05100.

41100-05100-799

Unavailable

2

HOLDER,BATTERY This part replaces 41540-05100.

41540-05102

Unavailable

3

CENTER STAND

42100-12300

Unavailable

4

BRAKE PEDAL

43110-12300

Unavailable

5

BRAKE ROD ASS'Y

43300-21200

Unavailable

6

FRONT FOOTRESTBAR

43510-12300

Unavailable

7

FUEL TANK | AINTED

44110-12300

Unavailable

8

RIGHT KNEE GRIP

44251-12300

Unavailable

9

LEF KNEE GRIP

44252-12300

Unavailable

10

OIL TANK | AINTED

44610-05100

Unavailable

11

SEAT ASS'Y

45100-12300

Unavailable

12

FRAME LEFT COVER KNOB

47130-01000

Unavailable

13

FRAME LEFT COVER | AINTED

47211-12100

Unavailable

14

FRAME LEFT COVER EMBLEM

68133-12001

Unavailable

15

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

16

PIN This part replaces 04111-30258.

04111-3030A

$1.49

17

NUT This part replaces 08312-11108.

08310-00107

$2.19

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

BOLT,10X107 | =107(4.21) This part replaces 09100-10018.

09100-10151

Unavailable

21

SCREW (6X10) | 10(0.34) This part replaces 09128-06004.

09128-06044

$1.49

22

.NUT This part replaces 09150-06001.

09150-06010

$3.10

23

OIL TANK WASHER | 26) OD=16(0.63) T=1.2(0.47

09160-06019

$1.49

24

BRAKER PEDAL WASHER | .61) OD=26(1.0) T=2.3(0.09

09160-15002

$1.91

25

BRAKE CAM LEVER PIN

09209-11002

$2.19

26

FUEL TANK FRONT CUSHION

09329-10003

Unavailable

27

HOSE This part replaces 09343-05021.

09352-50005-00B

$13.93

28

CENTER STAND SPRING

09443-16004

Unavailable
