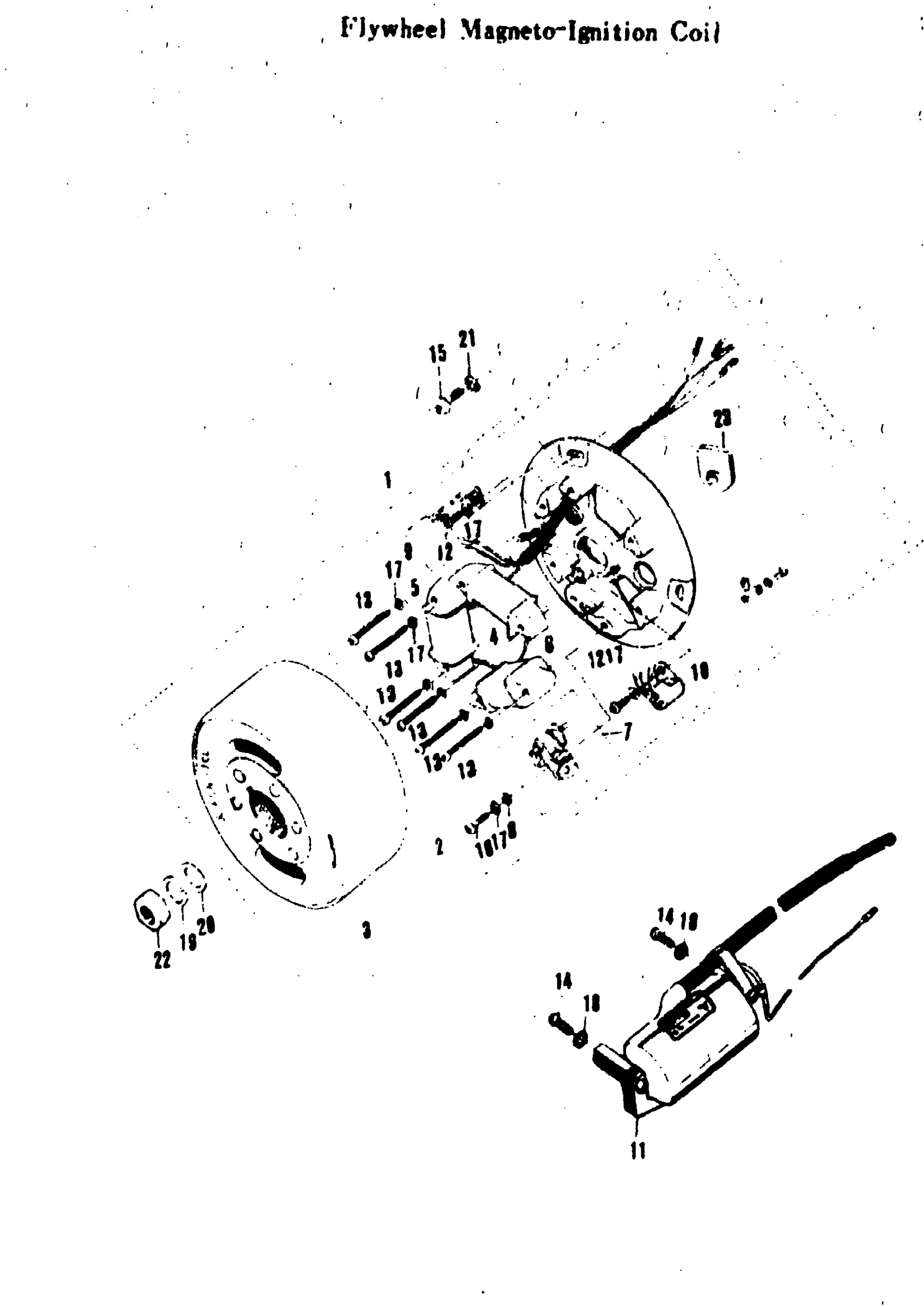

Suzuki A100 (1969) FLYWHEEL MAGNETO-IGNITION COIL Diagram

#

Description
Price

1

FIRWHEEL MAGNETO ASS'Y | 00

32100-12130

Unavailable

2

STATOR ASS'Y | 00

32101-12130

Unavailable

3

FLYWHEEL ROTOR | 00

32102-12130

Unavailable

4

LIGHTING COIL'A' | 00

32120-12130

Unavailable

5

LIGHTING COIL 'B' | 00

32130-12130

Unavailable

6

PRIMARY COIL | 00

32140-12130

Unavailable

7

CONTACT POINT ASS'Y | 00

32240-12030

Unavailable

8

CONTRCT POINT WASHER | 00; ID=4.3(0.17) OD=8(0(0.02)

32254-02030

Unavailable

9

OIL FELT | 00

32338-07030

Unavailable

10

NO DESCRIPTION AVAILABLE | 00 This part replaces 32341-12130.

32341-02030

Unavailable

11

IGNITION COIL | 00

33410-06031

Unavailable

12

CROSS HEAD SCREW

02111-04088

Unavailable

13

CROSS HEAD SCREW

02111-04258

Unavailable

14

CROSS HEAD SCREW

02111-05128

Unavailable

14

CROSS HEAD SCREW

02111-05121

Unavailable

15

SCREW This part replaces 02112-06168.

02112-06167

$1.49

16

SLOTTED PAN HEAD SCREW

02311-04128

Unavailable

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

NUT | 00 This part replaces 09140-10003.

09140-10041

$2.38
