1969 Suzuki A100 Exhaust Pipe-Muffler Diagram

← All diagrams

Find the part on the Exhaust Pipe-Muffler diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

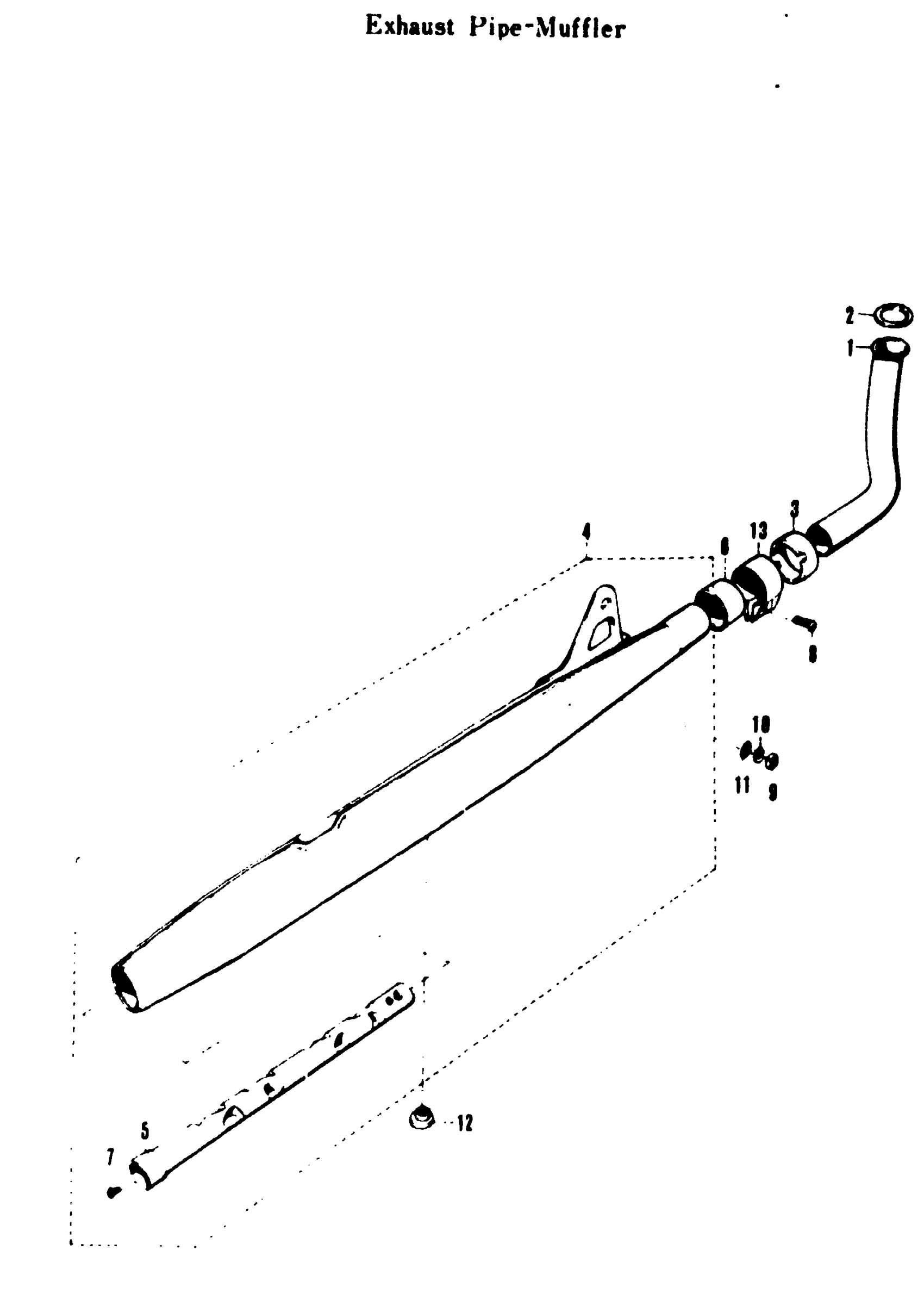

1969 Suzuki A100 Exhaust Pipe-Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE

14151-12000

1
Out of stock

2

GASKET, EXHAUST PIPE | 00; ID=34.5(1.33) OD=43W=5(0.20) This part replaces 14181-12000.

14181-42A00

1
Out of stock

3

EXHAUST PIPE JOINT CLAMP

14182-12600

1
Out of stock

4

MUFFLER ASS'Y

14301-12001

—
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 14510-12002.

14510-05003

1
Out of stock

6

MUFFLER CONNECTOR

14771-12011

1
Out of stock

7

SCREW This part replaces 02111-05068.

09125-05122

1
Out of stock

7

CROSS HEAD SCREW

02111-05061

1
Out of stock

8

CROSS HEAD SCREW

02111-06258

—
Out of stock

9

2

$1.93

In stock

10

2

$2.28

In stock

11

2

$2.28

In stock

12

CENTER STAND BUFFER

09321-10002

1
Out of stock
