1969 Suzuki A100 Cylinder-Crankcase Diagram

← All diagrams

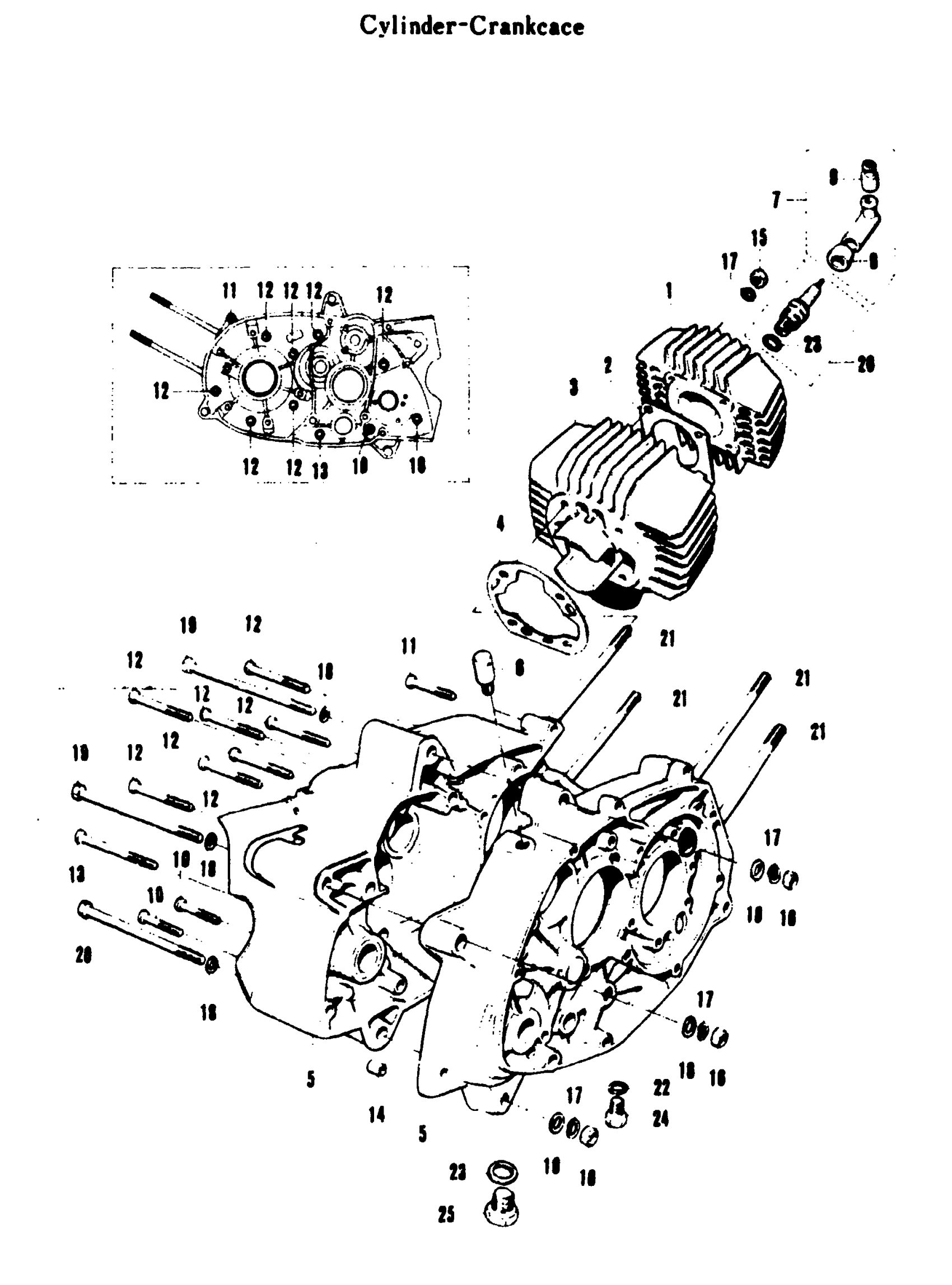

Find the part on the Cylinder-Crankcase diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki A100 Cylinder-Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD

11111-12000

—
Out of stock

2

GASKET, CYLINDER HEAD This part replaces 11141-12000.

11141-12401

1
Out of stock

3

CYLINDER | 00

11210-12001

—
Out of stock

4

NO DESCRIPTION AVAILABLE | 00 This part replaces 11241-12000.

11241-12010

1
Out of stock

5

NO DESCRIPTION AVAILABLE | 00; INCLUDE REF NOS 10~143002 This part replaces 11301-12802.

11300-12853

1
Out of stock

6

PLUG, BREATHER | 00 This part replaces 24821-09000.

24821-09001

1
Out of stock

7

PLUG CAP ASS'Y | 00

33501-10801

—
Out of stock

8

SPARK PLUG CAP SEAL | 00

33541-11000

—
Out of stock

9

HIGH TENSINA CORD SEAL | 00

33542-51000

—
Out of stock

10

SCREW This part replaces 02112-06358.

02112-06357

2
Out of stock

11

SCREW (6X40) This part replaces 02112-06408.

02112-06407

1
Out of stock

12

SCREW (6X45) This part replaces 02112-06458.

02112-06457

7
Out of stock

13

SCREW This part replaces 02112-06608.

02112-06607

1
Out of stock

14

DOWEL PIN

04211-09129

2
Out of stock

15

4

$1.93

In stock

16

3

$1.93

In stock

17

7

$2.28

In stock

18

WASHER This part replaces 08322-21088.

08322-01087

6
Out of stock

19

BOLT This part replaces 09100-08024.

09100-08228

2
Out of stock

20

ENGINE MOUNTING HOLT R | 00

09100-08026

1
Out of stock

21

CYLINDER STUD BOLT | 00

09108-08006

4
Out of stock

22

CRANK DRAIN PLUG GASKET | 00

09168-10002

1
Out of stock

23

SPARK PLUG GASKET | 00

09168-14004

2
Out of stock

24

CRANK DRAIN PLUG | 00

09247-10001

1
Out of stock

25

PLUG (MAGNETO) | 00 This part replaces 09247-14001.

09247-14002

1
Out of stock
