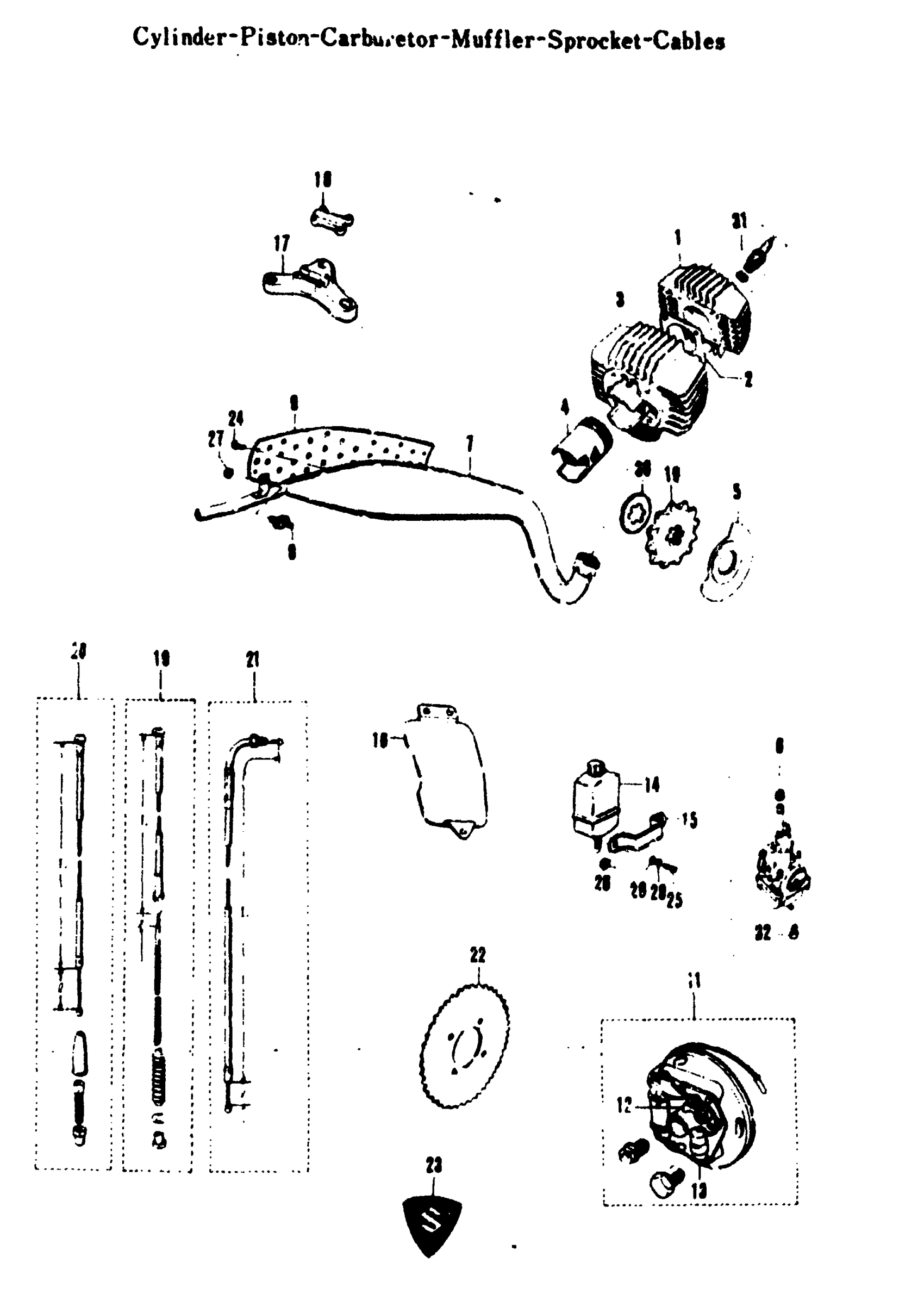

Suzuki A100 (1969) CYLINDER-PISTON-CARBURETOR-MUFFLER-SPROCKET-CABLES Diagram

#

Description
Price

1

CYLINDER HEAD

11111-17400

Unavailable

2

CYLINDER HEAD GASKET

11141-17400

Unavailable

3

CYLINDER

11210-17400

Unavailable

4

PISTON

12110-17400

Unavailable

4

PISTON

12110-17410

Unavailable

4

PISTON

12110-17420

Unavailable

5

VALVE PLATE

12410-17400

Unavailable

6

CARBURETOR ASS'Y | #130

13200-17010

Unavailable

7

MEFFLET COMP

14301-17410

Unavailable

8

MUFFLER MOUNTING CUSHION

14304-16200

Unavailable

9

MUFFLER COVER

14781-17000

Unavailable

10

SPROCKET, ENGINE (NT:12) This part replaces 27511-08700.

27511-20411

$33.27

11

FLYWHEEL MAGNETO ASS'Y

32100-17020

Unavailable

12

CONTACT POINT ASS'Y

32240-17020

Unavailable

13

CONDENSER

32341-17020

Unavailable

14

OIL TANK ASS'Y

44610-17010

Unavailable

15

OIL TANK HOLDER

44821-17000

Unavailable

16

FRAME LEFT COVER

47211-17000

Unavailable

17

HANDLEBAR BRACKET

51311-17010

Unavailable

18

HANDLEBAR CLAMP

56211-11010

Unavailable

19

BARKE CABLE ASSY | .16) l=60(2.36)

58100-17001

Unavailable

20

CLUTCH CABLE ASSY | 4 l=120(4.72)

58200-17000

Unavailable

21

THROTTLE CABLE ASSY | 77) l=85(3.35)

58300-17000

Unavailable

22

REAR SPROCKET

64511-17420

Unavailable

22

REAR SPROCKET

64511-17430

Unavailable

23

FUEL TANK EMBLEM

68111-17000

Unavailable

24

CROSS HEAD SCREW

02111-06088

Unavailable

25

SCREW This part replaces 02111-06128.

02112-06127

$1.84

26

.NUT This part replaces 08311-11068.

08310-00067

$2.13

27

NUT This part replaces 08312-11088.

08310-00087

$2.13

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

ENGINE SPROCKET WASHER

09167-20005

Unavailable

31

SPARK PLUG ASS'Y

09482-00027

Unavailable

31

SPARK PLUG ASS'Y

09482-00030

Unavailable

32

MAIN JET

09491-26002

Unavailable

32

MAIN JET

09491-24001

Unavailable

32

MAIN JET

09491-28001

Unavailable
