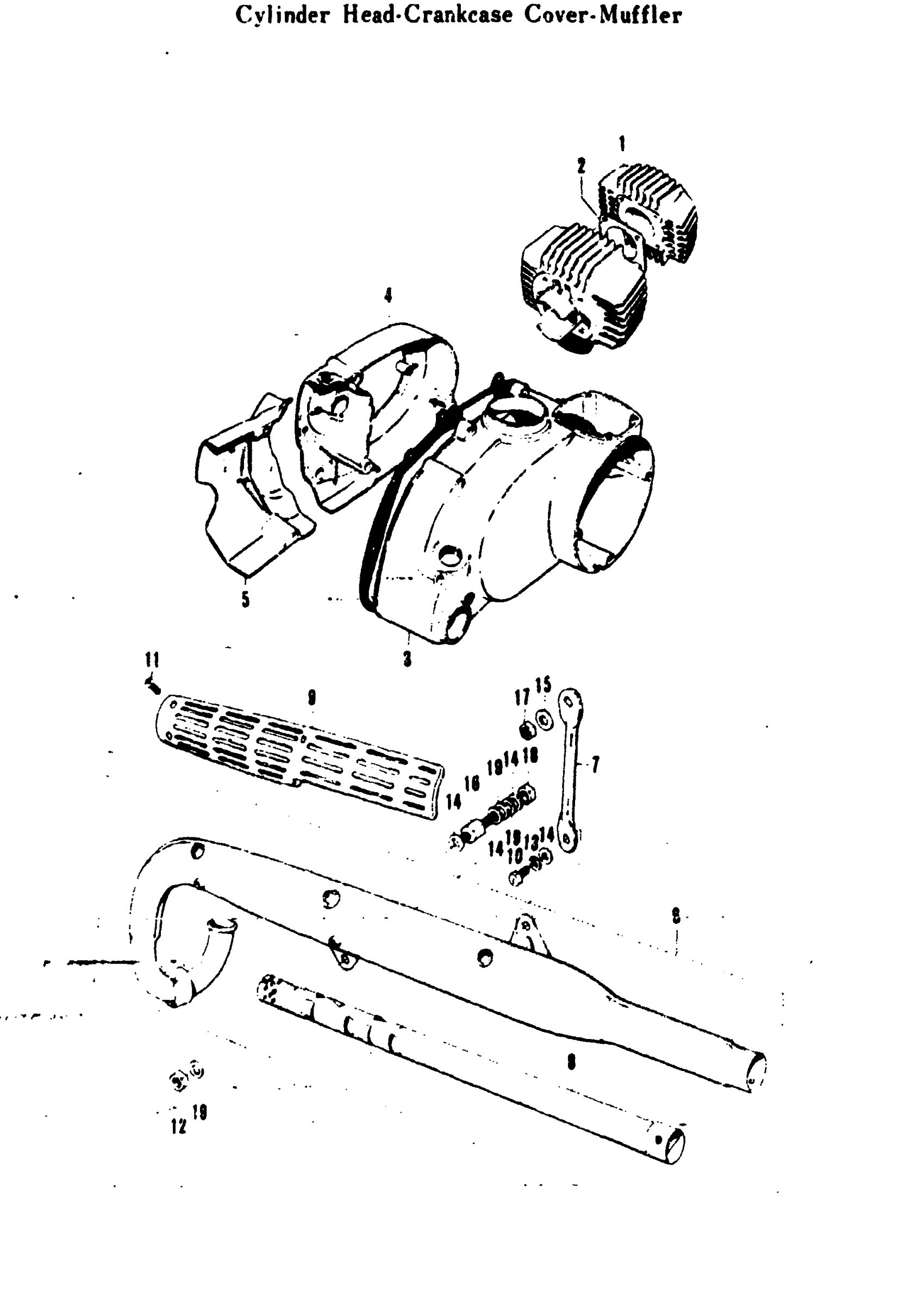

Suzuki A100 (1969) CYLINDER HEAD-CRANKCASE COVER-MUFFLER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-12400

Unavailable

2

CYLINDER HEAD GASKET

11141-12400

Unavailable

3

CRANKCASE RIGHT COVER

11341-12603

Unavailable

4

CRANKCASE LEFT COVER

11351-12602

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 11361-12601.

11360-12600

Unavailable

6

MUFFLER ASSY

14301-12400

Unavailable

7

MUFFLER REAR BRACE

14470-12600

Unavailable

8

MUFFLER BAFFLE PIPE

14510-12300

Unavailable

9

MUFFLER COVER

14781-12300

Unavailable

10

SMALL HEAD HEXAGON BOLT

01121-08207

Unavailable

11

CROSS HEAD SCREW

02111-06067

Unavailable

12

NUT This part replaces 08312-11088.

08310-00087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

MUFFLER FRONT BOLT

09108-08012

Unavailable

17

MUFFLER REAR BRACE NUT

09140-10001

Unavailable

18

NUT This part replaces 09159-08001.

09159-08020

$1.78
