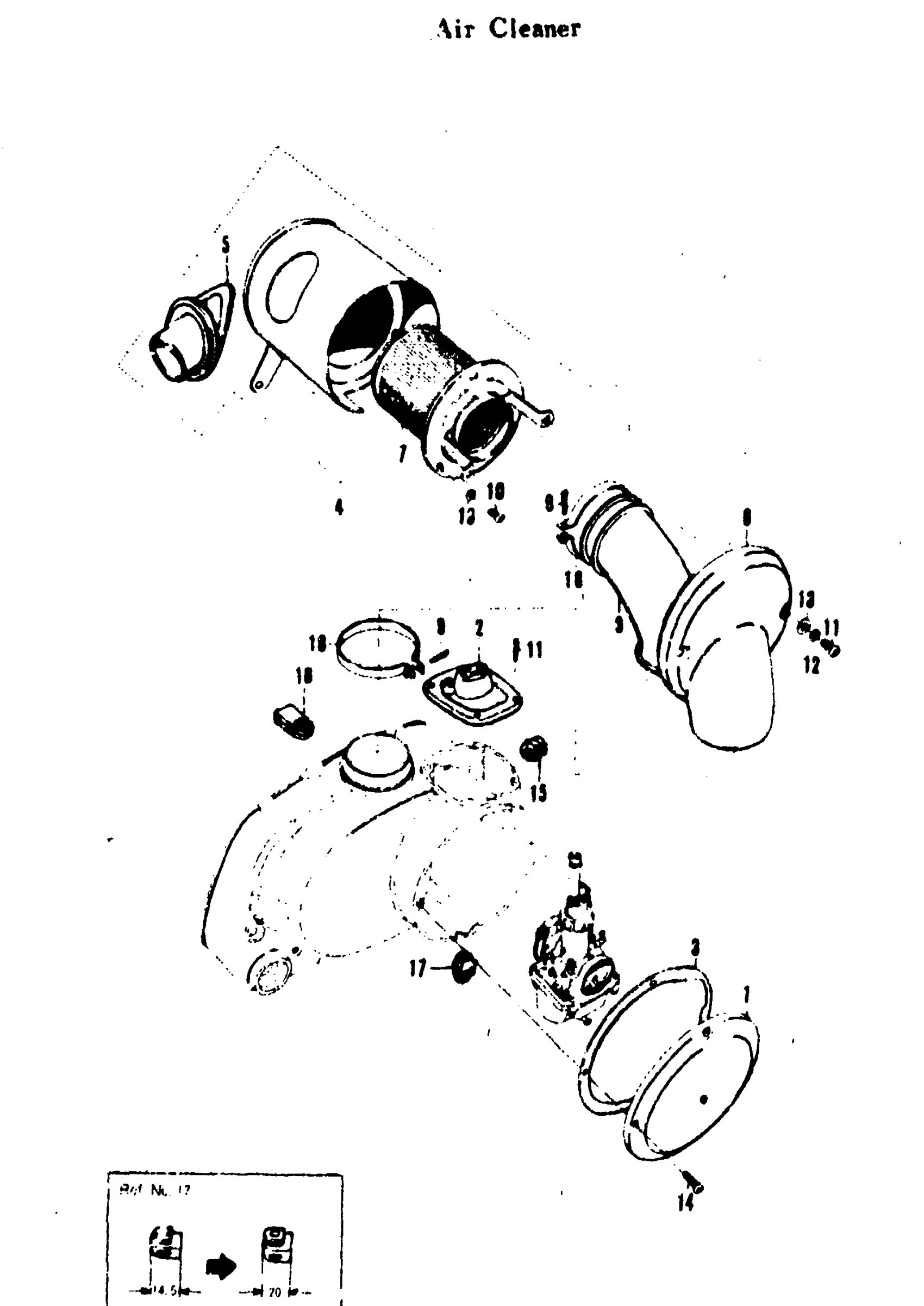

Suzuki A100 (1969) AIR CLEANER Diagram

#

Description
Price

1

CARBORATOR COVER | 00

11383-12000

Unavailable

2

COVER,CARBURETO | 00 This part replaces 11440-12001.

11440-12003

$22.62

3

CARBORATOR COVER GASKET | 00

11492-12002

Unavailable

4

CLEANER ASSY, AIR | 00 This part replaces 13700-12021.

13700-12022-019

Unavailable

5

AIR CLEANER INLET PIPE | 00

13721-12020

Unavailable

6

RIGHT AIR CLEANER CAP | 00

13771-12000

Unavailable

7

AIR CLEANER ELEMENT | 00

13780-12021

Unavailable

8

AIR CLEANER HOSE | 00

13881-12000

Unavailable

9

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

9

CROSS HEAD SCREW

02111-04161

Unavailable

10

CROSS HEAD SCREW

02111-05128

Unavailable

10

CROSS HEAD SCREW

02111-05121

Unavailable

11

SCREW This part replaces 02111-05168.

02112-05167

$1.97

11

CROSS HEAD SCREW

02111-05161

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

WASHER This part replaces 08322-21058.

08322-01057

$2.13

14

CARBORATOR COVER SCREW | CREW L=14(0.55) ISO

09125-05102

$1.61

14

CARBORATOR COVER SCREW | 14(0.55)

09125-05002

Unavailable

15

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25

16

AIR VENT HOSE GROMMET

09309-04001

Unavailable

17

GROMMET This part replaces 09309-04004.

09309-04006

$1.49

17

OVERFLOW HOSE GROMMET

09309-04002

Unavailable
