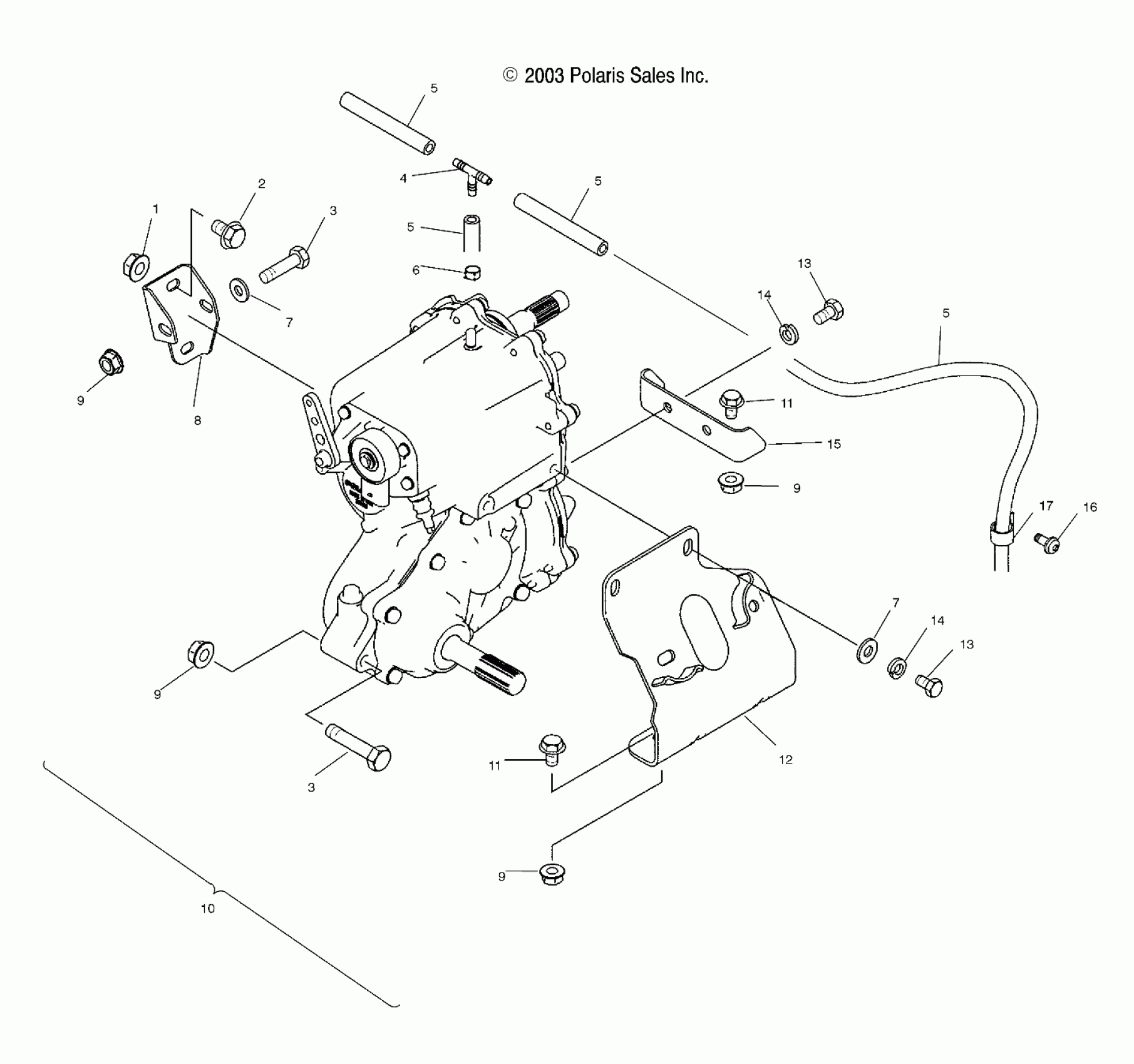

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA TRANSMISSION MOUNTING - A04JD50AA/AB/CA (4977487748D04) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.19

2

Screw (If built after 7/01/03)

7512377

$4.76

2

Screw (If built before 7/01/03)

7515398

$2.38

3

SCREW

7515417

$4.76

3

SCREW

7515417

$4.76

4

Fitting, Tee, Barbed

7052075

$9.52

5

Line

8450003

Unavailable

5

Line

8450003

Unavailable

5

Line

8450003

Unavailable

5

Line

8450003

Unavailable

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

7

Washer, Flat

7555976

$3.97

7

Washer, Flat

7555976

$3.97

8

Mount, Rear Transmission

5247343

Unavailable

9

NUT, FLANGE, LOCK

7547108

$4.76

9

NUT, FLANGE, LOCK

7547108

$4.76

9

NUT, FLANGE, LOCK

7547108

$4.76

9

NUT, FLANGE, LOCK

7547108

$4.76

10

ASM., MAIN GEARCASE [SEE GEARCASE PG. FOR DETAILS]

----

Unavailable

11

Screw

7517289

$3.29

11

Screw

7517289

$3.29

12

Mount, Rear Engine

1013134-067

Unavailable

13

Bolt

7515522

$3.97

13

Bolt

7515522

$3.97

14

Washer, Spring Lock

7552603

$0.79

14

Washer, Spring Lock

7552603

$0.79

15

Mount, Transmission

5242820-067

$7.38

16

Screw (If built after 7/01/03)

7512024

$4.76

17

Clamp, Hose (If built after 7/01/03)

7080693

$5.56
