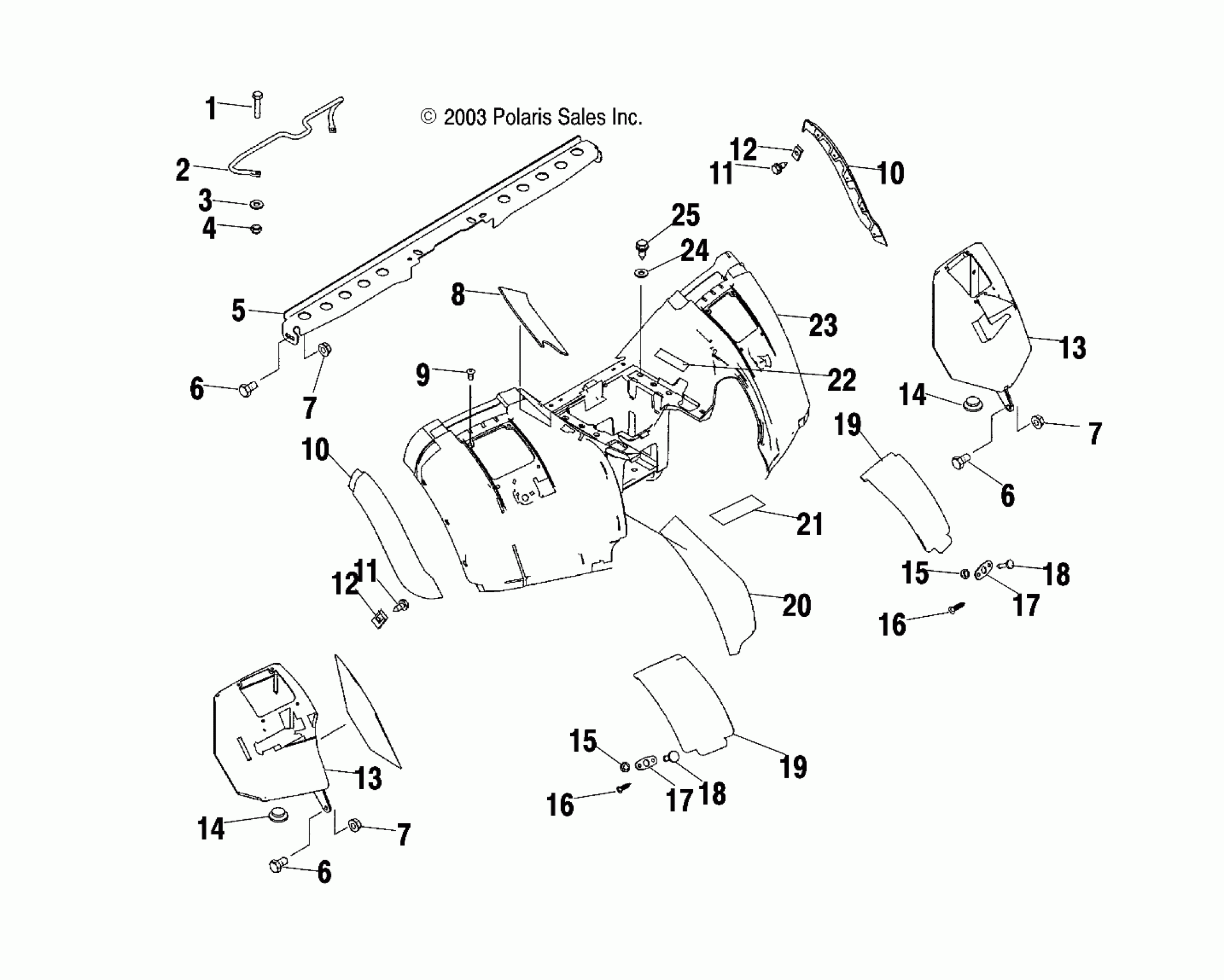

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA REAR CAB - A04JD50AA/AB/CA (4985938593A07) Diagram

#

Description
Price

1

Bolt

7511930

$2.39

2

Retainer, Seat Latch

5334292

$33.91

3

WASHER

7555792

$4.79

4

Nut, Nylok

7541925

$1.49

5

Support, Compartment

5247389-067

$54.76

6

Screw

7512297

$5.59

6

Screw

7512297

$5.59

6

Screw

7512297

$5.59

7

NUT, FLANGED, NYLOK

7542153

$1.59

7

NUT, FLANGED, NYLOK

7542153

$1.59

7

NUT, FLANGED, NYLOK

7542153

$1.59

8

Foil, Rear Cab, Inside

5812505

$5.71

9

Screw

7517299

Unavailable

10

Guard, Mud, Rear, LH

5434797-070

Unavailable

10

Guard, Mud, Rear, RH

5434798-070

Unavailable

10

Guard, Mud, Rear, LH

5434797-070

Unavailable

10

Guard, Mud, Rear, RH

5434798-070

Unavailable

11

SCREW

7512232

$1.49

11

SCREW

7512232

$1.49

12

NUT, SPEED

7670057

$1.49

12

NUT, SPEED

7670057

$1.49

13

Compartment, Rear, Cab, LH

5434904

$31.35

13

Compartment, Rear, Cab, RH

5434905

$30.55

13

Compartment, Rear, Cab, LH

5434904

$31.35

13

Compartment, Rear, Cab, RH

5434905

$30.55

14

Plug, Compartment

5412352

Unavailable

14

Plug, Compartment

5412352

Unavailable

15

Grommet, Rubber, Mount

5410774

Unavailable

15

Grommet, Rubber, Mount

5410774

Unavailable

16

SCREW

7512076

$1.49

16

SCREW

7512076

$1.49

17

Plate, Spear

5246946

Unavailable

17

Plate, Spear

5246946

Unavailable

18

PIN-CATCH

5246693

$9.59

18

PIN-CATCH

5246693

$9.59

19

Cover, Compartment, Cab, LH

5434795-070

Unavailable

19

Cover, Compartment, Cab, RH

5434796-070

Unavailable

19

Cover, Compartment, Cab, LH

5434795-070

Unavailable

19

Cover, Compartment, Cab, RH

5434796-070

Unavailable

20

Foil, Rear Cab, Outside

5812506

$4.95

20

Foil, Compartment, RH

5812489

$4.95

21

Foil (If built before 6/30/03)

5811106

$8.89

21

Foil (If built after 6/30/03)

5811322

$1.99

22

Decal, 4 Stroke, Carb/Filter Info

7079902

Unavailable

23

Asm., Rear Cab (AA)(CA)

5434794-400

$364.99

23

Asm., Rear Cab (AB)

5435445-455

$529.99

24

WASHER

7555859

$1.49

25

SCREW

7512242

$2.39
