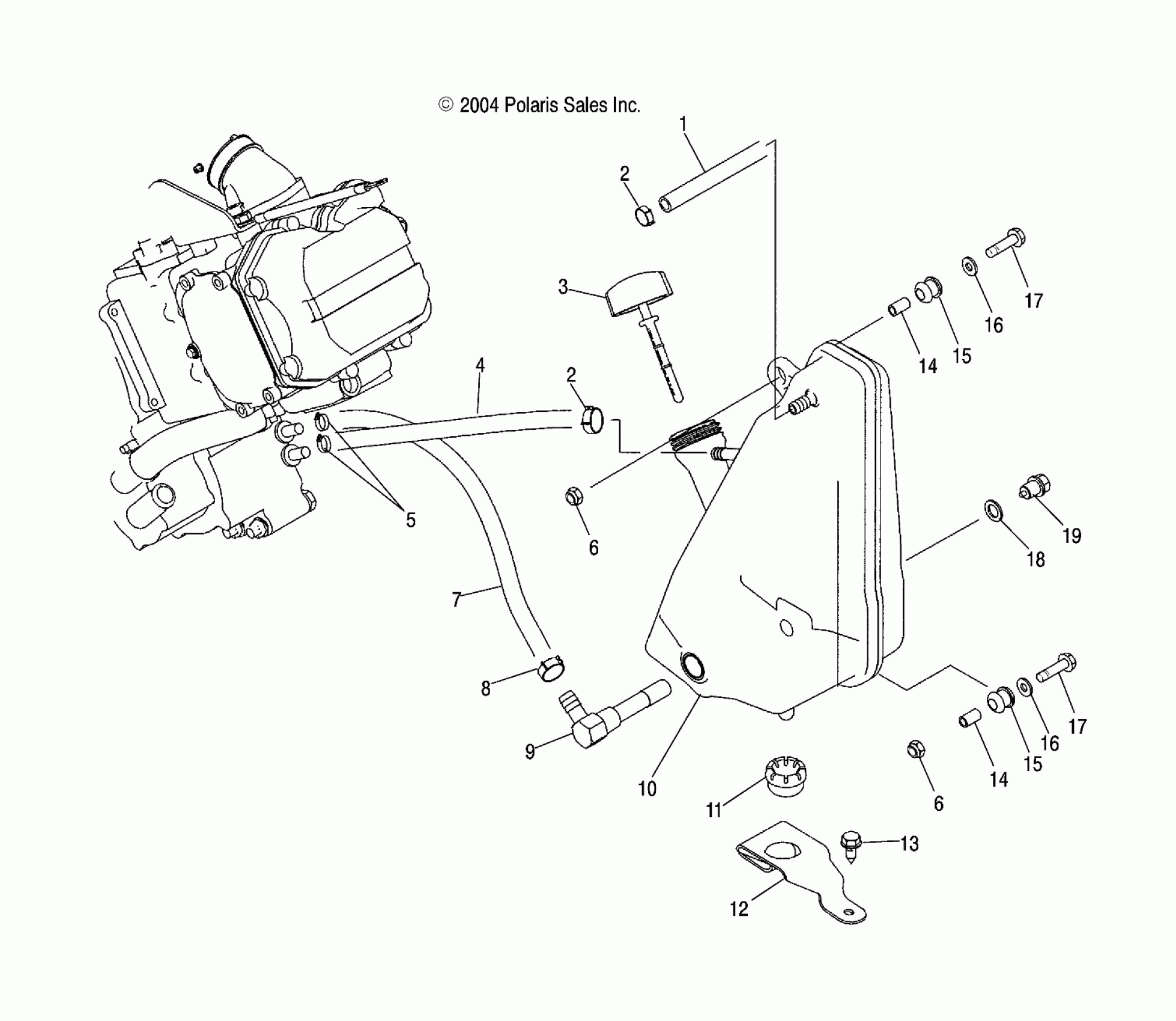

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA OIL TANK - A04JD50AA/AB/CA (4995189518B14) Diagram

#

Description
Price

1

Hose, Breather

5411873

Unavailable

2

Clamp, Hose

7080699

$1.59

2

Clamp, Hose

7080699

$1.59

3

Dipstick, Oil Tank

5434308

Unavailable

4

Line, Breather

8450073-24

Unavailable

5

CLAMP-HOSE,.875-SS

7080474

$8.40

6

Nut, Nylok

7542122

$1.49

6

Nut, Nylok

7542122

$1.49

7

Hose, Formed [Built after 1/05/04]

5412227

$32.37

7

Hose, Formed [Built before 1/05/04]

5412170

$23.81

8

CLAMP, HOSE, SPRING

7081026

$7.99

9

SCREEN, OIL FILTER, 90 DEGREE

7052326

$39.99

10

Tank, Oil

1261176

Unavailable

11

GROMMET [Built after 8/18/03]

5412507

$6.39

11

Grommet [Built before 8/18/03]

5411042

Unavailable

12

Bracket, Oil Tank, Black

5245060-067

$5.75

13

SCREW

7517386

$1.49

14

BUSHING, MOUNTING

5333204

$26.39

14

BUSHING, MOUNTING

5333204

$26.39

15

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

15

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

16

Washer, Flat

7558301

$1.49

16

Washer, Flat

7558301

$1.49

17

Bolt

7512130

$3.99

17

Bolt

7512130

$3.99

18

WASHER

5850135

$3.19

19

PLUG

7051524

$27.99
