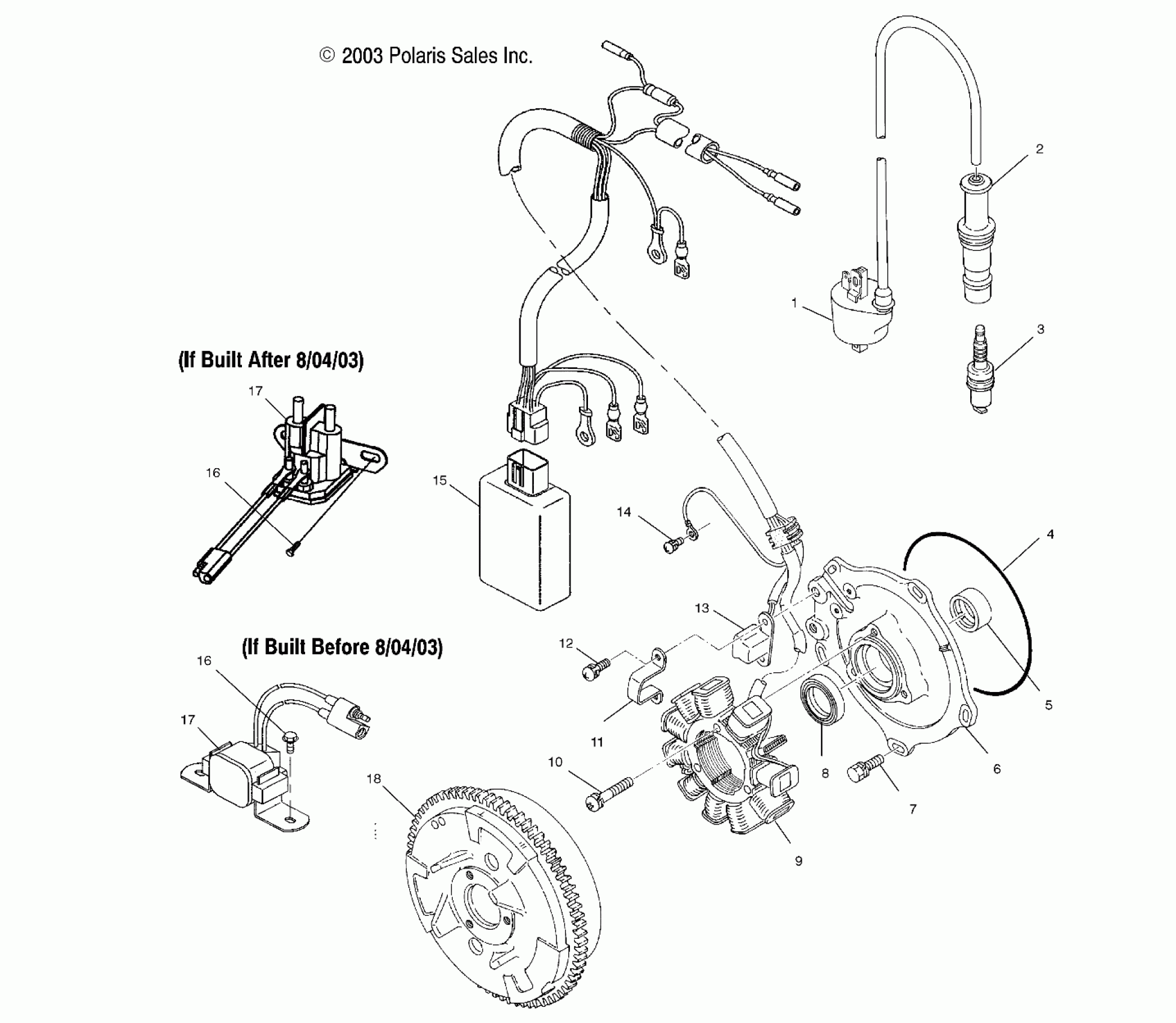

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA MAGNETO - A04JD50AA/AB/CA (4985938593E06) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3084690

Unavailable

1

Coil, Ignition

3084979

Unavailable

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark

3084997

Unavailable

4

O-RING

3084978

$35.99

5

Metal, Bearing

3084972

Unavailable

6

Plate

3086981

Unavailable

6

Asm., Plate [Incl. 5,6,8-12,14]

3089269

Unavailable

7

ASM., BOLT AND WASHER

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13]

3087168

Unavailable

10

Screw and Washer

3086985

Unavailable

11

Band, Pulse

3085554

Unavailable

12

ASM., SCREW AND WASHER

3084976

Unavailable

13

Coil, Pulser

3085360

Unavailable

14

ASM., SCREW AND WASHER

3081256

$3.19

15

CDI System

3087169

Unavailable

16

Bolt, Flange

3085359

$2.39

16

Bolt, Flange

3085359

$2.39

17

WASHER, SPRING LOCK

7552801

$1.59

17

Nut (If built before 12/15/03)

7542105

$3.99

17

Switch, Magnetic (If built before 8/04/03)

3087196

Unavailable

17

Switch, Magnetic (If built after 8/04/03)

4010930

$60.70

17

Nut (If built after 12/15/03)

7547283

$3.19

17

WASHER, SPRING LOCK

7552801

$1.59

17

Nut (If built before 12/15/03)

7542105

$3.99

17

Switch, Magnetic (If built before 8/04/03)

3087196

Unavailable

17

Switch, Magnetic (If built after 8/04/03)

4010930

$60.70

17

Nut (If built after 12/15/03)

7547283

$3.19

18

Flywheel w/Ring Gear

3087166

Unavailable
