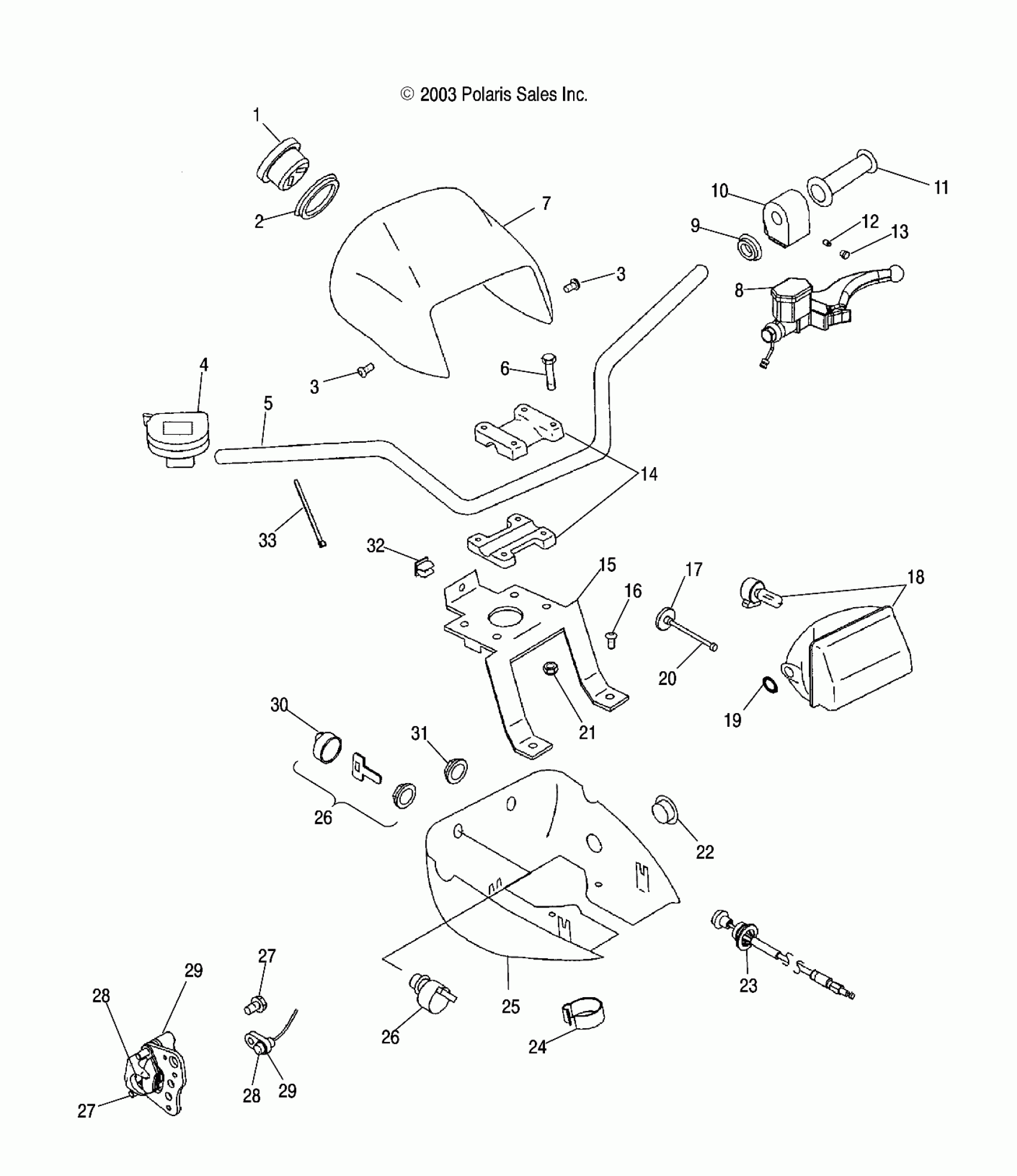

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA HANDLEBAR and HEADLIGHT POD - A04JD50AA/AB/CA (4985938593C05) Diagram

#

Description
Price

1

Asm., Cluster, ATV, w/Fuel

3280431

$343.99

2

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM. PG. B12, REF. 3]

-------

Unavailable

5

Tube, Handlebar

5242987-067

$114.99

6

SCREW

7515189

Unavailable

7

Pod, Headlight, Upper, Snap (AA)(CA)

5434706-400

Unavailable

7

Pod, Headlight, Upper (AB)

5435239-455

Unavailable

8

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG C1 FOR DETAILS]

-------

Unavailable

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, HI/LO/MODE

4010591

$127.99

11

Grip, Handlebar

5433834-070

$24.27

12

SCREW, SET

7517625

$4.79

13

PLUG, HOLE

5432952

$5.59

14

Block, Handlebar (If built after 9/29/03)

5631973

$27.99

14

Block, Handlebar Pegged (If built after 9/29/03)

5631972

$27.99

14

Block, Handlebar Pegged (If built before 9/29/03)

5631146

$10.71

14

Block, Handlebar (If built before 9/29/03)

5631147

Unavailable

15

Bracket, Pod Mounting

5244969-067

$44.99

16

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

17

KNOB, ADJUSTING

4032079

$23.99

18

KIT-HARNESS,HEADLIGHT

2204143

$71.99

18

BULB-HEADLIGHT,50 WATT

4010253

$34.99

18

Asm., Headlamp, 4x4, 50W

2410268

$109.27

19

O-RING

5410163

$1.60

20

Rod, Adjusting

4032078

Unavailable

21

Nut, Nylok

7542122

$1.49

22

Caplug

7080936

$2.39

23

CABLE, CHOKE [SEE ENGINE MOUNTING PG. B2, REF. 36]

-------

Unavailable

24

Clip, Cable Retaining (If built before 7/01/03)

7080631

$6.29

25

Pod, Headlight, Lower

5433762-177

$93.08

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

26

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

26

Switch, Key (If built after 7/01/03)

4011002

Unavailable

26

Switch, Ignition, Keystart [Incl. Key](If built before 7/01/03)

4010390

Unavailable

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

26

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

26

Switch, Key (If built after 7/01/03)

4011002

Unavailable

26

Switch, Ignition, Keystart [Incl. Key](If built before 7/01/03)

4010390

Unavailable

27

Screw

7517658

$5.59

27

Screw

7517658

$5.59

28

Cap, Hall Sensor

5132382

$23.99

28

Cap, Hall Sensor

5132382

$23.99

29

Sensor Hall Effect [Incl. 27]

4010298

$111.99

29

Sensor Hall Effect [Incl. 27]

4010298

$111.99

30

KEY SWITCH KEY COVER

5433534

$12.35

31

Nut, Choke

7080922

$3.19

32

CLIP, SCREW

7670127

$9.59

33

CABLE-TIE,DIA12-50MM,WTHR-RES. (Qty 4 if built after 7/01/03)

7080138

$2.41
