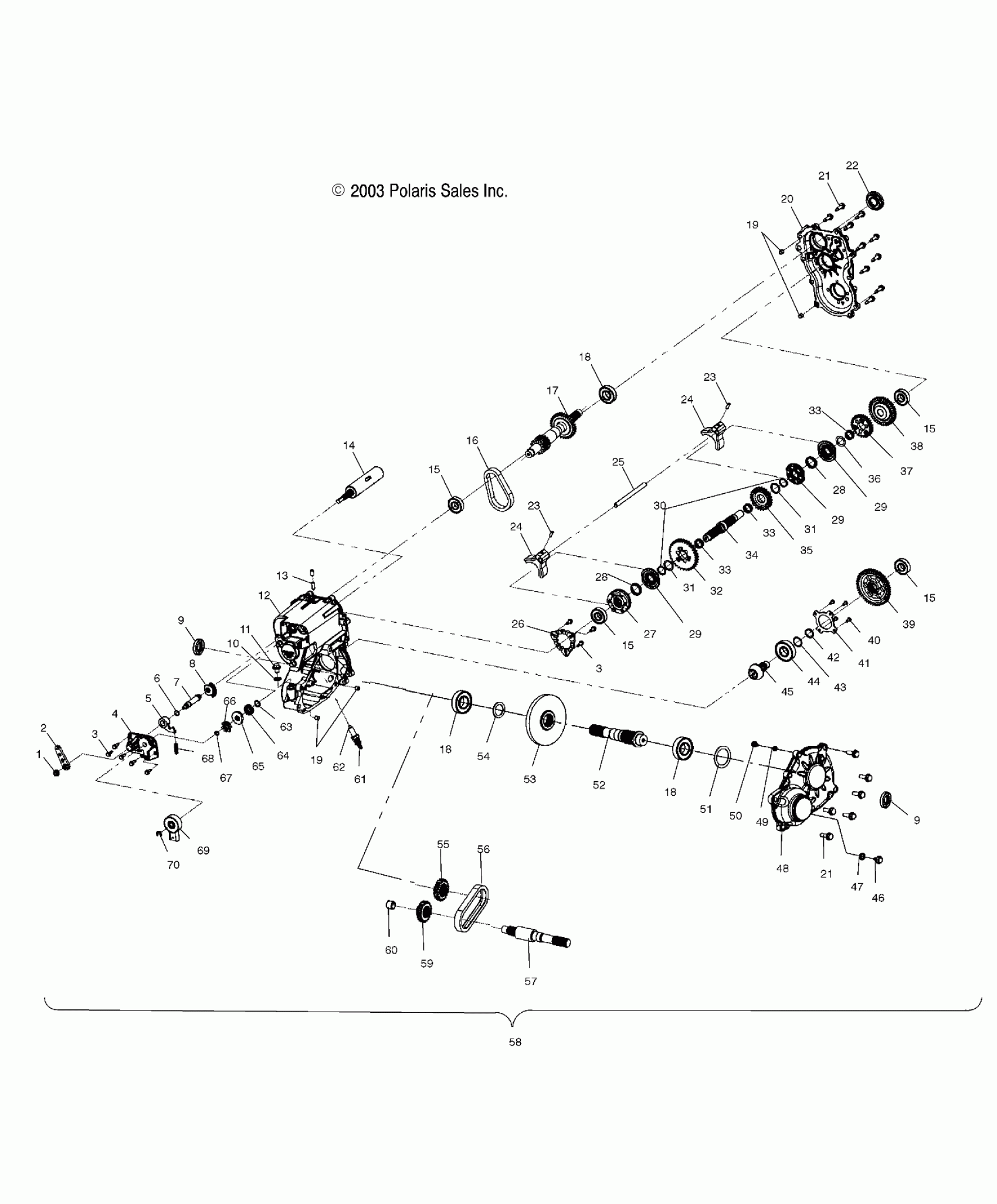

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA GEARCASE - A04JD50AA/AB/CA (4977487748D01) Diagram

#

Description
Price

1

NUT, LOCK

3233961

$3.32

2

Bellcrank

3233906

Unavailable

3

SCREW

3233826

$9.52

3

SCREW

3233826

$9.52

4

Cover

3233827

$113.32

5

Pawl, Detent

3233829

$36.41

6

O-RING

3233869

$5.65

7

SHAFT, SHIFT

3233831

$60.70

8

GEAR-SECTOR,31T

3233832

$36.41

9

Seal, Triple Lip

3233788

$32.37

9

Seal, Triple Lip

3233788

$32.37

10

Washer

3233324

$8.54

11

Plug, Oil Fill

3233711

Unavailable

12

Gearcase, Main

3233867

$569.99

13

TUBE, VENT

3233524

$9.99

14

Drum, Shift

3233910

Unavailable

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

16

Chain, Silent

3233036

Unavailable

17

Input, Sub. Asm.

3234031

$329.99

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

19

Pipe, Knock

3233529

$10.99

19

Pipe, Knock

3233529

$10.99

20

Cover, LH

3233865

Unavailable

21

Screw, Tapping

3233846

$7.14

21

Screw, Tapping

3233846

$7.14

22

Seal, Dual Lip

3233874

$32.37

23

Pin, Dowel

----

Unavailable

23

Pin, Dowel

----

Unavailable

24

Subasm., Fork, Shift w/Pin [Incl. 23]

3234141

Unavailable

24

Subasm., Fork, Shift w/Pin [Incl. 23]

3234141

Unavailable

25

RAIL, SHIFT SHAFT

3233860

$64.99

26

Plate

3233915

$40.46

27

Dog, Engagement

3234040

Unavailable

28

SPRING, WAVE

3234144

$33.24

28

SPRING, WAVE

3234144

$33.24

29

Dog, Engagement

3233875

$165.94

29

Dog, Engagement

3233875

$165.94

29

Dog, Engagement

3233875

$165.94

30

RING, RETAINING

3233850

$10.32

31

WASHER

3233851

$10.32

31

WASHER

3233851

$10.32

32

Gear, 33T

3234027

$133.99

33

BEARING, NEEDLE

3233718

$35.71

33

BEARING, NEEDLE

3233718

$35.71

33

BEARING, NEEDLE

3233718

$35.71

34

Shaft, Reverse

3233853

Unavailable

35

Sprocket, 24T

3233854

$169.99

36

WASHER

3233855

$10.32

37

Gear, 31T

3234030

Unavailable

38

Gear, 40T

3233913

Unavailable

39

Gear, 44T

3234039

$129.49

40

Screw

3233608

$5.99

41

Cover, Bearing Center Drive

3233609

$19.99

42

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

43

SPACER

3233357

$24.99

44

Bearing, Ball

3233607

$36.41

45

Subasm., Ground Spiral Bevel [Incl. 53]

3234912

Unavailable

46

Plug

3233777

$34.99

47

Washer

3233254

$8.08

48

Cover, Output, Front

3233781

Unavailable

49

SHIM

3233583

$33.24

50

THRUST BUTTON

3233582

$8.99

51

SHIM

3233611

$34.99

52

Shaft, Output, Rear

3233622

Unavailable

53

Subasm., Ground Spiral Bevel [Incl. 45]

3234912

Unavailable

54

WASHER,THRUST

3233619

$24.99

55

SPROCKET, 22T/18T

3233873

$124.99

56

CHAIN, SILENT

3233784

$93.08

57

SHAFT,FRONT OUTPUT

3233625

$141.65

58

Asm., Gearcase

1341446

Unavailable

59

SPROCKET-22T

3233844

$144.99

60

BUSHING-GARLOCK

3233552

$23.81

61

Clamp, Tie

3234013

Unavailable

62

Lockout, Park

3233917

Unavailable

63

O-Ring

3233548

$33.24

64

GEAR, 16T

3233839

$36.41

65

DISC, LOCKOUT

3233838

$33.24

66

Star, Detent

3234082

$42.74

67

O-RING

3233076

$6.46

68

SPRING, COMPRESSION

3233830

$10.32

69

SWITCH

3233835

$142.49

70

RING, RETAINING

3233834

$10.32
