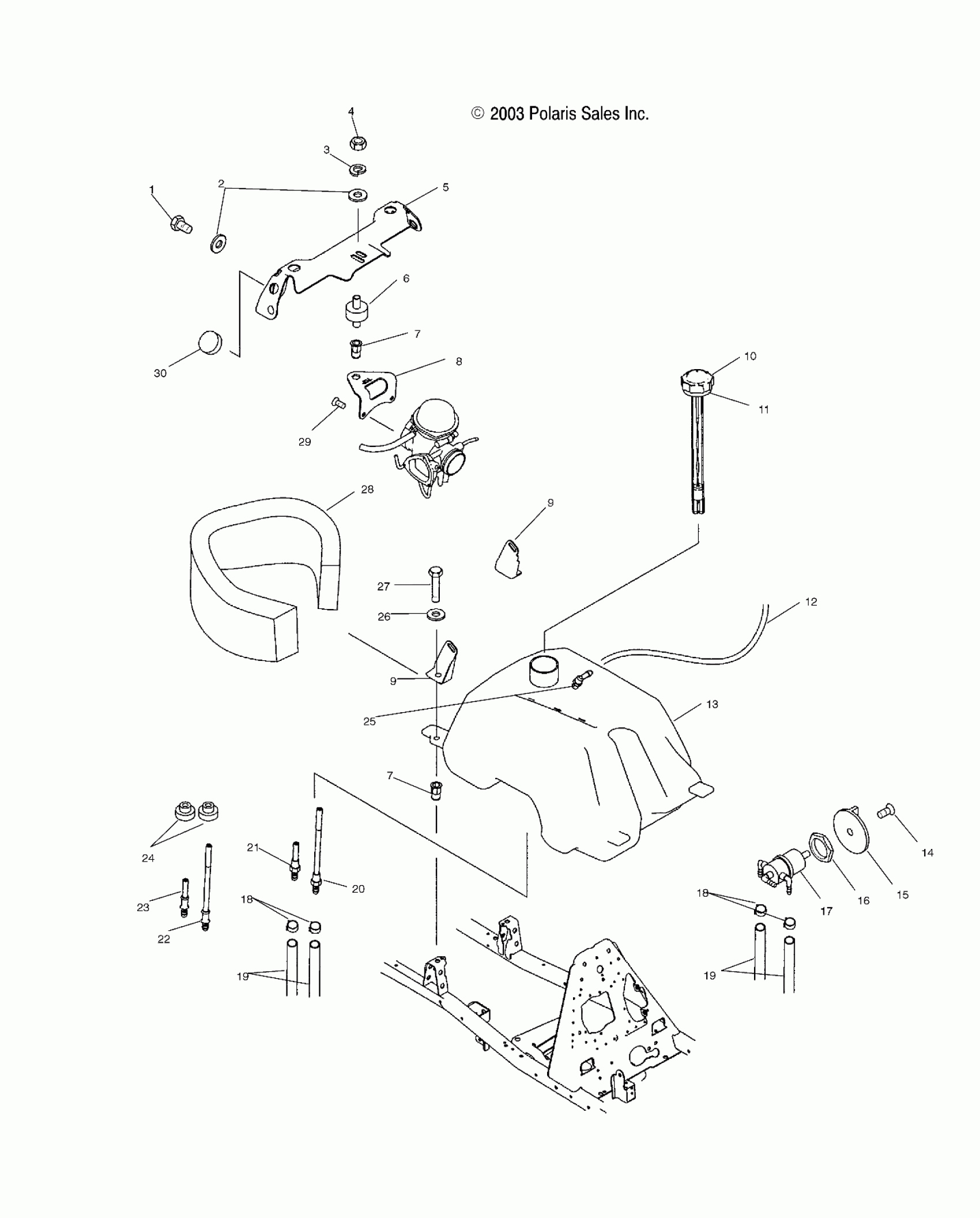

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA FUEL TANK and CARBURETOR MOUNTING - A04JD50AA/AB/CA (4985938593B03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

Washer, Flat

7555859

$1.49

3

Washer, Lock

7552801

$1.59

4

NUT

7542105

$3.99

5

Bracket, Carburetor Support

5245672-067

$13.19

6

MOUNT, CARBURETOR

3110050

$12.99

7

Nutsert

7547069

$3.99

7

Nutsert

7547069

$3.99

8

Mount, Carb

5246945

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

10

Gauge, Fuel

2873628

$15.99

11

GASKET

5812123

$5.65

12

LINE, FUEL

8360009-600

Unavailable

13

Asm., Fuel Tank [Incl. 20,21,25] [If built before 3/01/03]

2520143

Unavailable

13

Asm., Fuel Tank [Incl. 20,21,25] [If built after 3/01/03]

2520359

Unavailable

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

Line, Fuel

8450103

Unavailable

19

Line, Fuel

8450103

Unavailable

20

Fitting, Fuel Outlet, Main [If built before 3/01/03][For use with 2520143]

7052150

$27.99

21

Fitting, Fuel Outlet, Reserve [If built before 3/01/03][For use with 2520143]

7052149

$23.99

22

Fitting, Main, Press In [If built after 3/01/03][For use with 2520359]

7052347

Unavailable

23

Fitting, Res., Press In [If built after 3/01/03][For use with 2520359]

7052346

$27.99

24

Grommet [If built after 3/01/03][For use with 2520359]

7052362

$9.99

25

Vent, Tank

5431053

$19.99

26

Washer, Flat

7558301

$1.49

27

Bolt

7512277

$4.79

28

Seal, Foam

5811942

Unavailable

29

Screw and Washer

3084205

$3.99

30

Bumper, Rubber

5410414

$3.19
