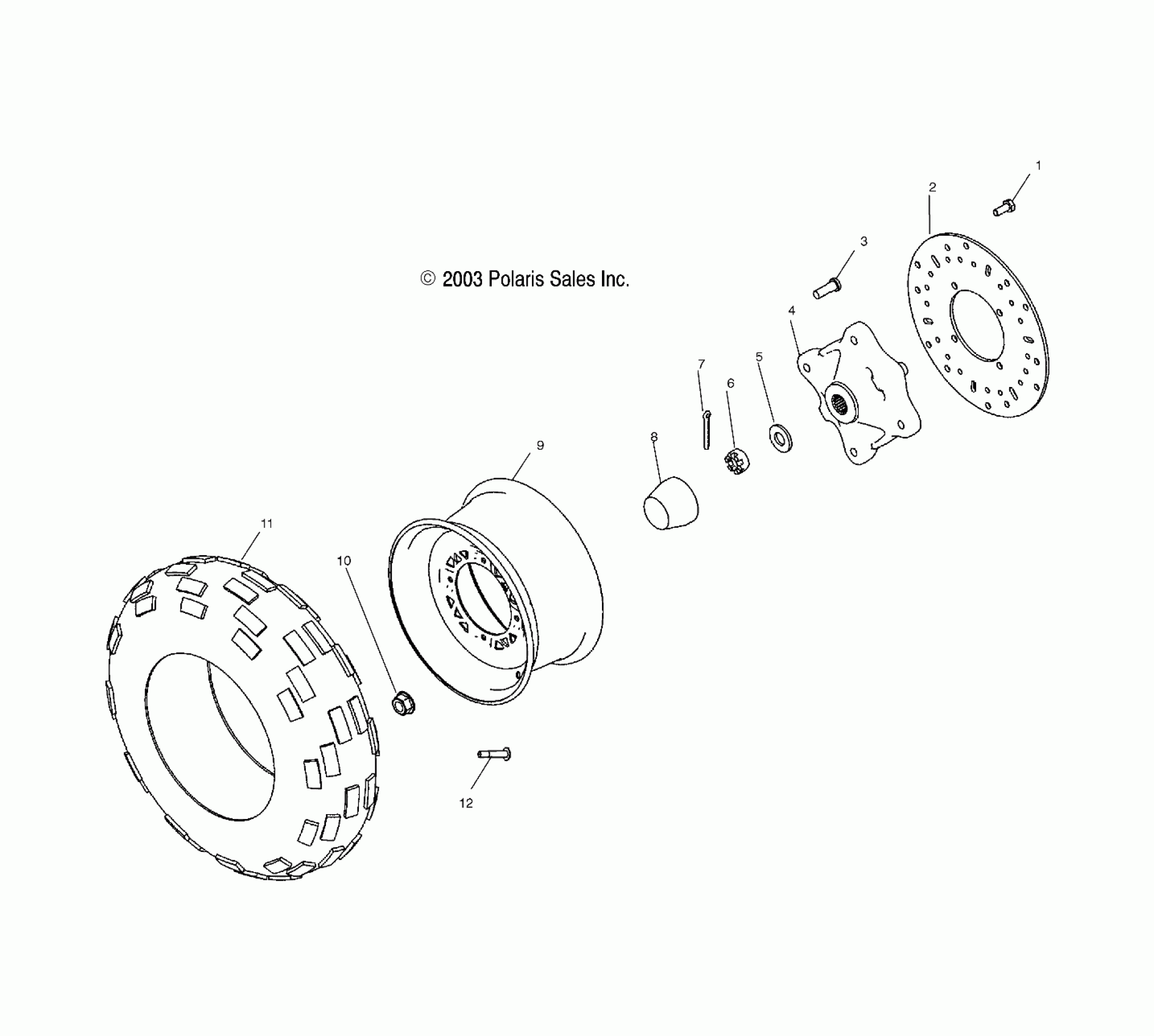

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA FRONT WHEEL - A04JD50AA/AB/CA (4985938593B09) Diagram

#

Description
Price

1

BOLT

7512325

$2.38

2

DISC-BRAKE,8.95 OD,.158

5244314

$76.89

3

Stud

7515513

$1.19

4

Hub, Wheel, AWD (If built after 10/20/03)

5134310

$93.32

4

Hub, Wheel, AWD (If built before 10/20/03)

5133360

Unavailable

5

WASHER

7556004

$7.14

6

NUT, SLOTTED

7542810

$3.17

7

PIN, COTTER

7661401

$0.79

8

Hub, Dust Cover

5411164

$28.32

9

Rim, Front (AB)(If built after 1/12/04)

1520269-067

$90.87

9

Rim, Front (AB)(If built before 1/12/04)

1520563-067

$90.87

9

Rim, Front (AA)(CA)(If built after 1/12/04)

1520269-486

$90.87

9

Rim, Front (AA)(CA)(If built before 1/12/04)

1520563-385

$90.87

10

NUT, FLANGE

7547237

$2.38

11

Tire, Front [25x8-12]

5412396

$99.74

12

VALVE-RIM

1525017

$6.46
