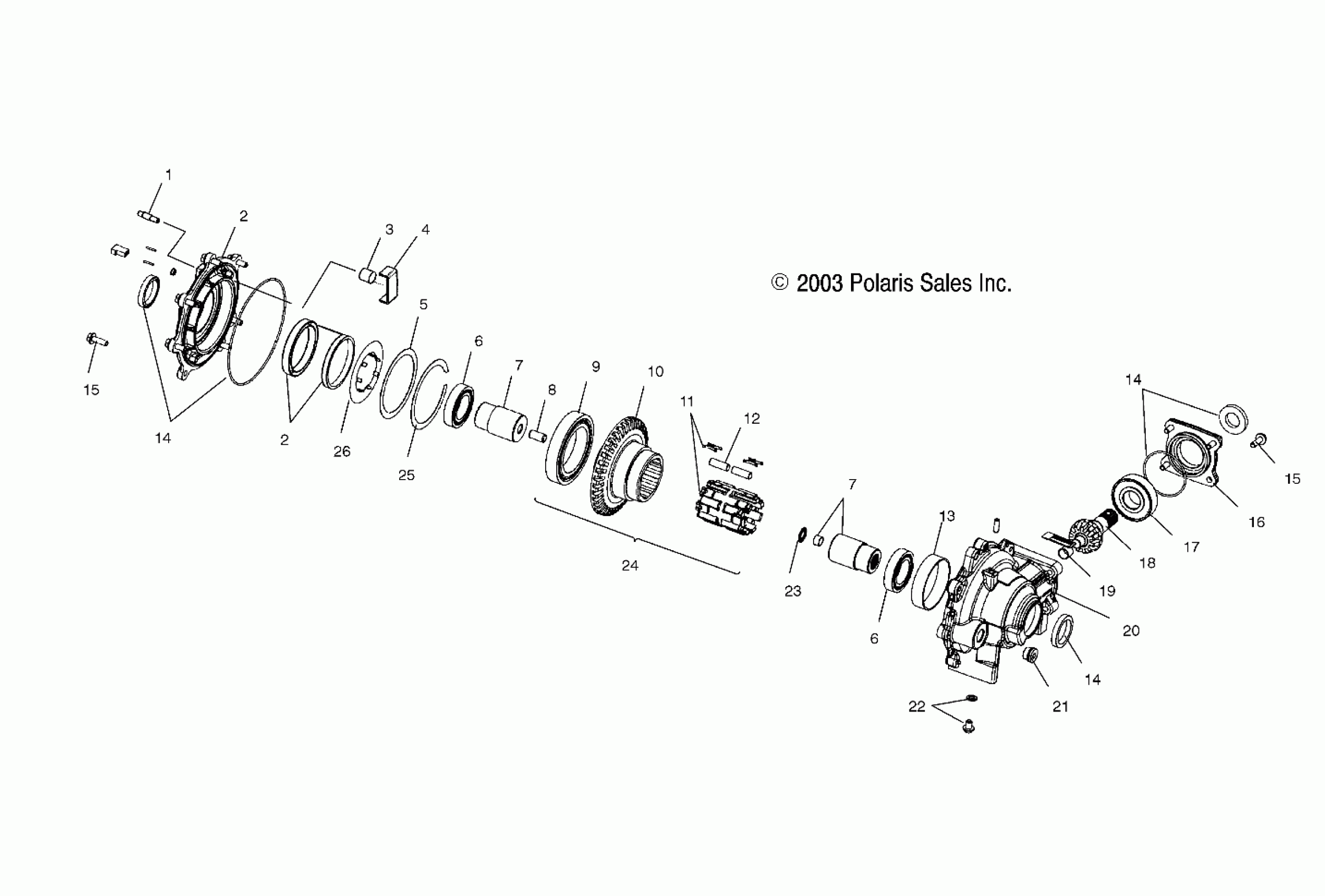

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA FRONT HOUSING - A04JD50AA/AB/CA (4987258725D01) Diagram

#

Description
Price

-

Kit, Bolt

3233955

$31.99

-

Asm., Front Gearcase (If built before 7/14/03)

1341344

$1,909.99

-

Asm., Front Gearcase (If built after 7/14/03)

1341497

$1,909.99

1

Screw, Set (1341497)

3234163

Unavailable

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil](1341497)

3234159

$440.69

2

Asm., Cover Plate [Incl. Output Cover, Insert, Seal and Coil](1341344)

3234093

$1,909.99

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil](1341497)

3234159

$440.69

2

Asm., Cover Plate [Incl. Output Cover, Insert, Seal and Coil](1341344)

3234093

$1,909.99

3

Button, Thrust (1341497)

3234164

Unavailable

4

Plate, Thrust (1341497)

3234165

$23.99

5

Kit, Shim Set [Incl. Shims](1341344)

3233925

Unavailable

5

Shim, Armature Plate (1341497

3234161

$31.99

6

Bearing, Roller Ball

3233926

$59.99

6

Bearing, Roller Ball

3233926

$59.99

7

Asm., Race/Output Hub [Incl. 23]

3233953

$375.99

7

Asm., Race/Output Hub [Incl. 23]

3233953

$375.99

8

Pin, Dowel

3233928

$23.99

9

Bearing, Roller Ball (1341344)

3233932

Unavailable

10

Clutch Housing/Ring Gear (1341344)

3233933

$646.83

10

Clutch Housing/Ring Gear (1341497)

3234166

$951.17

11

Asm., Roll Cage [Incl. Spring and Roll Cage]

3234167

Unavailable

11

Spring

-------

Unavailable

12

Kit, Roll

3233957

$135.99

13

BUSHING (1341497)

-------

Unavailable

13

BUSHING (1341344)

-------

Unavailable

14

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

14

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

14

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

15

Bolt

3233918

Unavailable

15

Bolt

3233918

Unavailable

16

Cover, Input

3233947

Unavailable

17

Bearing, Roller Ball

3234112

$59.99

18

Shaft, Pinion, 11T

3233944

Unavailable

19

BUSHING

-------

Unavailable

20

GEARCASE, LH

-------

Unavailable

21

Plug, Oil Fill

3233942

$31.99

22

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

23

Bearing, Needle, Roller Thrust

3233929

Unavailable

24

Asm., Clutch (Incl. 10-12)(1341497)

3234168

Unavailable

24

Asm., Clutch [Incl. 9-12](1341344)

3233954

$532.99

25

Ring, Retaining, Internal

3234162

$27.99

26

Plate Armature (1341344)

3233924

Unavailable

26

Plate Armature (1341497)

3234160

Unavailable
