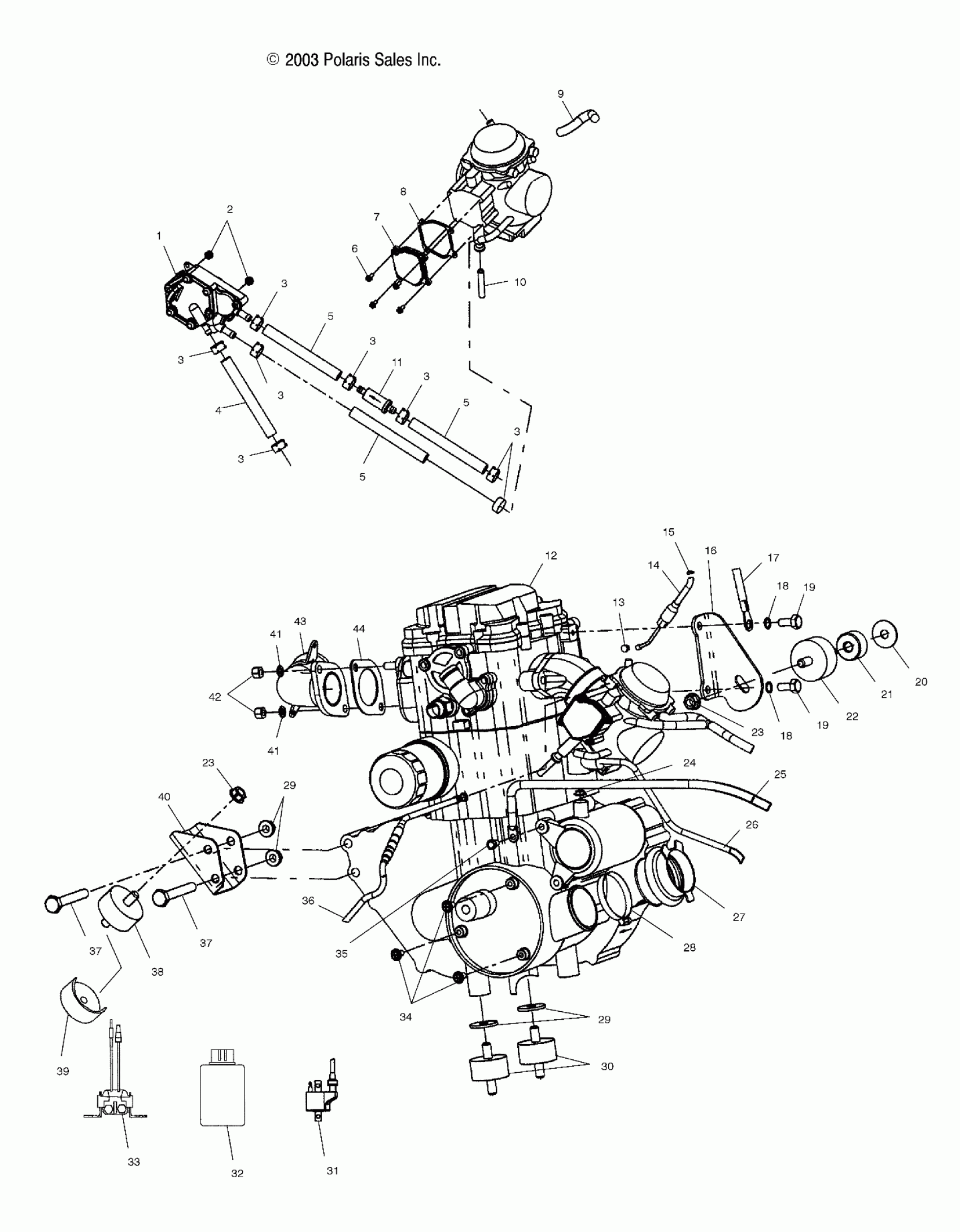

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA ENGINE MOUNTING - A04JD50AA/AB/CA (4985938593B01) Diagram

#

Description
Price

1

Asm., Fuel Pump

3085275

$77.21

2

NUT-M5X.8,HX NYL-Y

7546601

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

Line, Fuel

8450040-600

Unavailable

5

Line, Fuel

8450103

Unavailable

5

Line, Fuel

8450103

Unavailable

5

Line, Fuel

8450103

Unavailable

6

SCREW

3130535

$7.19

7

COVER

3130511

$43.99

8

O-Ring

3130512

$39.99

9

Line, Fuel

8450003-1525

Unavailable

10

LINE, FUEL

8360009-600

$40.46

11

FILTER

2530009

$5.65

12

Engine, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty c

3085556

Unavailable

13

GUIDE, CABLE

3130543

$27.99

14

Cable, Throttle

7080967

$55.99

15

O-RING

5410193

$4.99

16

Mount, Engine, Top

5242936-067

$5.75

17

Cable, Ground, Engine

4010132

Unavailable

18

WASHER, SPRING LOCK

7552901

$1.49

18

WASHER, SPRING LOCK

7552901

$1.49

19

BOLT

7512315

$4.79

19

BOLT

7512315

$4.79

20

WASHER, FLAT

7555823

$3.99

21

Spacer, Motor Mount, Top

5132007

Unavailable

22

Mount, Rubber, Top

3021045

Unavailable

23

NUT

7547108

$4.79

23

NUT

7547108

$4.79

24

NUT, FLANGE

3083649

$3.99

25

Cable, Block Battery/Engine

4010095

Unavailable

26

Cable, Solenoid/Starter

4010093

$47.99

27

Boot, Clutch, Intake (If built before 8/04/03)

5410421

$11.19

27

Boot, Clutch, Intake (If built after 8/04/03)

5412487

Unavailable

28

Clamp, Narrow Band

7080511

$4.79

29

Washer

7555815

$3.99

29

Washer

7555815

$3.99

30

Mount, Rubber, Rear

3021119

Unavailable

31

Asm., Ignition Coil

3084690

Unavailable

32

CDI System

3087169

Unavailable

33

Switch, Magnetic

3087196

Unavailable

34

Screw and Washer

3084205

$3.99

35

Bolt and Washer

3082038

$3.99

36

Cable, Choke, Friction (If built before 8/11/03)

7081008

$79.99

36

Cable, Choke, Friction (If built after 8/11/03)

7081176

$77.21

37

SCREW

7515417

$4.79

37

SCREW

7515417

$4.79

38

Mount, Rubber, Top

3110044

Unavailable

39

Torque, Stop

5245043

$15.83

40

Mount, Engine, Lower, Front

5242818-067

$40.19

41

Washer, Lock

3080530

$3.19

41

Washer, Lock

3080530

$3.19

42

Nut

3080285

Unavailable

43

Manifold

1260978-029

Unavailable

44

Gasket, Complete

3085075

$39.99
