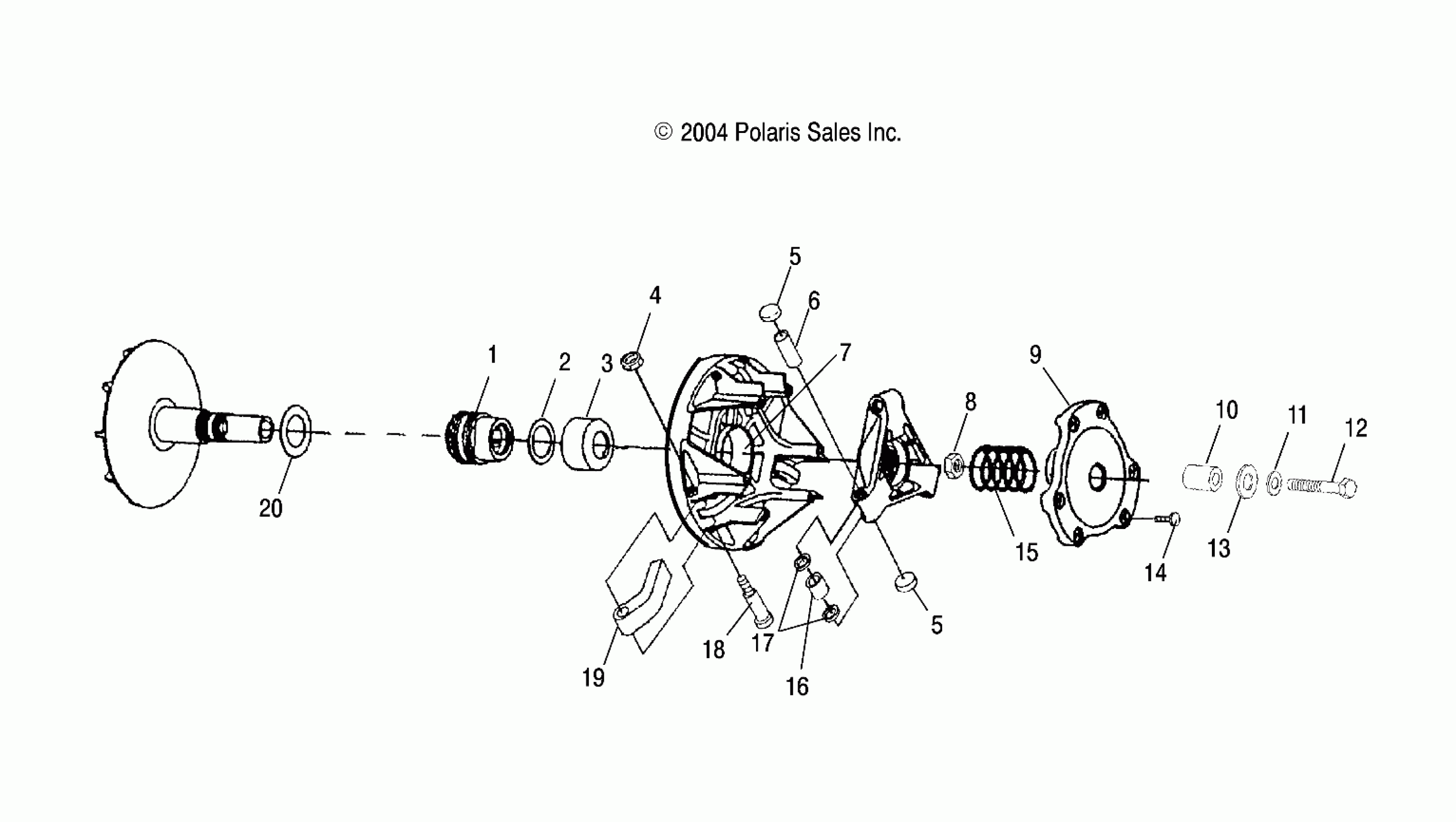

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA DRIVE CLUTCH - A04JD50AA/AB/CA (4995189518C10) Diagram

#

Description
Price

-

Asm., Drive Clutch, Braking [Incl. All Less 15,19]

1321706

$562.31

1

Asm., Clutch, One Way, Drive

1520231

$294.99

2

Washer, Brass

7556202

$6.39

3

Spacer

5631119

Unavailable

4

NUT, FLEXLOC

7541906

$3.19

5

BUTTON, CLUTCH

5431936

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

6

PIN-ROLLER

5020422

$2.39

7

Bearing

3585712

$31.99

8

Nut, Jam

7547130

Unavailable

9

COVER, BEARING

3576510

$9.59

10

BUSHING-.437 X.770 X.50

5430261

$7.19

11

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

12

BOLT

7512566

$30.79

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

14

SCREW

7518062

$4.79

15

SPRING, CLUTCH

7041157

$47.99

16

ASM-ROLLER AND BUSHING

1321457

$40.46

17

WASHER,MULTILUBE

5430945

$1.59

18

BOLT, SHOULDER

7512266

$3.19

19

Weight, Shift, 10 BH

5630711

Unavailable

20

Washer

7556204

$11.19
