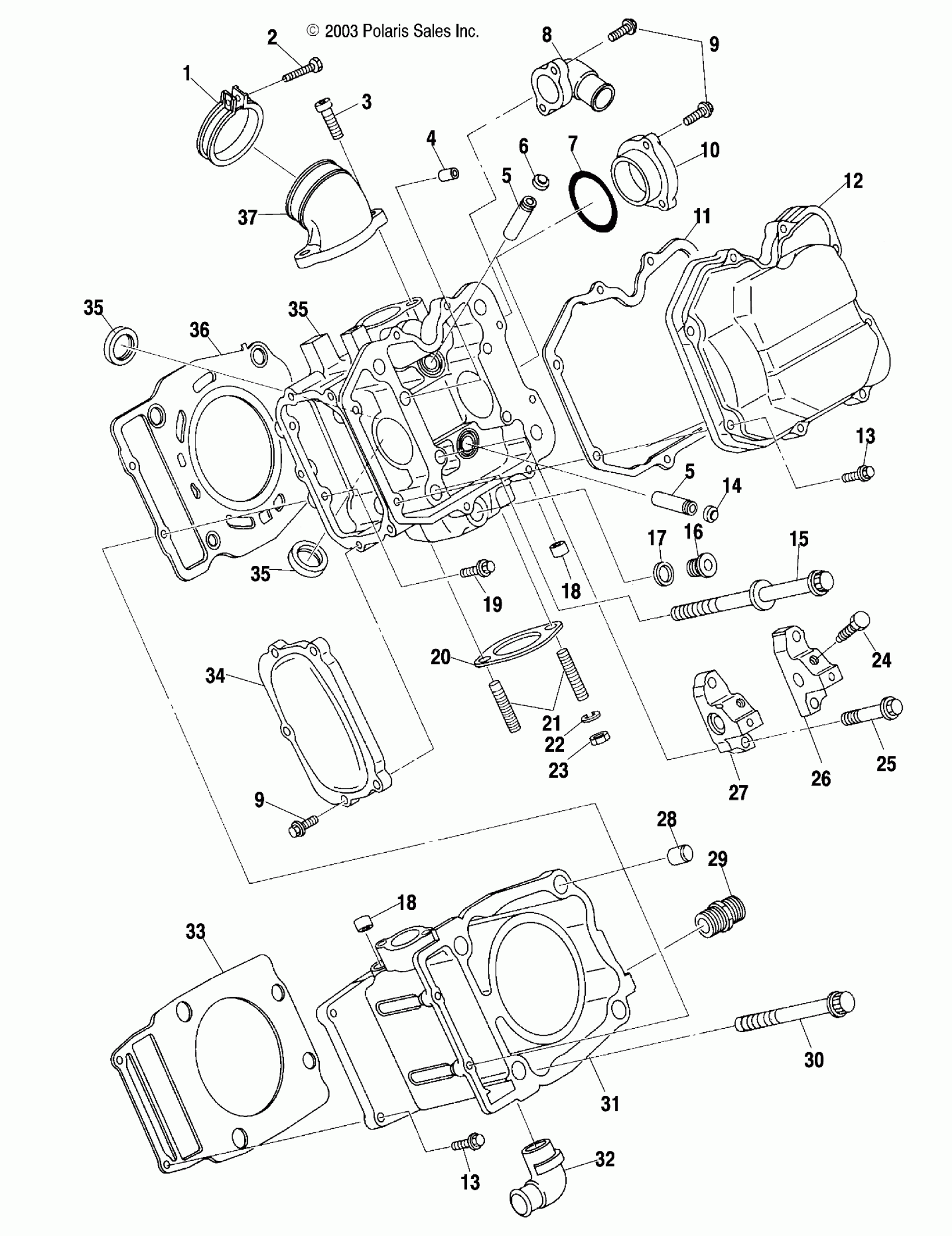

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA CYLINDER - A04JD50AA/AB/CA (4985938593D09) Diagram

#

Description
Price

1

Asm., Band, Adapter [Incl. 2]

3084045

Unavailable

2

SCREW

3081497

$2.39

3

Bolt

3081330

$3.99

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

$39.99

5

GUIDE, VALVE

3084994

$39.99

6

Seal, Intake Valve

3084858

$13.59

7

O-RING

3084867

$23.99

8

Adapter, Water Out

3085072

Unavailable

9

BOLT, FLANGE

3084877

Unavailable

9

BOLT, FLANGE

3084877

Unavailable

10

ADAPTER, CAMSHAFT

3084866

Unavailable

11

GASKET, ROCKER COVER

3085074

$31.99

12

COVER, ROCKER

3085073

$75.99

13

BOLT, FLANGE

3084874

Unavailable

13

BOLT, FLANGE

3084874

Unavailable

14

SEAL, EXHAUST VALVE

3084859

$23.99

15

Bolt, Cylinder Head

3084875

Unavailable

16

PLUG

3084860

$7.19

17

GASKET

3084861

$4.79

18

PLUG, BLIND

3084862

Unavailable

18

PLUG, BLIND

3084862

Unavailable

19

Bolt, Flange

3084215

Unavailable

20

Gasket, Exhaust

3085075

$39.99

21

Stud

3085326

Unavailable

22

Washer, Lock

3080530

$3.19

23

Nut

3087199

Unavailable

24

BOLT, ROCKER SHAFT

3085854

Unavailable

25

BOLT

3084876

$4.79

26

Support, Valve Rocker Shaft [PTO]

3084864

Unavailable

27

Support, Valve Rocker Shaft [MAG]

3084863

$91.99

28

KNOCK, PIPE

3087266

Unavailable

29

Union, Oil Pump

3084849

Unavailable

30

BOLT, FLANGE

3084873

Unavailable

31

Cylinder [Incl. 32]

3089256

$417.29

32

Pipe 2, Elbow

3084130

Unavailable

33

Gasket, Cylinder

3085370

$38.60

34

COVER, CAMSHAFT

3089242

$55.99

35

Head, Cylinder [Incl. 4-6,14,16-18,21]

3085527

$712.79

35

Head, Cylinder [Incl. 4-6,14,16-18,21]

3085527

$712.79

35

Head, Cylinder [Incl. 4-6,14,16-18,21]

3085527

$712.79

36

GASKET, HEAD

3085371

$55.99

37

ADAPTER

3085809

Unavailable
