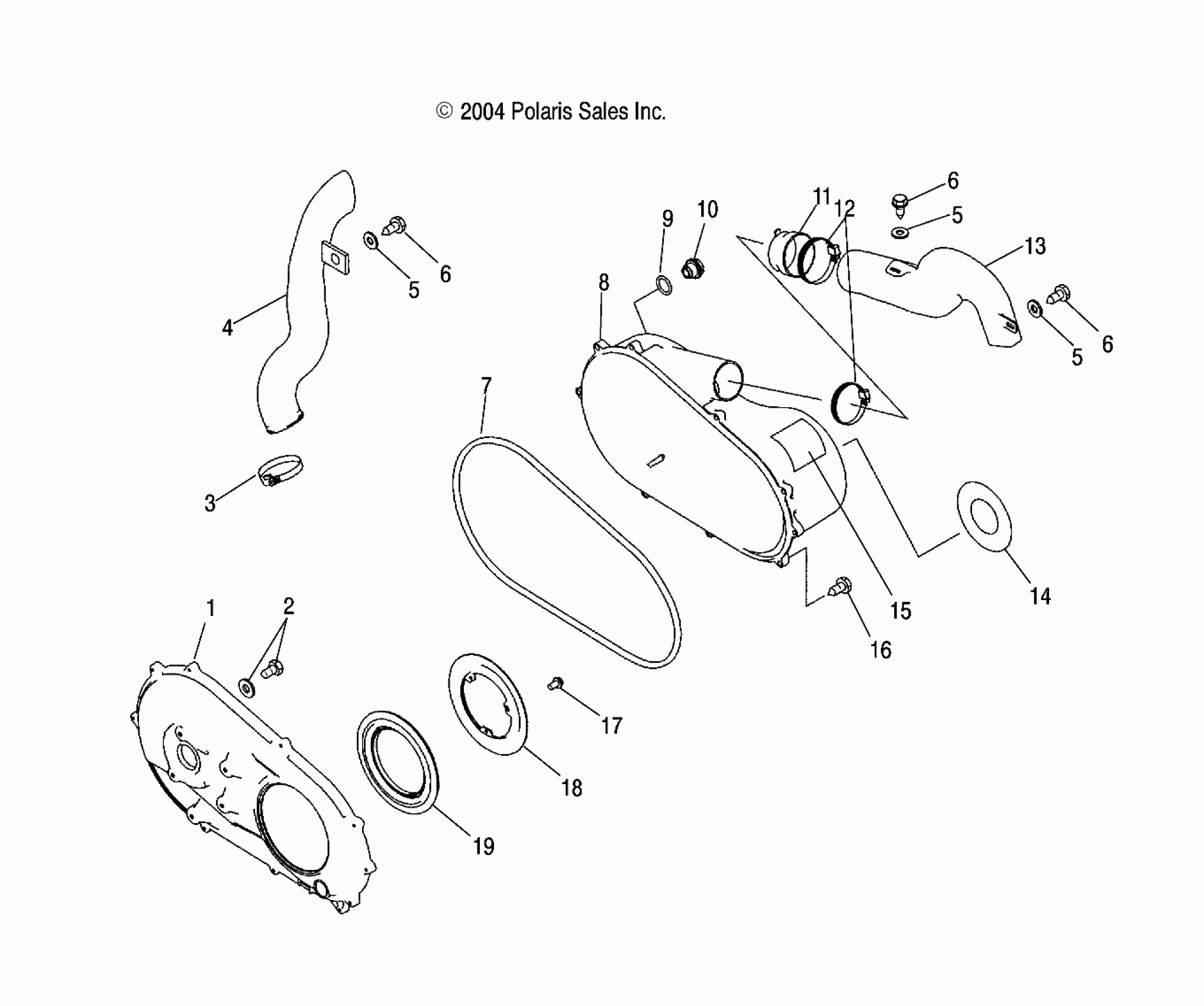

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA CLUTCH COVER - A04JD50AA/AB/CA (4995189518C12) Diagram

#

Description
Price

1

Kit, Inner Clutch Cover [Incl. 7,16,19]

2201678

$155.99

2

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

3

Clamp, Narrow Band

7080511

$4.79

4

Duct, Inlet, Down Tube

5432698

Unavailable

5

Washer, Flat

7558301

$1.49

5

Washer, Flat

7558301

$1.49

5

Washer, Flat

7558301

$1.49

6

SCREW

7517386

$1.49

6

SCREW

7517386

$1.49

6

SCREW

7517386

$1.49

7

Seal, Cover, Clutch, Outer

5521578

Unavailable

8

Asm., Clutch Cover, Outer

2633262

$169.87

9

O RING-.364X.504X.07

5410542

Unavailable

10

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

11

Boot, Duct

5411489

Unavailable

12

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

13

Duct, Air Outlet

5434213

Unavailable

14

Decal, "Automatic EBS", Transmission

7077666

Unavailable

15

Decal, Warning, Clutch Cover

7078689

Unavailable

16

SCREW

7512094

$1.59

17

ASM., SCREW AND WASHER [SEE CRANKCASE PG. D13, REF. 6]

-------

Unavailable

18

Bracket, Clutch Seal

5242046

$35.99

19

Seal, Cover Case

5410575

Unavailable
