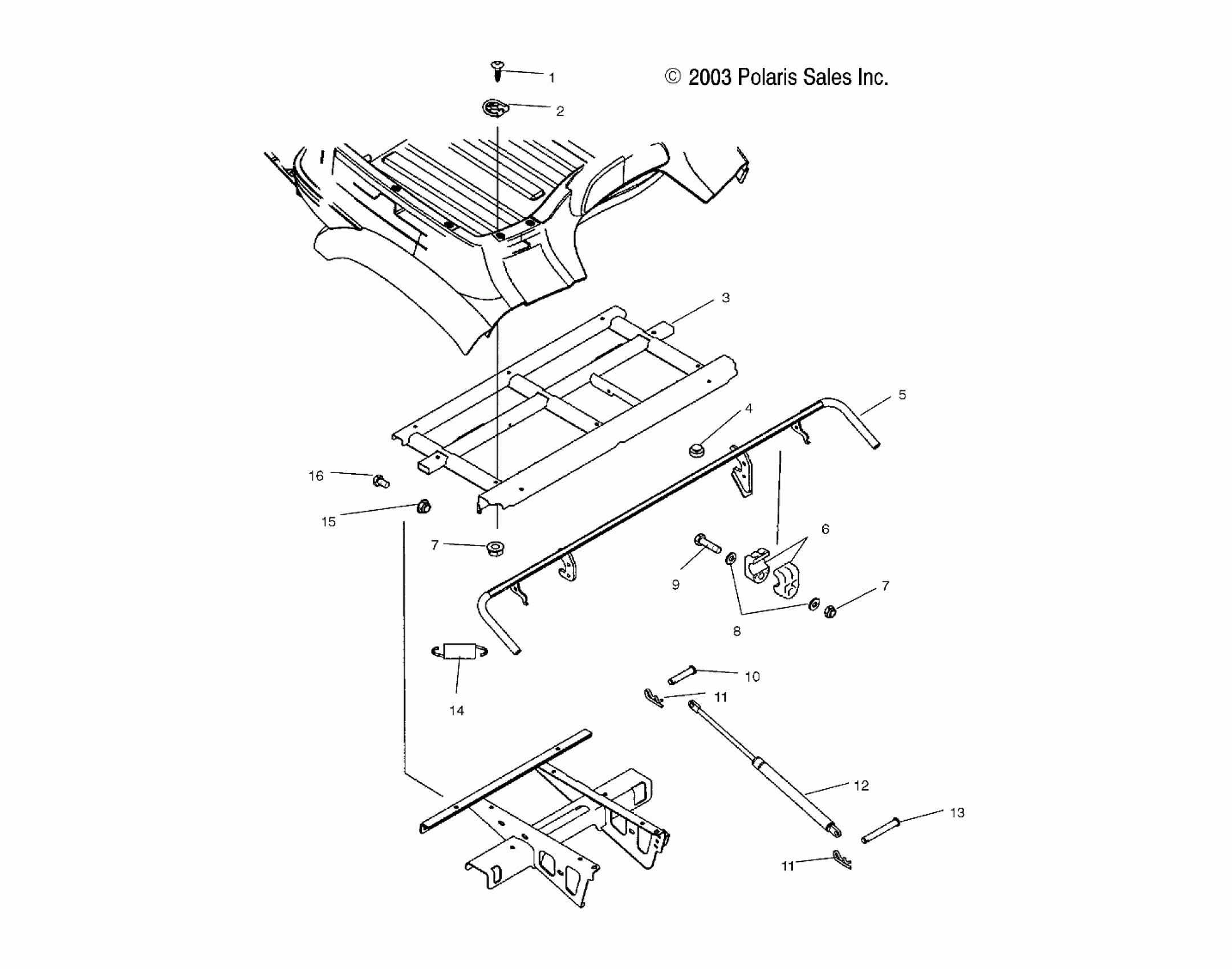

Polaris A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA BOX FRAME - A04JD50AA/AB/CA (4985938593A04) Diagram

#

Description
Price

1

SCREW

7518235

$1.59

2

Ring, Tie Down

7081101

$7.99

3

Frame, Box (If built after 9/02/03)

1014655-067

Unavailable

3

Frame, Box (If built before 9/02/03)

1014132-067

Unavailable

4

BUMPER-RUBBER

5412067

$3.99

5

Latch, Box, Rear

1014146-067

$124.99

6

BUSHING-BOX,LATCH

5434226

$3.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

BOLT

7515319

$4.79

10

Pin, Clevis (If built before 9/02/03)

7661106

$6.39

11

PIN, HITCH

7661644

$2.39

11

PIN, HITCH

7661644

$2.39

12

Shock, Dump Box

7042268

$60.70

13

Pin, Clevis (Qty. 2 if built after 9/02/03)

7661163

$3.99

14

SPRING-EXHAUST

7041687

$5.65

15

Nut, Flange

7542449

$3.99

16

Screw

7512492

$1.49
