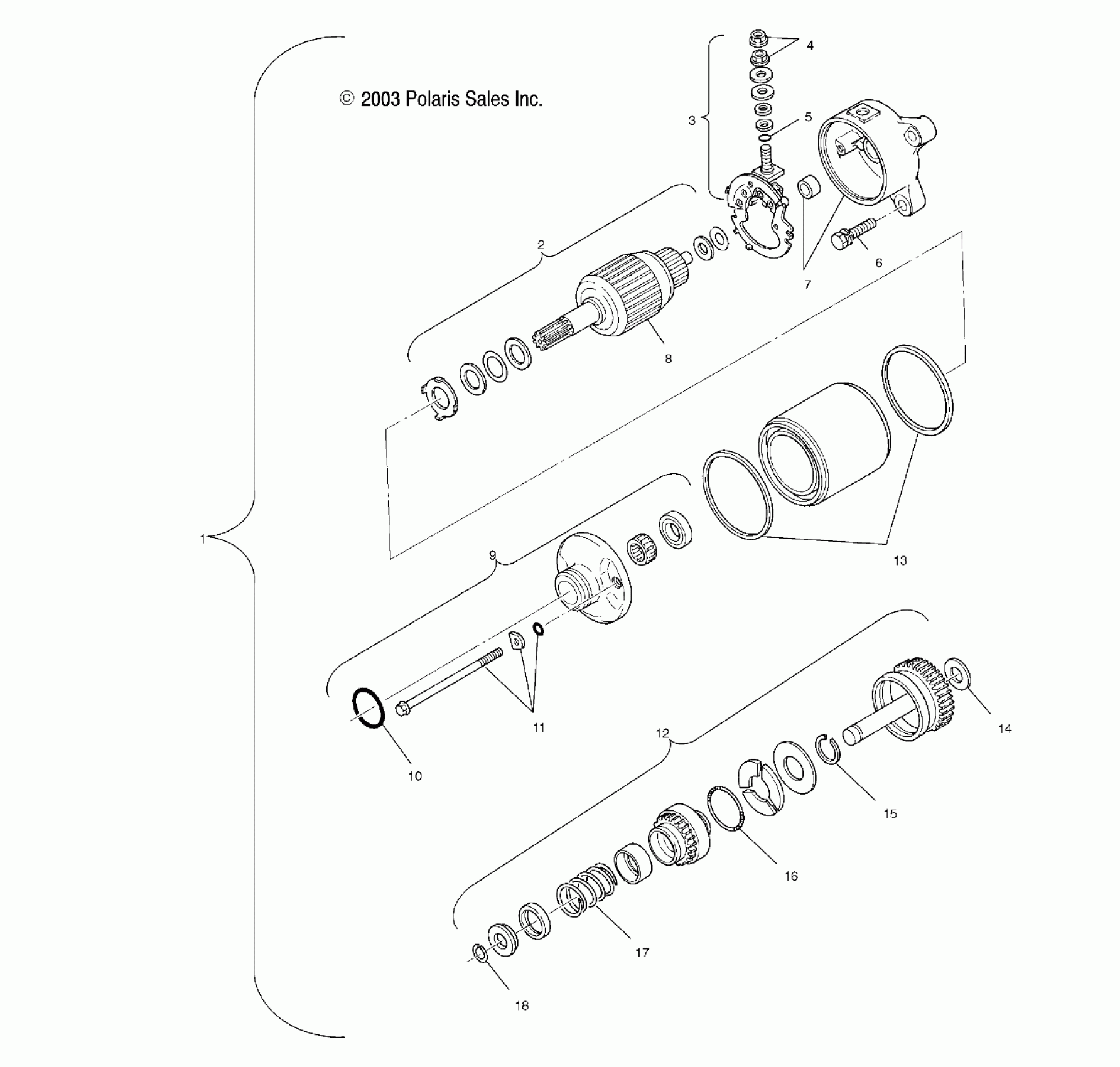

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG STARTING MOTOR - A04CH50AA/AC/AE/AG (4985938593E07) Diagram

#

Description
Price

1

Asm., Starting Motor [Incl. 2-5,7-11,13]

3084981

$427.49

2

Washer Set

3088163

Unavailable

3

Brush Set, Carbon

3088169

$125.46

4

Nut, Flange

3088166

$3.97

5

O-Ring

3088165

Unavailable

6

ASM., BOLT AND WASHER

3082038

$3.97

7

Asm., Cover, Rear

3085034

$93.08

8

Asm., Armature

3088168

Unavailable

9

Asm., Bracket, Front

3088160

$145.70

10

O-Ring

3088161

$6.99

11

Asm., Bolt Set

3088164

$23.81

12

Asm., Gear Shaft [Incl. 14-18]

3089255

$271.10

13

Ring, Rubber

3088162

Unavailable

14

Washer, Gear Shaft

3083737

$3.17

15

CLIP

3084412

$9.52

16

SPRING, WEIGHT

3084411

$15.56

17

SPRING, RETURN

3084410

Unavailable

18

CLIP

3084409

$7.14
