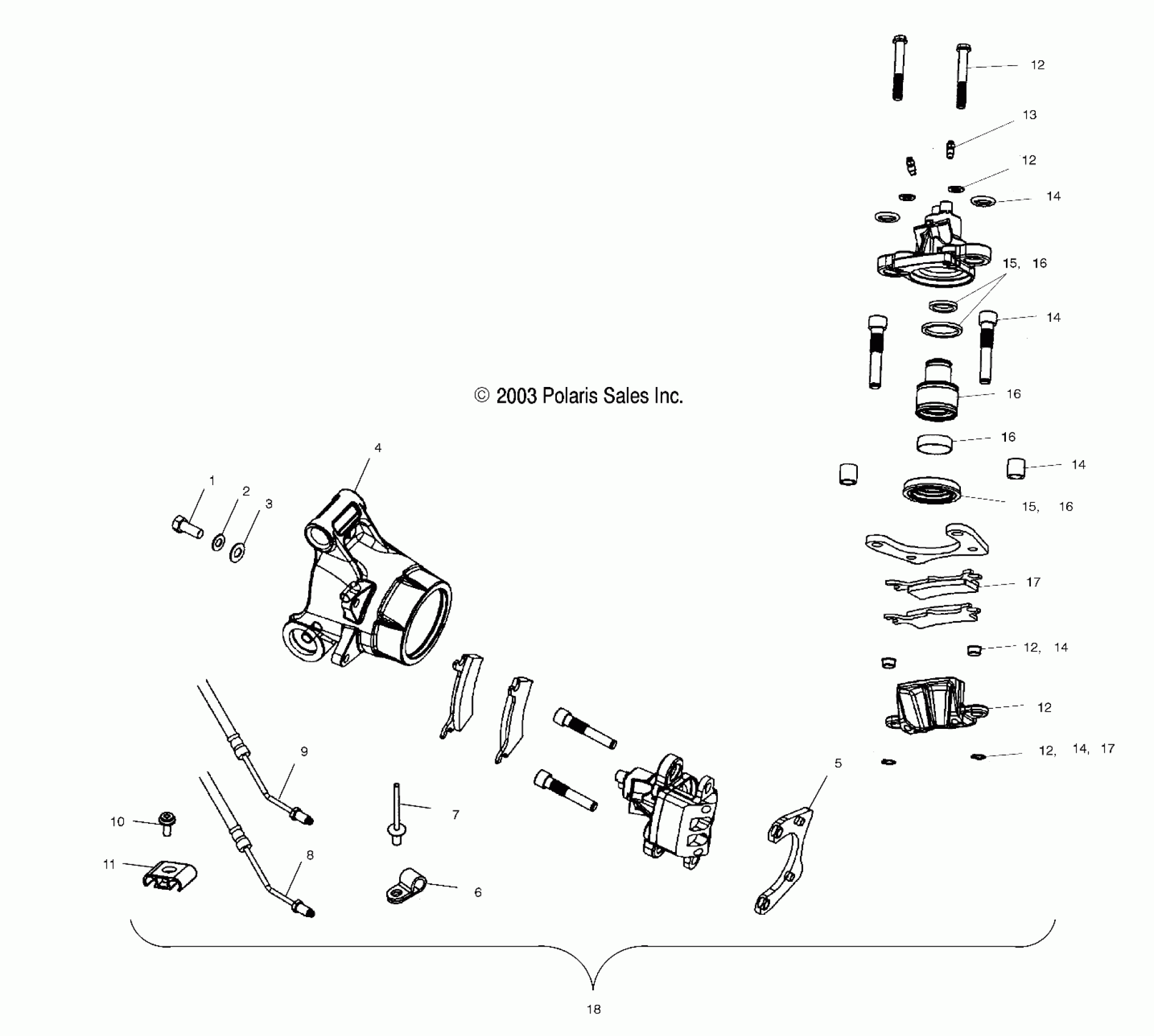

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG REAR CALIPER - A04CH50AA/AC/AE/AG (4986068606B07) Diagram

#

Description
Price

1

SCREW

7512365

$1.19

2

WASHER, SPRING LOCK

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

CARRIER, BEARING

----

Unavailable

5

Bracket, Caliper

1910529

$48.56

6

Clamp, Nylon

7080960

$4.76

7

Rivet

7621462

$1.19

8

Line, Brake, Rear, Caliper

1910630

$109.99

9

Line, Brake, Rear

1910631

$93.08

10

Screw

7517756

$1.19

11

Clip, Retaining, Dual

7670126

$4.76

12

Kit, Anvil Body

2201873

$146.83

12

Kit, Anvil Body

2201873

$146.83

12

Kit, Anvil Body

2201873

$146.83

12

Kit, Anvil Body

2201873

$146.83

12

Kit, Anvil Body

2201873

$146.83

13

Fitting,Bleed, Compact

1910538

$10.32

14

Kit, Slide Bolt

2201870

$64.75

14

Kit, Slide Bolt

2201870

$64.75

14

Kit, Slide Bolt

2201870

$64.75

14

Kit, Slide Bolt

2201870

$64.75

14

Kit, Slide Bolt

2201870

$64.75

15

Kit, Seal

2201872

$71.10

15

Kit, Seal

2201872

$71.10

16

Kit, Piston and Seal

2201869

$121.41

16

Kit, Piston and Seal

2201869

$121.41

16

Kit, Piston and Seal

2201869

$121.41

16

Kit, Piston and Seal

2201869

$121.41

17

Kit, Brake Pad

2202414

$28.56

17

Kit, Brake Pad

2202414

$28.56

18

Asm., Caliper

1910690

$288.87
