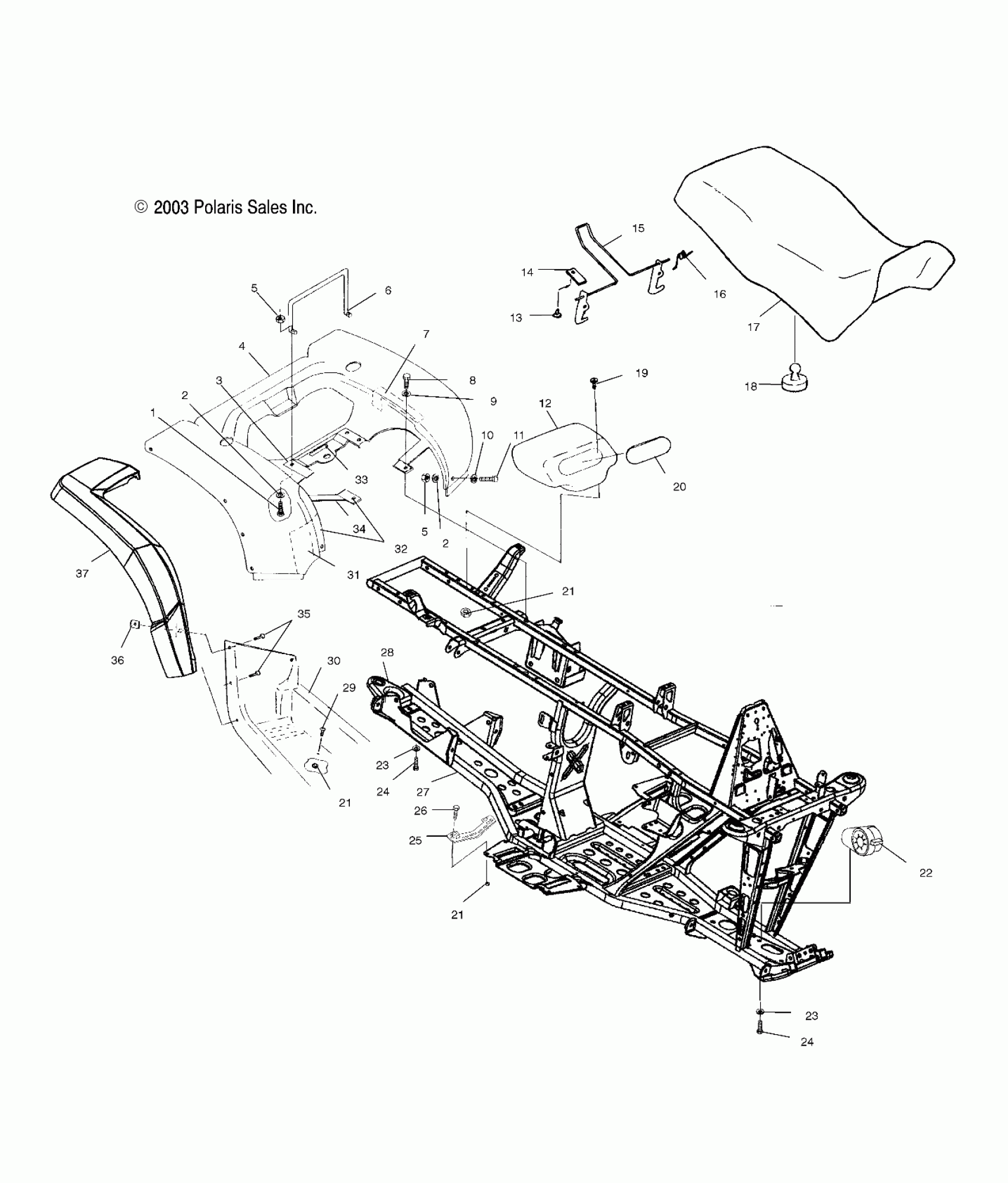

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG REAR CAB AND SEAT - A04CH50AA/AC/AE/AG (4986088608A03) Diagram

#

Description
Price

1

Bolt

7511930

$2.38

2

WASHER

7555792

$4.76

2

WASHER

7555792

$4.76

3

Foil, Rear Cab, Rear

5811107

Unavailable

4

Cab, Rear, Camo Green Metallic [AA]

5432117-400

Unavailable

4

Cab, Rear, New Break-Up [AC]

5435164-455

$529.99

4

Cab, Rear, Sonic Blue [AG]

5432117-341

Unavailable

4

Cab, Rear, Med Yellow [AE]

5432117-053

Unavailable

5

Nut, Nylok

7541925

$0.79

5

Nut, Nylok

7541925

$0.79

6

Retainer, Seat Latch

5224592

Unavailable

7

Foil, Tape, Rear Cab

5811308

$12.94

8

SCREW

7512242

$2.38

9

Washer, Flat

7555859

$1.19

10

WASHER

7556034

$2.38

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.17

13

RIVET

7621403

$1.19

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

LATCH, SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

Asm., Seat, Black

2683222-070

$445.22

17

Covering, Seat, Black

2682958-070

$149.75

17

Foil, Seat Base, Large

5811104

Unavailable

17

Foil, Seat Base, Small

5811105

$9.84

18

BUMPER-RUBBER

5412067

$3.97

19

Screw

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Nut, Nylok

7542122

$1.19

21

Nut, Nylok

7542122

$1.19

21

Nut, Nylok

7542122

$1.19

22

FRONT HOUSING [SEE FRONT HOUSING PG. C12 FOR DETAILS]

----

Unavailable

23

Washer, Spring Lock

7552603

$0.79

23

Washer, Spring Lock

7552603

$0.79

24

Screw

7512492

$1.19

24

Screw

7512492

$1.19

25

Spacer, Footwell

5432280

$8.73

26

SCREW

7517377

$4.76

27

Frame, Main, Black

1014322-067

Unavailable

28

Decal, Hitch

7170911

Unavailable

29

Screw

7517376

$0.79

30

Footwell, Black, LH

5432221-070

$230.70

30

Footwell, Black, RH

5433219-070

$230.70

31

Foil, Foam, Rear Fender

5811111

Unavailable

32

Foil, Rear Cab, Front

5811106

Unavailable

33

Decal, Carb/Filter Information

7079902

Unavailable

34

Foil, Foam

5811087

Unavailable

35

SCREW

7512232

$1.19

36

NUT, U-TYPE SPEED

7670057

$1.19

37

Guard, Mud, Rear, LH

5434704-070

Unavailable

37

Guard, Mud, Rear, RH

5434705-070

Unavailable
