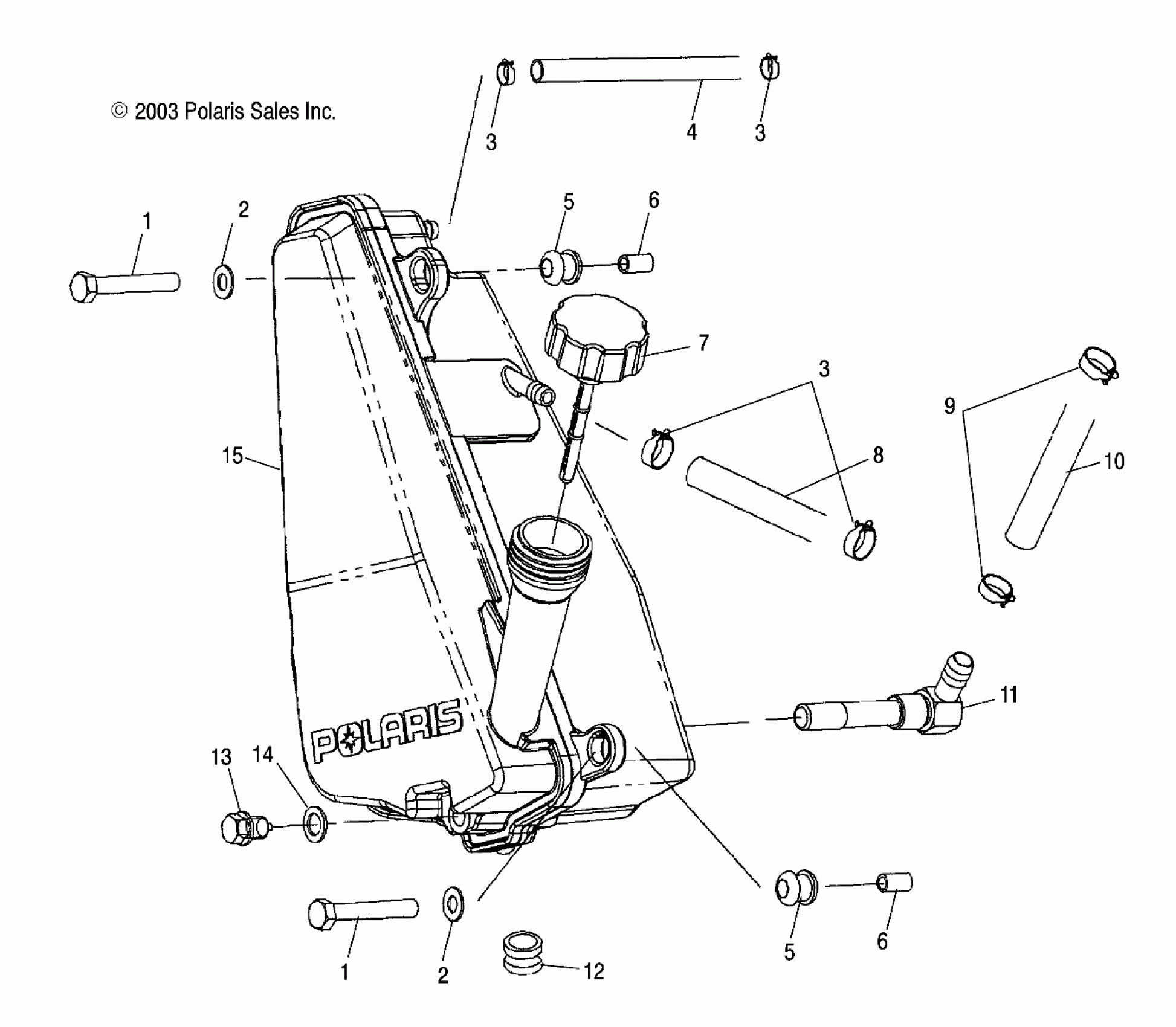

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG OIL TANK - A04CH50AA/AC/AE/AG (4987288728B04) Diagram

#

Description
Price

1

SCREW

7512242

$2.39

1

SCREW

7512242

$2.39

2

Washer, Flat

7558301

$1.49

2

Washer, Flat

7558301

$1.49

3

Clamp

7080699

$1.59

3

Clamp

7080699

$1.59

3

Clamp

7080699

$1.59

4

Line, Breather

5411668

Unavailable

5

Grommet

5410828

$3.99

5

Grommet

5410828

$3.99

6

BUSHING, MOUNTING

5333204

$26.39

6

BUSHING, MOUNTING

5333204

$26.39

7

Dipstick

5434574

$31.99

8

Hose, Breather

8450073-34

Unavailable

9

Clamp

7081026

$7.99

10

Line

8450096-25

Unavailable

11

SCREEN, OIL FILTER, 90 DEGREE

7052326

$39.99

12

Grommet

5411042

Unavailable

13

PLUG

7051524

$27.99

14

Washer, Nylon

5850135

$3.19

15

Tank, Oil

1261176

Unavailable
