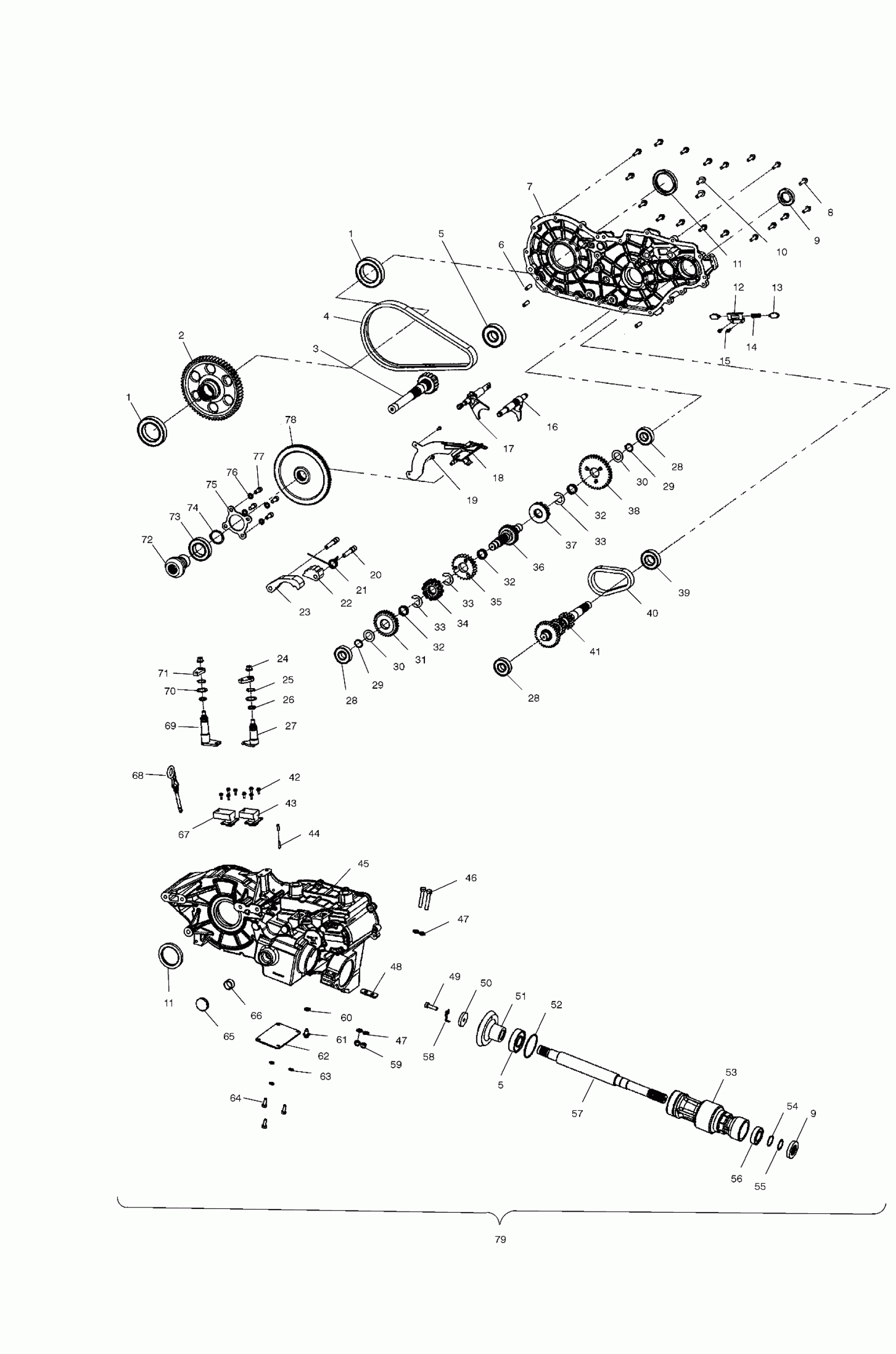

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG GEARCASE - A04CH50AA/AC/AE/AG (4986088608C13) Diagram

#

Description
Price

1

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

1

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

2

Shaft, 60T

3233670

Unavailable

3

Shaft, Center Drive

3234051

$159.52

4

Chain, Silent

3233430

Unavailable

5

BEARING

3233020

$47.99

5

BEARING

3233020

$47.99

6

PIN, DOWEL

3233247

$7.19

7

Gearcase, LH

3234041

Unavailable

8

Screw

3233026

$6.46

9

Seal, Triple Lip

3233788

$31.99

9

Seal, Triple Lip

3233788

$31.99

10

Screw

3233252

$5.27

11

SEAL, TRIPLE LIP

3233878

$32.37

11

SEAL, TRIPLE LIP

3233878

$32.37

12

Bracket

3233309

$20.63

13

Pin, Interlock

3233308

Unavailable

14

Spring

3233189

Unavailable

15

Screw

3233747

Unavailable

16

Fork, Shift, Spring Loaded, Low

3233775

Unavailable

17

Fork, Shift, High/Rev.

3233664

Unavailable

18

Deflector, Oil

3233669

$7.94

19

Screw

3233282

Unavailable

20

PIN

3233432

$7.19

21

SPRING, TORSION

3233431

$23.99

22

CAM, CHAIN TENSIONER

3233434

$12.79

23

SHOE, CHAIN TENSIONER

3233433

$27.99

24

NUT, LOCK

3233961

$2.79

25

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

26

O-Ring

3233548

$27.99

27

Shaft, Shift

3233661

Unavailable

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

29

Ring, Retaining

3233177

$6.39

29

Ring, Retaining

3233177

$6.39

30

WASHER, THRUST

3233176

$9.59

30

WASHER, THRUST

3233176

$9.59

31

Gear, 30T

3233744

Unavailable

32

BEARING, NEEDLE

3233718

$35.99

32

BEARING, NEEDLE

3233718

$35.99

32

BEARING, NEEDLE

3233718

$35.99

33

Ring, Retaining

3233720

$9.59

33

Ring, Retaining

3233720

$9.59

33

Ring, Retaining

3233720

$9.59

34

Dog, Engagement, Low

3233743

Unavailable

35

Sprocket, 24T

3233719

$109.27

36

Shaft, Reverse, 29T

3233742

$174.60

37

Dog, Engagement, Low

3233732

$169.98

38

Gear, 36T

3233745

Unavailable

39

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

40

Chain, Silent

3233036

Unavailable

41

Shaft, Input

3233571

Unavailable

42

SCREW

3233749

$5.59

43

Switch, 2 Position

3234001

Unavailable

44

Vent, Tube

3233037

Unavailable

45

Gearcase, RH

3233776

$984.99

46

Screw

3233442

$2.23

47

Washer

3233054

$6.46

47

Washer

3233054

$6.46

48

Spacer

3233779

$3.27

49

Screw

3233351

$1.99

50

Washer, Steel

3233352

$1.83

51

Gear, 31T

3233476

Unavailable

52

O-Ring

3233302

Unavailable

53

Tube, Snorkel

3233750

$189.59

54

Spacer

3233355

$2.63

55

RING, RETAINING

3233306

$4.79

56

Bearing, Ball

3233305

$31.99

57

Shaft, Drive

3233446

Unavailable

58

Bolt, Lock

3233444

$2.39

59

Nut, Lock

3233291

$3.03

60

Washer

3233254

$7.99

61

Plug

3233777

$34.99

62

Plate, Cover

3233294

$11.59

63

Washer, Lock

3233295

$1.99

64

Screw

3233296

Unavailable

65

Plug

3234047

$7.43

66

Bearing

3233292

$31.99

67

Switch, 3 Position

3234002

$174.99

68

Dipstick

3233475

Unavailable

69

Shaft, Shift, Low

3233774

Unavailable

70

Washer, Thrust

3233040

$9.59

71

Bellcrank, HLR

3233153

$27.99

72

Pinion, 16T

3233365

Unavailable

73

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

74

RING, RETAINING

3233364

$6.39

75

Cover, Bearing

3233263

Unavailable

76

Washer, Lock

3233051

Unavailable

77

Screw

3233262

$1.83

78

Gear, 100T

3233360

Unavailable

79

Asm., Gearcase

1341444

$2,434.99
