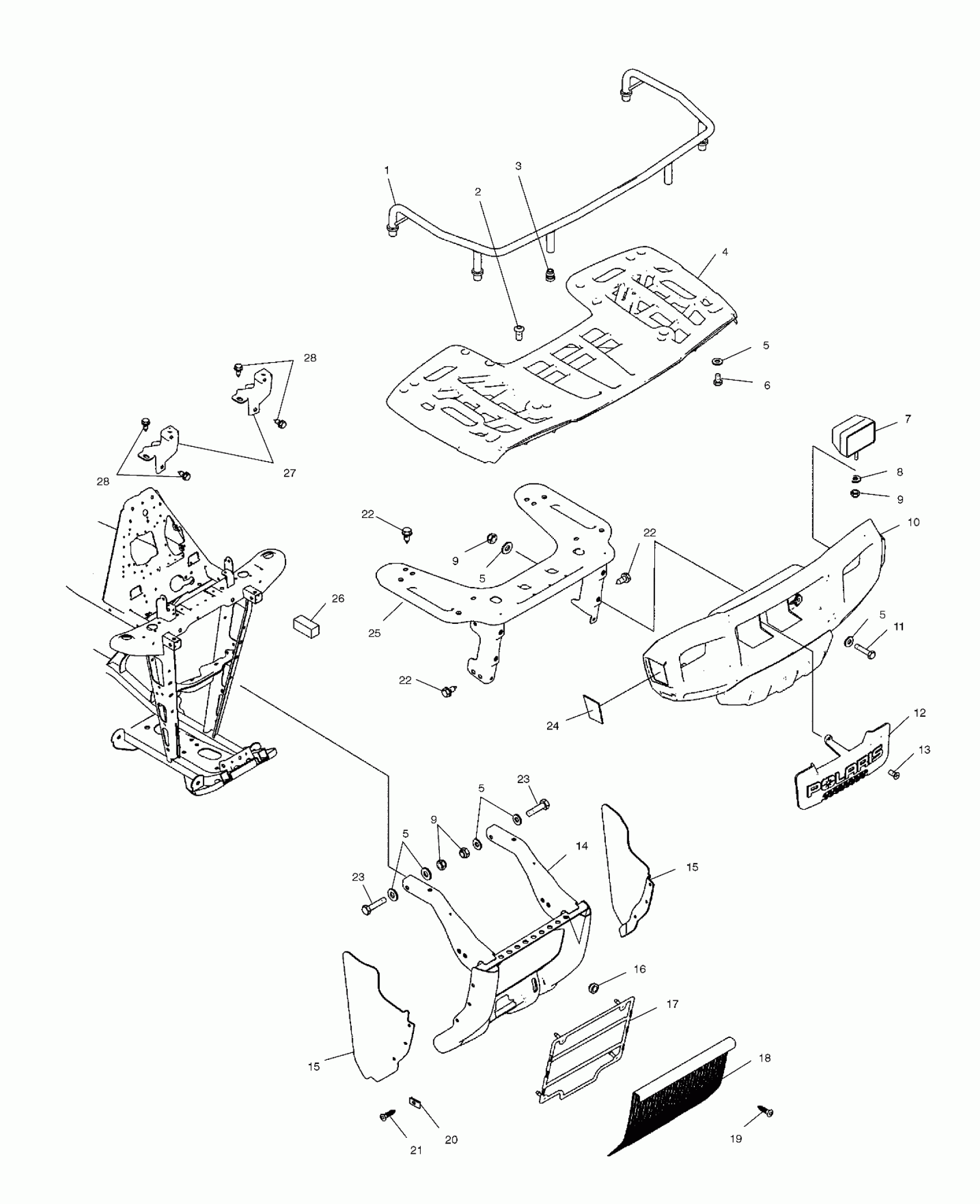

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG FRONT RACK AND BUMPER MOUNTING - A04CH50AA/AC/AE/AG (4986088608A07) Diagram

#

Description
Price

1

Extender, Front Rack

1040526-385

Unavailable

1

Extender, Front Rack [AC]

1040526-067

Unavailable

2

SCREW

7517685

$1.59

3

Plug

7081085

$7.27

4

Rack, Front, Black [If built before 2/03/03]

5434697-070

$230.16

4

Rack, Front, Black [If built after 2/03/03]

5435240-070

$230.16

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

Screw

7512307

$3.97

7

Headlight

2431017

Unavailable

7

Bulb, Replacement, 27W

4030059

Unavailable

8

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

9

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

NUT-5/16-18 NYLOK-Y

7542324

$0.79

10

Asm., Bumper, Front, Black [Incl. Warning Decal]

2632758-070

Unavailable

11

Screw

7515306

Unavailable

12

Panel

5434699-070

Unavailable

13

SCREW

7512094

$1.59

14

Guard, Brush

1013366-067

Unavailable

15

Shield, Side, Radiator, LH

5434314

$42.74

15

Shield, Side, Radiator, RH

5434315

Unavailable

15

Shield, Side, Radiator, LH

5434314

$42.74

15

Shield, Side, Radiator, RH

5434315

Unavailable

16

Grommet

5410774

$3.97

17

Cover, Radiator

5435046

$52.60

18

Grill

5247137-067

$64.99

19

Screw

7522021

Unavailable

20

Nut, U-Type

7670094

$5.56

21

Screw

7512097

$3.97

22

SCREW

7515399

$1.19

22

SCREW

7515399

$1.19

22

SCREW

7515399

$1.19

23

Screw

7512329

$3.97

23

Screw

7512329

$3.97

24

Decal, Reflector, Amber, LH

7171474

Unavailable

24

Decal, Reflector, Amber, RH

7171475

Unavailable

25

Support, Front Rack

1014020-067

$199.98

26

PLUG, FRAME

5810467

Unavailable

27

Support, Front Rack, LH

1014261-067

Unavailable

27

Support, Front Rack, RH

1014262-067

Unavailable

28

SCREW

7512232

$1.19

28

SCREW

7512232

$1.19
