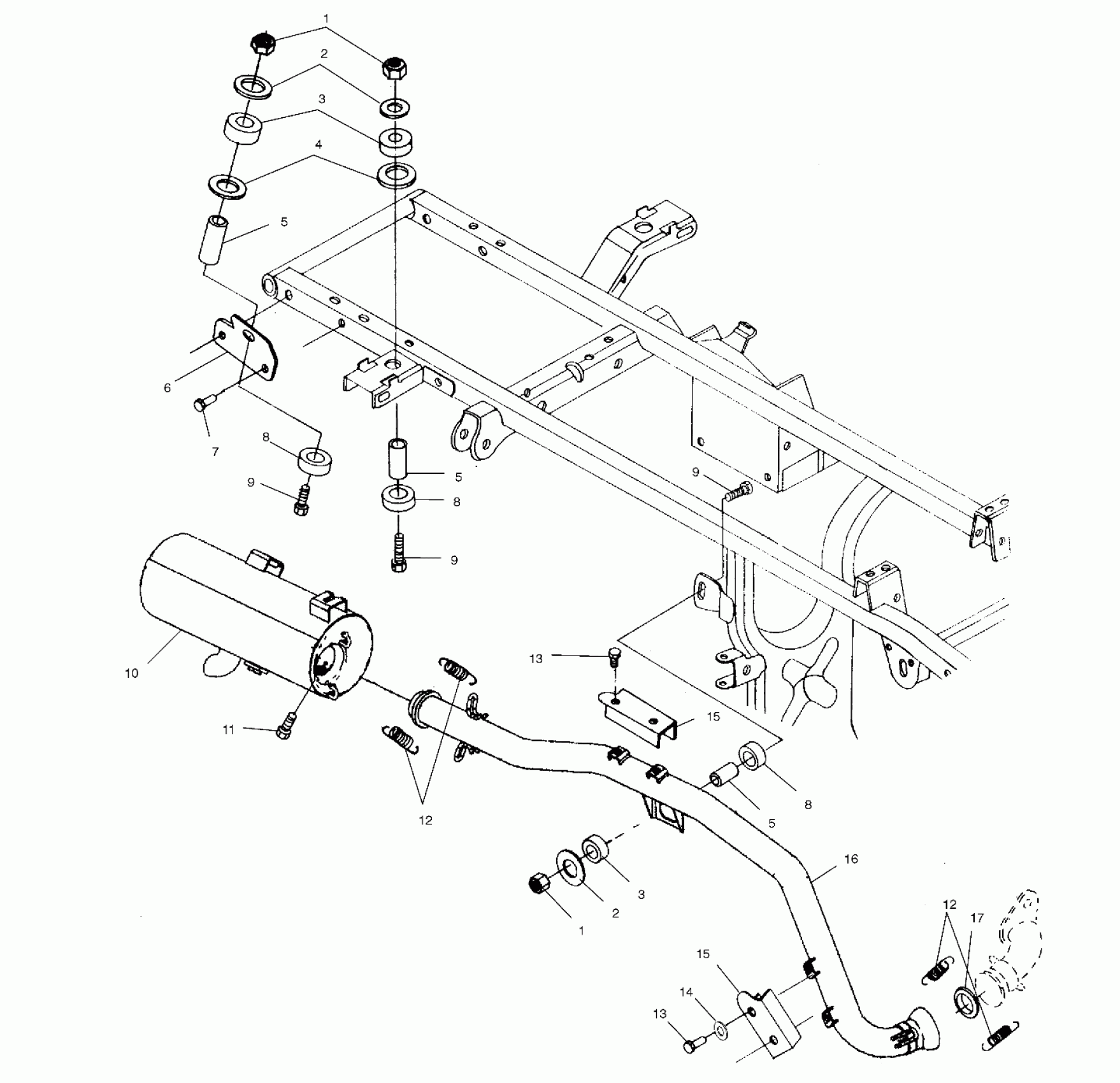

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG EXHAUST SYSTEM - A04CH50AA/AC/AE/AG (4986068606A11) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Washer

7555863

$2.38

5

BUSHING

5010192

$6.35

5

BUSHING

5010192

$6.35

5

BUSHING

5010192

$6.35

6

BRACKET, SILENCER, FRAME

5241663

$10.51

7

BOLT, CARRIAGE

7515316

$2.38

8

Dampener, Vibration

5410241

$5.22

8

Dampener, Vibration

5410241

$5.22

8

Dampener, Vibration

5410241

$5.22

9

BOLT, CARRIAGE

7515316

$2.38

9

BOLT, CARRIAGE

7515316

$2.38

9

BOLT, CARRIAGE

7515316

$2.38

10

Silencer, Exhaust

1261042-029

$374.99

11

BOLT

7512666

$2.38

12

SPRING, EXHAUST

7041804

$8.89

12

SPRING, EXHAUST

7041804

$8.89

13

Screw

7515197

$1.19

13

Screw

7515197

$1.19

14

Washer

7555935

$2.38

15

Shield, Heat, Exhaust

5241678

Unavailable

15

Shield, Heat, Exhaust

5241678

Unavailable

16

Pipe, Exhaust

1261246-029

Unavailable

17

Seal, Exhaust

5243518

$28.32
