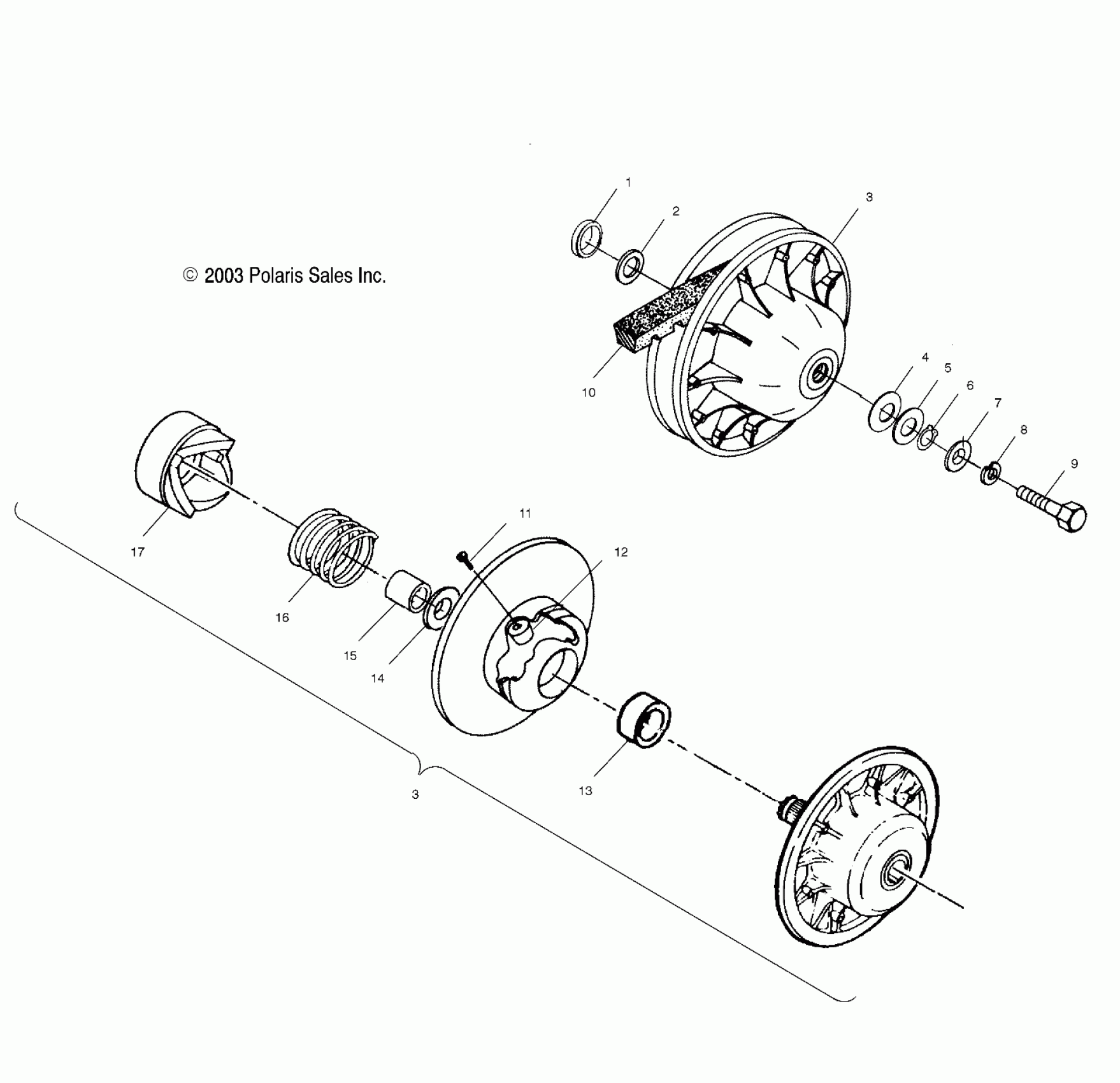

Polaris A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG DRIVEN CLUTCH - A04CH50AA/AC/AE/AG (4987288728C07) Diagram

#

Description
Price

1

Spacer, Driven

5010409

Unavailable

2

BUSHING

7556120

Unavailable

3

Asm., Driven Clutch, Braking [Incl. 11-15]

1322184

$739.99

3

Asm., Driven Clutch, Braking [Incl. 11-15]

1322184

$739.99

4

Washer

7556203

Unavailable

5

Bushing

7556010

Unavailable

6

Ring, Retaining

7710461

Unavailable

7

Washer, Domed

5220646

$2.39

8

WASHER, SPRING LOCK

7552901

$1.49

9

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

10

Belt, Drive

3211095

$67.99

11

Screw

7517323

$13.59

12

Roller, Taper

1321977

$31.99

13

Bearing

3585710

$19.99

14

WASHER-2.06X2.62X.105-Y

5211115

$3.99

15

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

16

Spring

7041635

$47.99

17

Ramp, Stationary

5131674

$83.99
