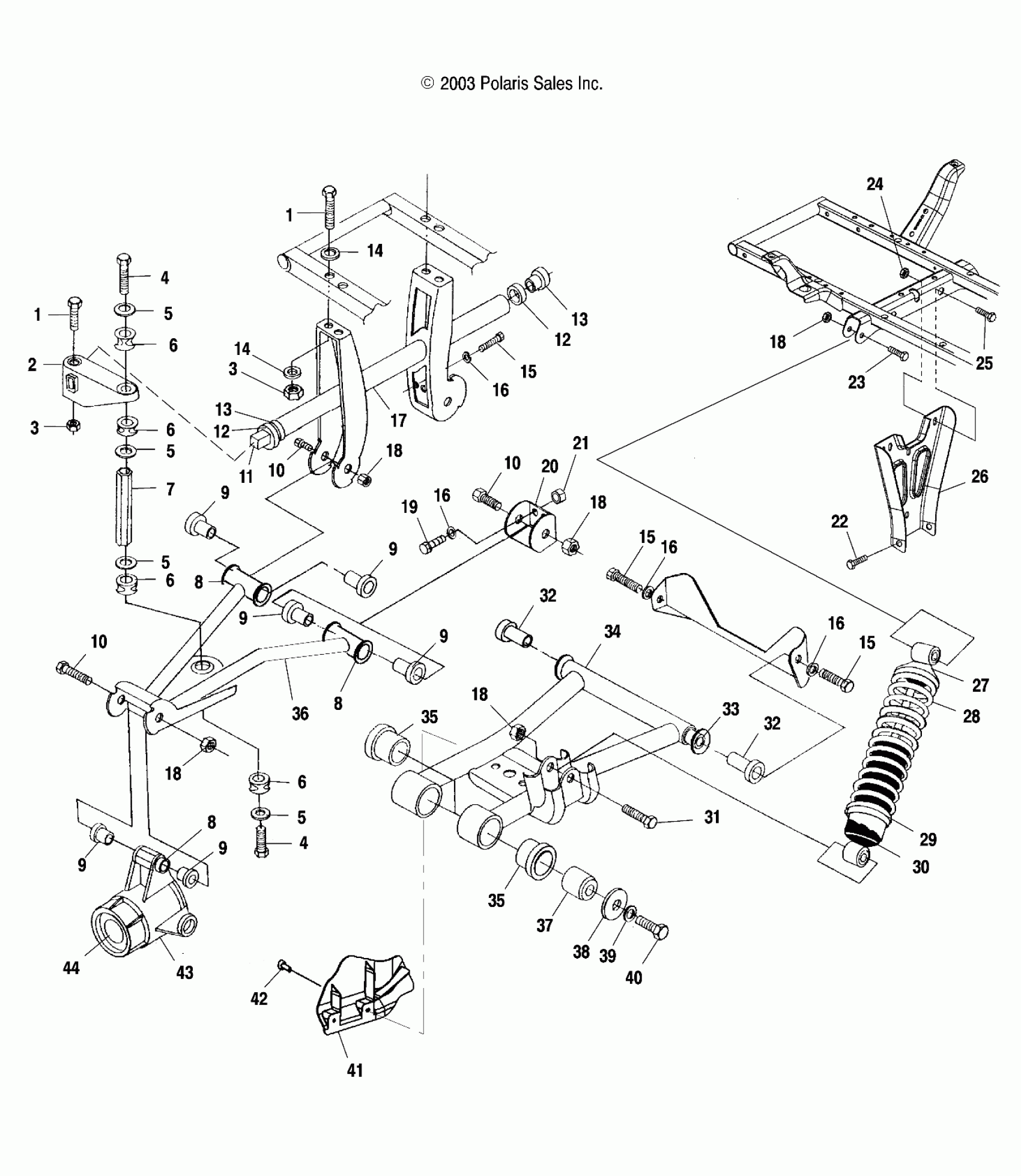

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV REAR SUSPENSION - A04CH42AQ/AR/AS/AT/AV (4987258725C09) Diagram

#

Description
Price

1

Bolt

7512329

$3.99

1

Bolt

7512329

$3.99

2

Arm, Stabilizer Bar

1580107-067

$62.92

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

SCREW

7517231

$7.19

4

SCREW

7517231

$7.19

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

7

ROD, LINKAGE, STABILIZER

5020827

$47.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

10

SCREW

7515472

$2.39

10

SCREW

7515472

$2.39

10

SCREW

7515472

$2.39

11

Bar, Stabilizer Tube

5334114-067

$111.33

12

Washer

7555939

Unavailable

12

Washer

7555939

Unavailable

13

Bushing, Stabilizer Tube

5434549

$8.48

13

Bushing, Stabilizer Tube

5434549

$8.48

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

Support, Stabilizer

1541802-067

Unavailable

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

Screw

7517878

$10.39

20

Bracket, A-Arm Pivot

5247345

$64.99

21

Nut

7547180

$2.39

22

Screw

7517844

$5.16

23

Screw

7515433

$1.59

24

Nut, Flange

7542321

$1.49

25

Bolt

7515321

$1.49

26

Support, Transmission, Upper

5221624-067

$79.99

27

Retainer, Spring

5630885

$10.03

28

Spring, Compression, Rear (If built after 6/16/03)

7042311-067

$94.99

28

Spring, Compression, Rear (If built before 6/16/03)

7041453-067

$94.99

29

CAM, ADJUSTING, SPRING

5631014

$31.99

29

Sleeve, Shock Protector (If built after 6/01/04)

5435273

Unavailable

29

Sleeve, Shock Protector (If built before 6/01/04)

5433551

$39.99

30

Shock, Rear

7041959

$123.99

31

Screw

7515415

$1.49

32

Bushing, A-Arm, Long

5434551

$5.01

32

Bushing, A-Arm, Long

5434551

$5.01

33

Shaft, A-Arm

5133806

$30.79

34

Arm, Control, Lower, LH (AT)(AV)

1014174-067

Unavailable

34

Arm, Control, Lower, RH (AT)(AV)

1014175-067

Unavailable

34

Arm, Control, Lower, LH (AQ)(AR)(AS)

1014174-293

Unavailable

34

Arm, Control, Lower, RH (AQ)(AR)(AS)

1014175-293

Unavailable

35

Bushing, Control, Lower

5434550

$4.62

35

Bushing, Control, Lower

5434550

$4.62

36

Arm, Control, Upper, LH

1014320-067

$95.99

36

Arm, Control, Upper, RH

1014321-067

$95.99

37

Bushing, Bearing Carrier

5631142

$23.16

38

WASHER, FLAT

7555740

$1.59

39

WASHER-LOCK, 7/16-B

7552614

$1.59

40

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

41

Shield, Rear, LH

5435008-070

$23.99

41

Shield, Rear, RH

5435009-070

$23.99

42

Screw

7512084

$1.49

43

Carrier, Wheel Bearing [RH]

5133664

$111.96

43

Carrier, Wheel Bearing, LH

5133663

$111.96

44

Bearing, Wheel Carrier

3585502

Unavailable
