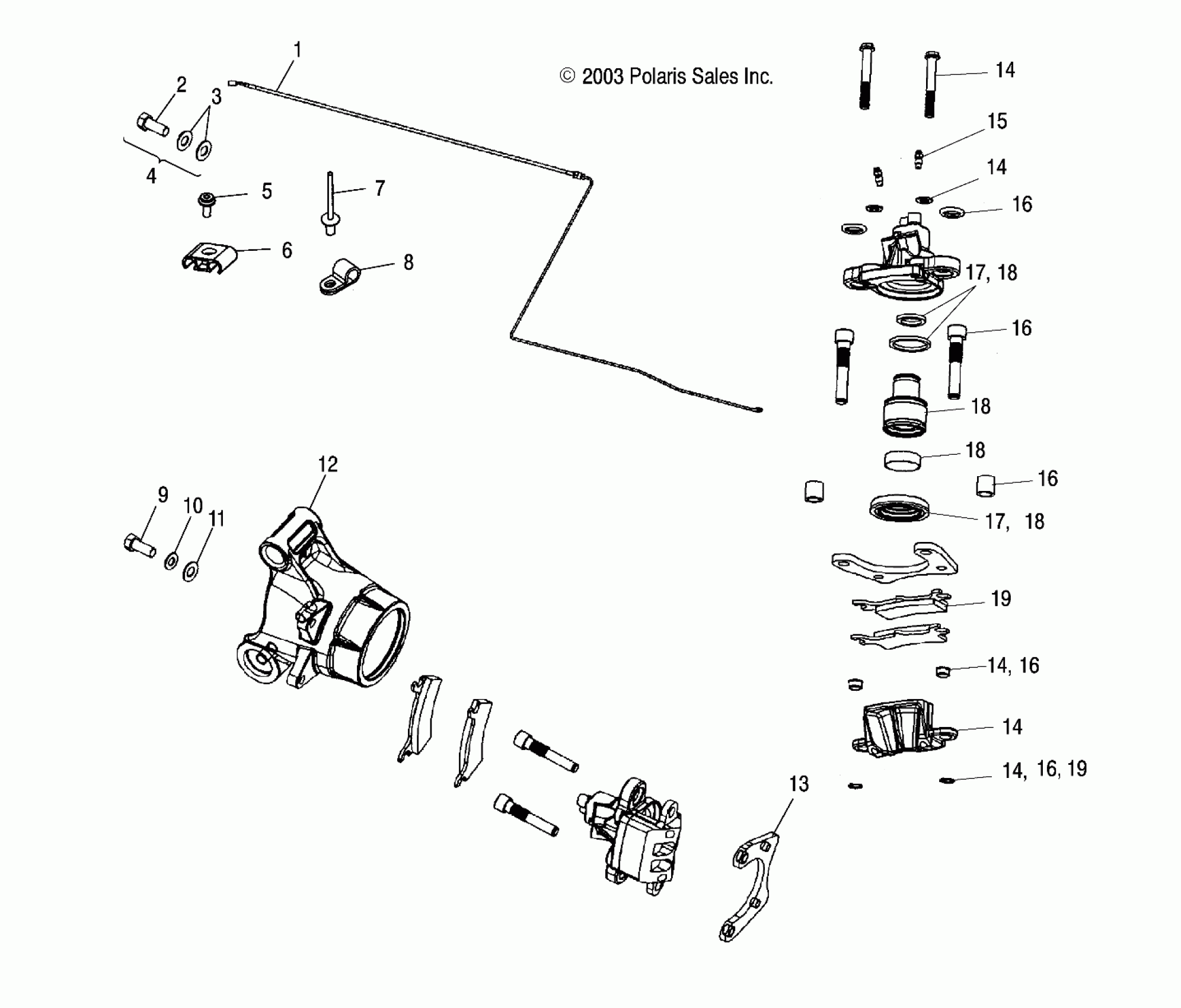

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV REAR CALIPER - A04CH42AQ/AR/AS/AT/AV (4987258725B09) Diagram

#

Description
Price

-

Asm., Caliper

1910690

$259.99

1

Line, Brake, Rear, Caliper

1910760

$89.03

2

BOLT, BANJO

1910499

$5.59

3

Seal

5410988

$4.84

4

Kit, Brake Line, From J/B, Rear (Incl. 1-3)

2202660

$109.99

5

Screw

7517756

$1.49

6

Clip, Retaining, Dual

7670126

$4.79

7

Rivet

7621462

$1.49

8

Clamp, Nylon

7080960

$4.79

9

SCREW

7512365

$1.49

10

WASHER, SPRING LOCK

7552901

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

CARRIER, BEARING

-------

Unavailable

13

Bracket, Caliper

1910529

$47.99

14

Kit, Anvil Body

2201873

$147.99

14

Kit, Anvil Body

2201873

$147.99

14

Kit, Anvil Body

2201873

$147.99

14

Kit, Anvil Body

2201873

$147.99

14

Kit, Anvil Body

2201873

$147.99

15

FITTING, BLEED, COMPACT

1910538

$10.39

16

Kit, Slide Bolt

2201870

$63.99

16

Kit, Slide Bolt

2201870

$63.99

16

Kit, Slide Bolt

2201870

$63.99

16

Kit, Slide Bolt

2201870

$63.99

16

Kit, Slide Bolt

2201870

$63.99

17

Kit, Seal

2201872

$63.99

17

Kit, Seal

2201872

$63.99

18

Kit, Piston and Seal

2201869

$119.99

18

Kit, Piston and Seal

2201869

$119.99

18

Kit, Piston and Seal

2201869

$119.99

18

Kit, Piston and Seal

2201869

$119.99

19

Kit, Brake Pad

2202414

$31.99

19

Kit, Brake Pad

2202414

$31.99
