Description

Price

1

Bolt

7511930

$2.39

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Foil, Rear Cab, Rear

5811107

$6.46

4

Cab, Rear, Camo Green Metallic [AQ]

5432117-400

Unavailable

4

Cab, Rear, Break-Up [AT]

5435164-455

$529.99

4

Cab, Rear, Shadowgrass [AV]

5435164-456

Unavailable

4

Cab, Rear, Sonic Blue Met. (AS)

5432117-341

Unavailable

4

Cab, Rear, Med. Yellow (AR)

5432117-053

Unavailable

5

Nut, Nylok

7541925

$1.49

5

Nut, Nylok

7541925

$1.49

6

Retainer, Seat Latch

5224592

Unavailable

7

Foil, Tape, Rear Cab

5811308

$12.79

8

SCREW

7512242

$2.39

9

Washer, Flat

7555859

$1.49

10

WASHER

7556034

$2.39

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.59

13

RIVET

7621403

$1.49

14

BRACKET, LEVER RETAINER

5211033

$29.25

15

LATCH, SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

Asm., Seat, Black [AQ](AR)(AS)

2683222-070

$424.98

17

Covering, Seat, Black

2682958-070

$141.65

17

Asm., Seat, Black w/Gold Polaris [AT][AV]

2683418-070

$293.65

18

BUMPER-RUBBER

5412067

$3.99

19

Screw

7517375

Unavailable

20

Cover, Tool Box

5431787

Unavailable

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

22

FRONT HOUSING [SEE FRONT HOUSING PG. D1 FOR DETAILS]

-------

Unavailable

23

Washer, Spring Lock

7552603

$1.49

23

Washer, Spring Lock

7552603

$1.49

24

Screw

7512492

$1.49

24

Screw

7512492

$1.49

25

Spacer, Footwell

5432280

$8.79

26

SCREW

7517377

$4.79

27

Frame, Main, Black

1014189-067

$879.98

28

Decal, Hitch

7170911

Unavailable

29

Screw

7517376

Unavailable

30

Footwell, Black, LH

5432221-070

$230.70

30

Footwell, Black, RH

5433219-070

$230.70

31

Foil, Foam, Rear Fender

5811111

$32.37

32

Foil, Rear Cab, Front

5811106

$8.89

33

Decal, Carb/Filter Information

7079902

Unavailable

34

Foil, Foam

5811087

Unavailable

35

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

36

SCREW

7512232

$1.49

37

WSHR-.813X.406X.105-Y

7555832

$2.39

38

NUT, U-TYPE SPEED

7670057

$1.49

39

Guard, Mud, Rear, LH

5434704-070

Unavailable

39

Guard, Mud, Rear, RH

5434705-070

Unavailable

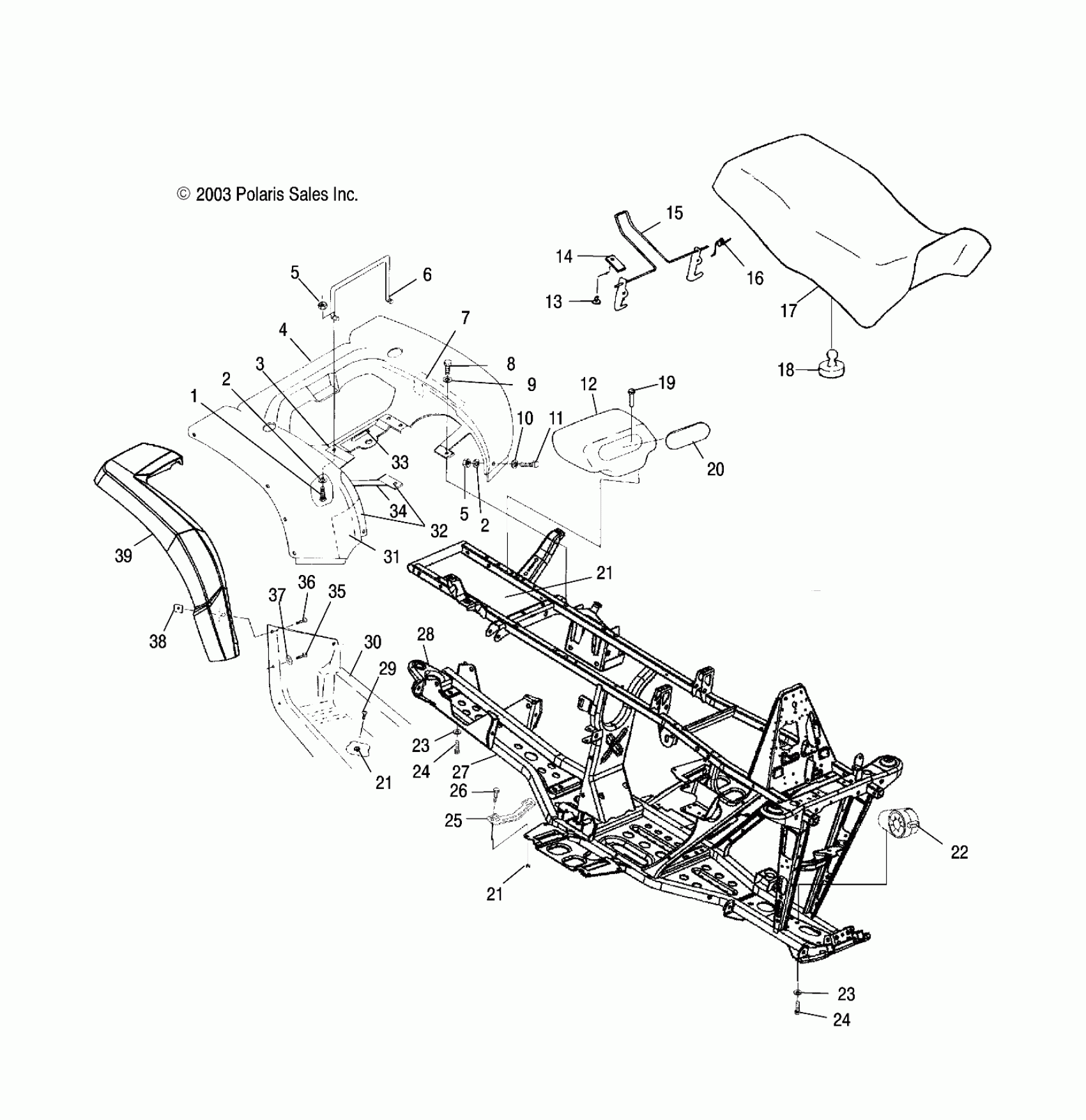

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV REAR CAB AND SEAT - A04CH42AQ/AR/AS/AT/AV (4987258725A03) Diagram
