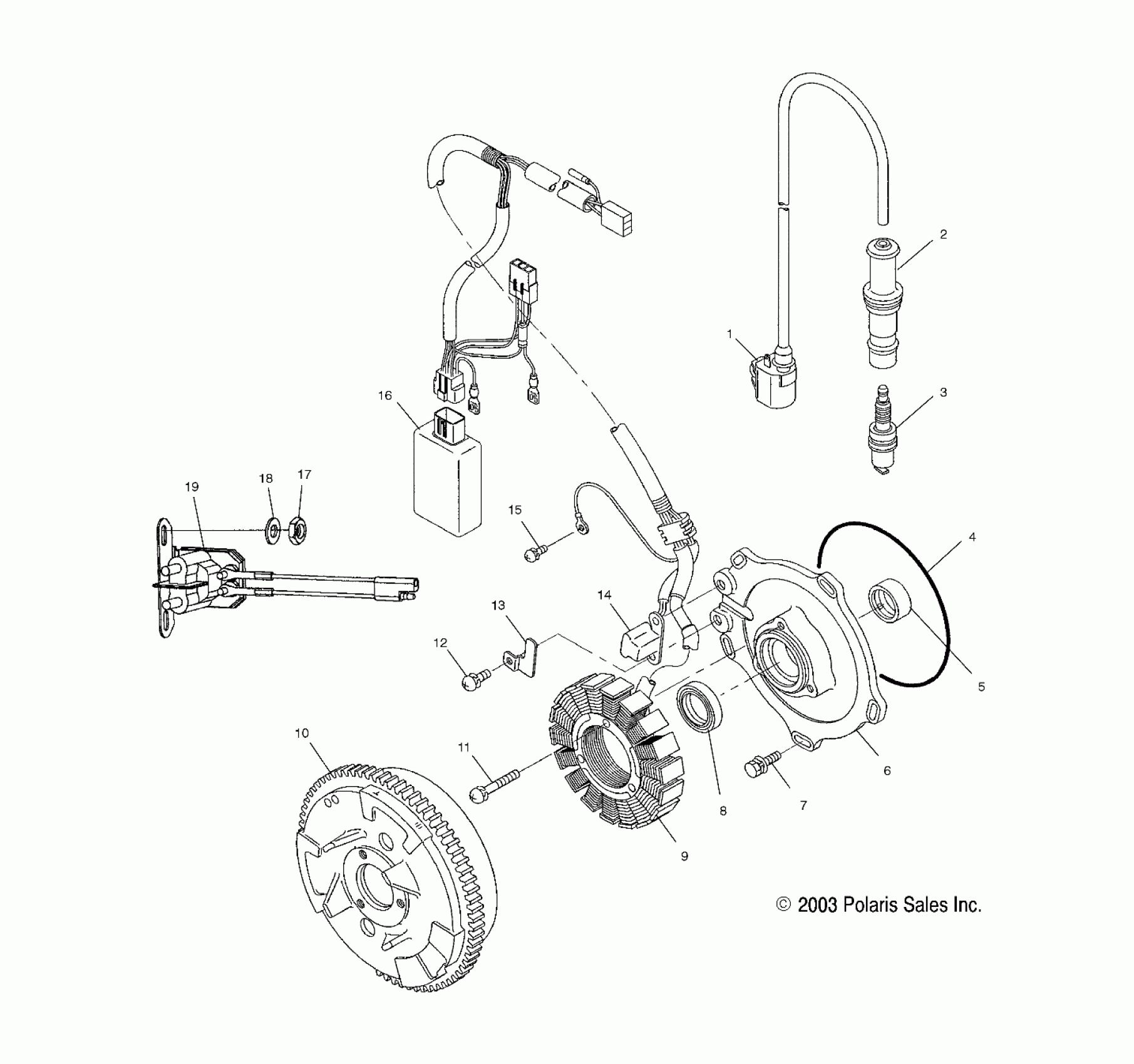

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13) Diagram

#

Description
Price

1

Coil, Ignition

3089252

Unavailable

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark

3070175

$3.99

4

O-RING

3084978

$35.99

5

Metal, Bearing

3084972

Unavailable

6

PLATE

3089248

Unavailable

6

Asm., Plate [Incl. 5,8-15]

3089253

$551.59

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13]

3089249

Unavailable

10

Flywheel w/Ring Gear

3089247

Unavailable

11

Screw and Washer

3089251

$5.59

12

Screw and Washer

3084976

Unavailable

13

BAND, PULSE

3089250

Unavailable

14

COIL, PULSER

3089254

$103.99

15

Screw and Washer

3081256

$3.19

16

CDI System

3089238

$375.99

17

Nut

7547283

$3.19

18

WASHER, SPRING LOCK

7552801

$1.59

19

Switch, Magnetic

4010930

$60.70
